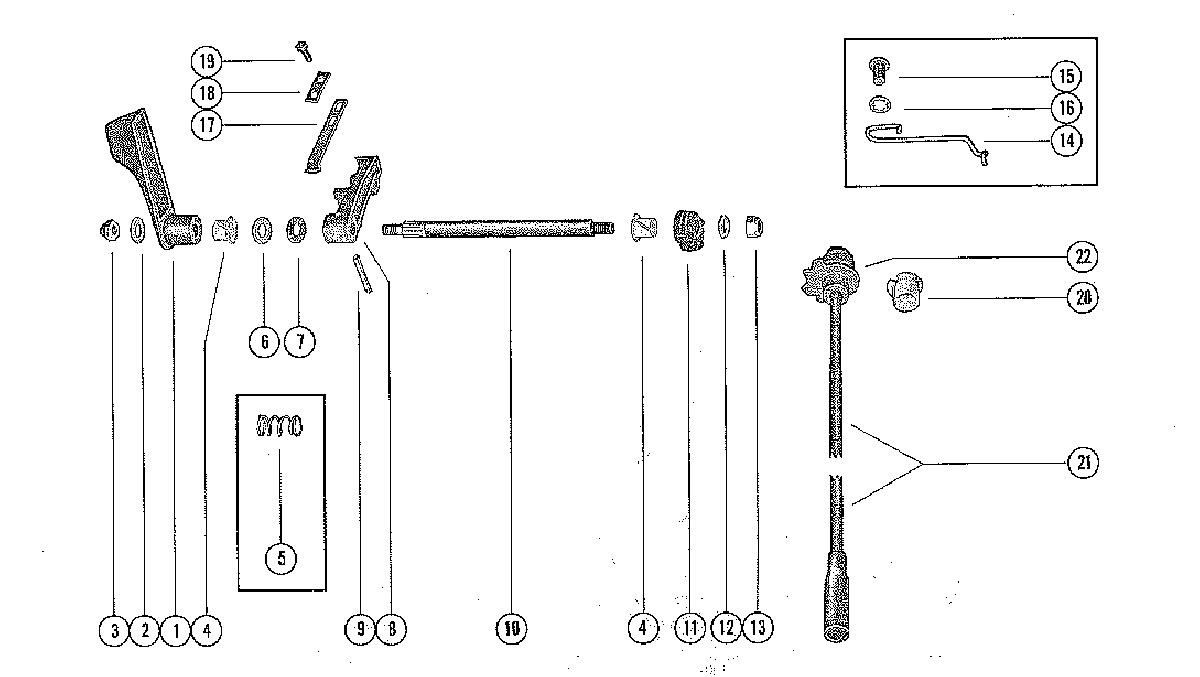

SHIFT CONTROL LINKAGE для Mercury - 60 1916139 THRU 2529894

  • №
    Артикул
    Название
  • 1
    59107 HANDLE, SHIFT CONTROL
    HANDLE, SHIFT CONTROL
  • 2
    12-29245 WASHER, SHIFT CONTROL SHAFT
    WASHER, SHIFT CONTROL SHAFT
  • 3
    11-826709109 NUT, SHIFT HANDLE TO SHIFT CONTROL SHAFT
    NUT, SHIFT HANDLE TO SHIFT CONTROL SHAFT
  • 4
    23-30678 BUSHING, NYLON - SHIFT CONTROL SHAFT
    BUSHING, NYLON - SHIFT CONTROL SHAFT
  • 5
    24-30817 SPRING, TENSION - SHIFT CONTROL SHAFT
    SPRING, TENSION - SHIFT CONTROL SHAFT
  • 6
    12-37828 WASHER, SHIFT CONTROL SHAFT
    WASHER, SHIFT CONTROL SHAFT
  • 7
    13-36206 WASHER, WAVE-SHIFT CONTROL SHAFT
    WASHER, WAVE-SHIFT CONTROL SHAFT
  • 8
    63673 LEVER, SHAFT CONTROL (REMOTE)
    LEVER, SHAFT CONTROL (REMOTE)
  • 9
    17-99615 PINK SHIFT LEVER TO SHIFT CONTROL SHAFT
    PINK SHIFT LEVER TO SHIFT CONTROL SHAFT
  • 10
    39047 SHAFT, SHIFT CONTROL
    SHAFT, SHIFT CONTROL
  • 11
    43-30802 GEAR, SECTOR - SHIFT CONTROL SHAFT (HORIZONTAL)
    GEAR, SECTOR - SHIFT CONTROL SHAFT (HORIZONTAL)
  • 12
    12-29245 WASHER, SHIFT CONTROL SHAFT
    WASHER, SHIFT CONTROL SHAFT
  • 13
    11-8267089 NUT, SECTOR GEAR TO SHIFT CONTROL SHAFT
    NUT, SECTOR GEAR TO SHIFT CONTROL SHAFT
  • 14
    24-30816 SPRING, DETENT - SECTOR GEAR
    SPRING, DETENT - SECTOR GEAR
  • 15
    10-28639 SCREW, DETENT SPRING TO BOTTOM COWL (5/8")
    SCREW, DETENT SPRING TO BOTTOM COWL (5/8")
  • 16
    13-21272 LOCKWASHER, DETENT SPRING SCREW
    LOCKWASHER, DETENT SPRING SCREW
  • 17
    24-39627 SPRING, DETENT - SHIFT CONTROL LEVER
    SPRING, DETENT - SHIFT CONTROL LEVER
  • 18
    39601 PLATE, DETENT SPRING
    PLATE, DETENT SPRING
  • 19
    10-25764 SCREW, SPRING PLATE TO ADAPTOR PLATE
    SCREW, SPRING PLATE TO ADAPTOR PLATE
  • 20
    23-30677 BUSHING, NYLON - UPPER SHIFT SHAFT
    BUSHING, NYLON - UPPER SHIFT SHAFT
  • 21
    45250A2 SHIFT SHAFT ASSEMBLY UPPER(USE THRU SERIAL #2080068)
    SHIFT SHAFT ASSEMBLY UPPER(USE THRU SERIAL #2080068)
  • 21
    45250A2 SHIFT SHAFT ASSEMBLY, UPPER (STARTED WITH SERIAL #2080069)
    SHIFT SHAFT ASSEMBLY, UPPER (STARTED WITH SERIAL #2080069)
  • 22
    43-32453 GEAR, SECTOR - UPPER SHIFT SHAFT
    GEAR, SECTOR - UPPER SHIFT SHAFT
