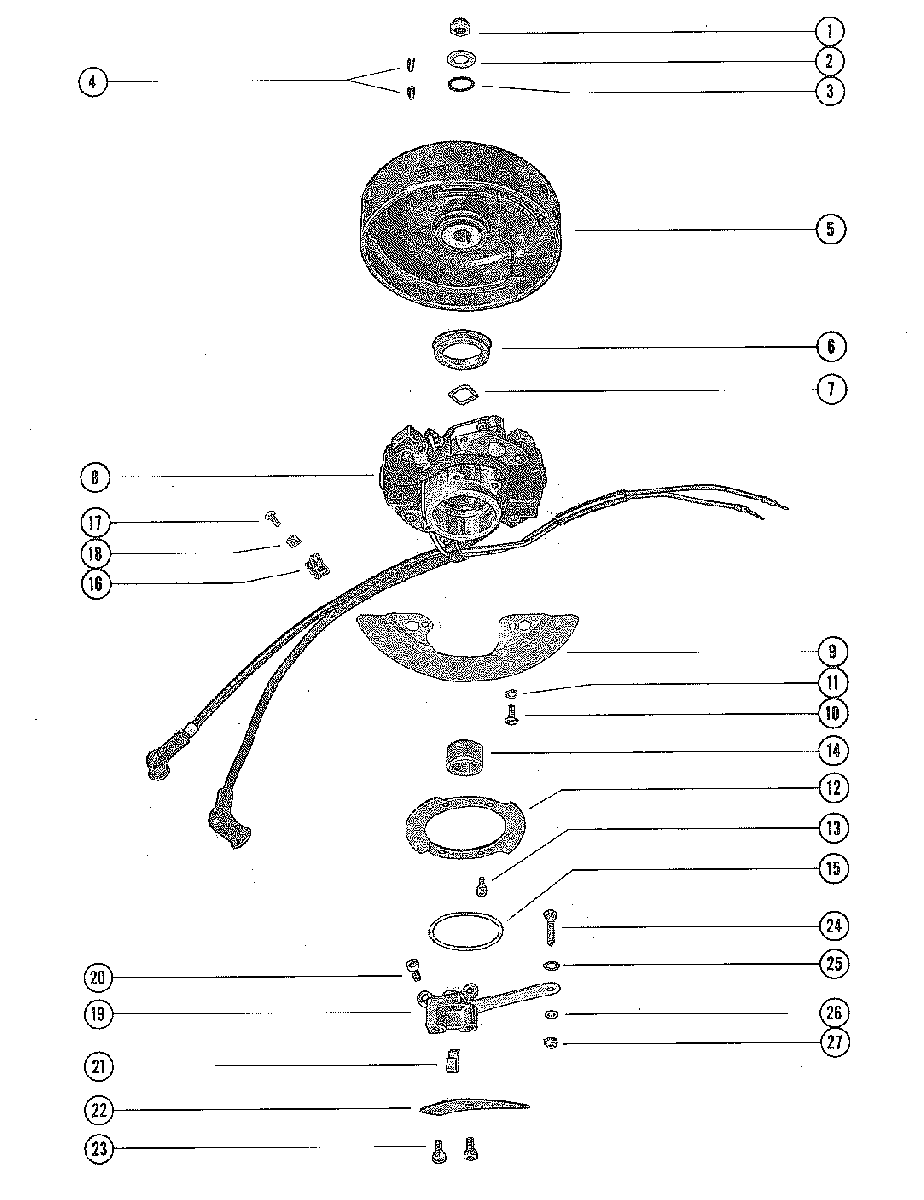

FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE для Mercury - 60 1916139 THRU 2529894
-
№АртикулНазвание
-
111-20696 NUT,FLYWHEELNUT,FLYWHEEL
-
212-36245 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
325-62701 "O" RING, FLYWHEEL HUB"O" RING, FLYWHEEL HUB
-
428-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
5219-2246A4 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
623-34367 COLLAR, FLYWHEEL DUST SHIELDCOLLAR, FLYWHEEL DUST SHIELD
-
713-22027 WASHER, WAVE _ MAGNETO CAM TENSIONWASHER, WAVE _ MAGNETO CAM TENSION
-
8398-2574A4 STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)
-
939326A1 SHIELD ASSEMBLY, STATOR PLATESHIELD ASSEMBLY, STATOR PLATE
-
1010-45742 SCREW, SHIELD TO STATOR PLATESCREW, SHIELD TO STATOR PLATE
-
1113-26996 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
1233904 RING, HOLD DOWN - STATOR PLATERING, HOLD DOWN - STATOR PLATE
-
1310-35400 SCREW, HOLD DOWN RING TO STATOR PLATESCREW, HOLD DOWN RING TO STATOR PLATE
-
14398-2230 CAM, BREAKERCAM, BREAKER
-
1515-33910015 SHIM, STATAOR PLATE TO UPPER END CAP (.015)SHIM, STATAOR PLATE TO UPPER END CAP (.015)
-
1654-45806 CLAMP, STATOR LEADCLAMP, STATOR LEAD
-
1710-20720 SCREW, STATOR LEAD CLIP TO PORT COVERSCREW, STATOR LEAD CLIP TO PORT COVER
-
188M0084613 "D" WASHER, LEAD CLIP SCREW"D" WASHER, LEAD CLIP SCREW
-
1934363A1 THROTTLE CAM BRACKET ASSEMBLYTHROTTLE CAM BRACKET ASSEMBLY
-
2010-53296 SCREW, CAM BRACKET TO STATOR PLATESCREW, CAM BRACKET TO STATOR PLATE
-
2154-34449 CLIP, THROTTLE CAM BRACKETCLIP, THROTTLE CAM BRACKET
-
2236000 CAM, THROTTLECAM, THROTTLE
-
2310-53296 SCREW, THROTTLE CAM TO CAM BRACKETSCREW, THROTTLE CAM TO CAM BRACKET
-
2410-34696 SCREW, CONTROL LEVER TO CAM BRACKETSCREW, CONTROL LEVER TO CAM BRACKET
-
2513-29720 WASHER, WAVE _ CONTROL LEVER SCREWWASHER, WAVE _ CONTROL LEVER SCREW
-
2612-34392 WASHER, CONTROL LEVER SCREWWASHER, CONTROL LEVER SCREW
-
2711-28656 NUT, CONTROL LEVER SCREWNUT, CONTROL LEVER SCREW
