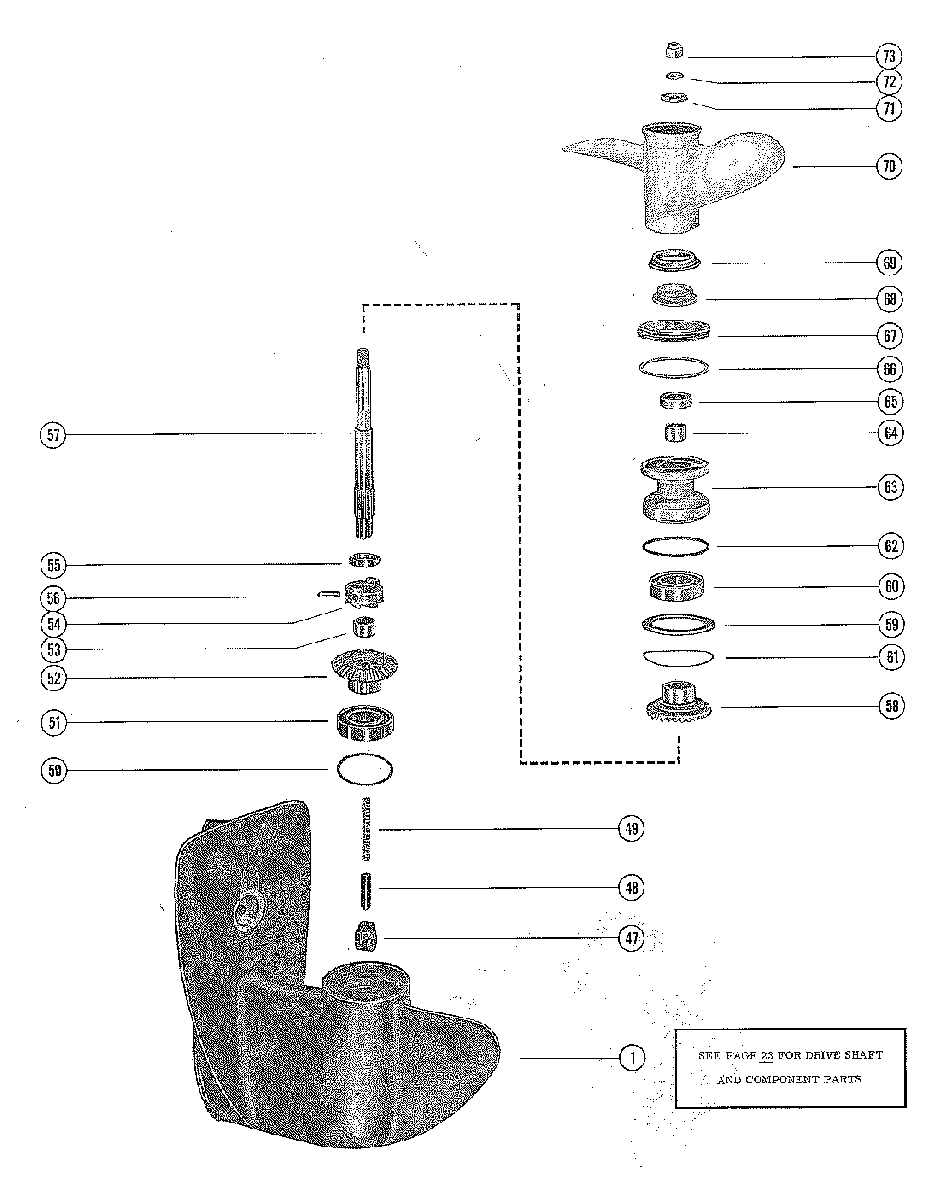

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 60 1916139 THRU 2529894

  • №
    Артикул
    Название
  • -
    1630-2643A12 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOW
  • -
    1630-2643A13 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOW
  • -
    1630-2643A12 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOW
  • -
    1630-2643A13 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOW
  • -
    1630-2643A26 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) ALUMINUM WATER
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) ALUMINUM WATER
  • -
    1630-2643A27 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) ALUMINUM WATER P
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) ALUMINUM WATER P
  • -
    1630-2643A26 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) PLASTIC WATER P
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) PLASTIC WATER P
  • -
    1630-2643A27 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) PLASTIC WATER PU
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) PLASTIC WATER PU
  • 1
    1630-2643A9 GEAR HOUSING ASSEMBLY SEE PAGE 23 FOR PARTS BREAKDOWN
    GEAR HOUSING ASSEMBLY SEE PAGE 23 FOR PARTS BREAKDOWN
  • 1
    1630-2643A9 GEAR HOUSING ASSEMBLY SEE PAGE 23 FOR PARTS BREAKDOWN
    GEAR HOUSING ASSEMBLY SEE PAGE 23 FOR PARTS BREAKDOWN
  • 47
    30599 CAM, SHIFT
    CAM, SHIFT
  • 48
    31334 FOLLOWER, SHIFT CAM
    FOLLOWER, SHIFT CAM
  • 49
    24-31333 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 50
    15-30522A1 SHIM ASSEMBLY, FORWARD GEAR BALL BEARING TO GEAR HOUSING(.0)
    SHIM ASSEMBLY, FORWARD GEAR BALL BEARING TO GEAR HOUSING(.0)
  • 51
    30-21889 BEARING, BALL - FORWARD GEAR
    BEARING, BALL - FORWARD GEAR
  • 52
    43-48577A2 FORWARD GEAR ASSEMBLY(2 RAMP RATCHET)
    FORWARD GEAR ASSEMBLY(2 RAMP RATCHET)
  • 52
    43-48577A3 FORWARD GEAR ASSEMBLY(3 RAMP RATCHET)
    FORWARD GEAR ASSEMBLY(3 RAMP RATCHET)
  • 53
    31-22458 BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 54
    43-48577A2 RATCHET ASSEMBLY, SLIDING CLUTCH(2 RAMP RATCHET)
    RATCHET ASSEMBLY, SLIDING CLUTCH(2 RAMP RATCHET)
  • 54
    52-47581 RATCHET ASSEMBLY, SLIDING CLUTCH(3 RAMP RATCHET)
    RATCHET ASSEMBLY, SLIDING CLUTCH(3 RAMP RATCHET)
  • 55
    53-32449 RING, RETAINING - CROSS PIN (PART OF A-52-32473A1 RATCHET)
    RING, RETAINING - CROSS PIN (PART OF A-52-32473A1 RATCHET)
  • 56
    17-30535 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 57
    44-33581 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 57
    44-47935 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 58
    43-48577A2 REVERSE GEAR ASSEMBLY(2 RAMP RATCHET)
    REVERSE GEAR ASSEMBLY(2 RAMP RATCHET)
  • 58
    43-48578 REVERSE GEAR ASSEMBLY(3 RAMP RATCHET)
    REVERSE GEAR ASSEMBLY(3 RAMP RATCHET)
  • 59
    12-30531 WASHER, THRUST - REVERSE GEAR
    WASHER, THRUST - REVERSE GEAR
  • 60
    30-21889 BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 61
    15-30532A1 SHIM ASSEMBLY, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
    SHIM ASSEMBLY, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
  • 62
    25-30529 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 63
    30541T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 64
    31-22458 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 65
    26-30530 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 66
    12-30528 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 67
    30537 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 68
    23-33582 COLLAR, GUIDE - PROPELLER SHAFT
    COLLAR, GUIDE - PROPELLER SHAFT
  • 70
    48-45890A1 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 8" PITCH) SHIPPED W
    PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 8" PITCH) SHIPPED W
  • 70
    48-45890A1 PROPELLER ASSEMBLY(3 BLADE - ALUMINUM - 5" PITCH) SHIPPED WI
    PROPELLER ASSEMBLY(3 BLADE - ALUMINUM - 5" PITCH) SHIPPED WI
  • 70
    48-34398A1 PROPELLER ASSEMBLY (2 BLADE - BRONZE - 8" PITCH)
    PROPELLER ASSEMBLY (2 BLADE - BRONZE - 8" PITCH)
  • 70
    48-45890A1 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 6" PITCH)
    PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 6" PITCH)
  • 70
    48-45890A1 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 4" PITCH)
    PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 4" PITCH)
  • 71
    12-30524 WASHER, SPLINE - PROPELLER SHAFT
    WASHER, SPLINE - PROPELLER SHAFT
  • 72
    12-20084 WASHER, PROPELLER NUT
    WASHER, PROPELLER NUT
  • 73
    11-82670911 NUT, PROPELLER
    NUT, PROPELLER
  • 73
    11-46356 NUT, PROPELLER
    NUT, PROPELLER
  • 68
    86665A1 THRUST HUB ASSEMBLY, PROPELLER SHAFT
    THRUST HUB ASSEMBLY, PROPELLER SHAFT
  • 69
    86665A1 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 70
    48-47944A1 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 5" PITCH) SHIPPED W
    PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 5" PITCH) SHIPPED W
  • 70
    48-47920A1 PROPELLER ASSEMBLY (2 BLADE - BRONZE - 8" PITCH)
    PROPELLER ASSEMBLY (2 BLADE - BRONZE - 8" PITCH)
  • 70
    48-47938A1 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 8" PITCH)
    PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 8" PITCH)
  • 71
    11-64075A1 SPACER, SPLINED - PROPELLER SHAFT
    SPACER, SPLINED - PROPELLER SHAFT
  • 72
    12-27025 WASHER, PROPELLER NUT
    WASHER, PROPELLER NUT
  • 73
    11-34933 NUT, PROPELLER
    NUT, PROPELLER
