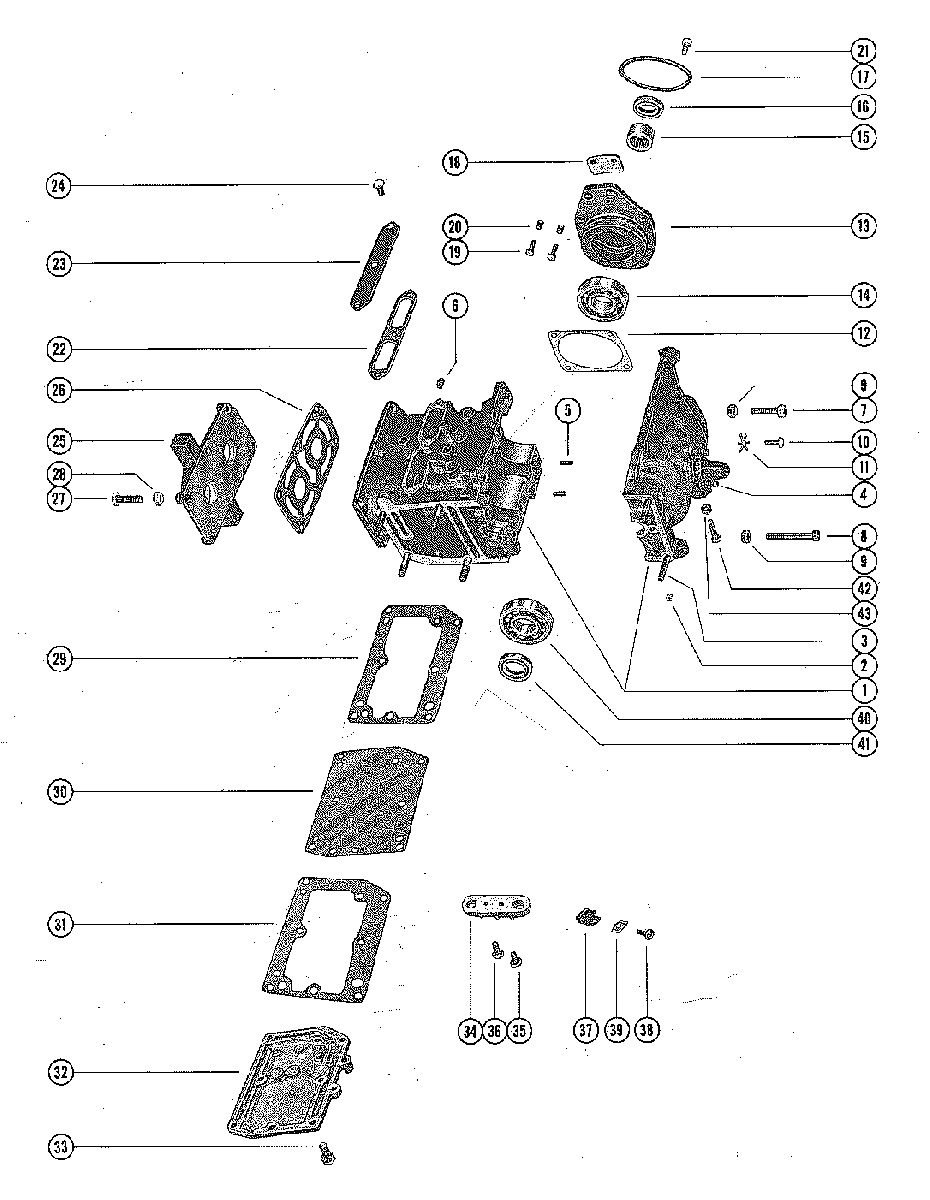

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 60 1916139 THRU 2529894

  • №
    Артикул
    Название
  • 1
    835-2650A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 1
    835-2752A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 2
    21-28481A1 CHECK VALVE ASSEMBLY, CRANKCASE
    CHECK VALVE ASSEMBLY, CRANKCASE
  • 3
    16-728091 STUD, BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING
    STUD, BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING
  • 4
    10-657461 STUD, CARBURETOR MOUNTING
    STUD, CARBURETOR MOUNTING
  • 5
    17-21438 PIN, DOWEL - CRANKCASE TO CYLIDNER BLOCK
    PIN, DOWEL - CRANKCASE TO CYLIDNER BLOCK
  • 6
    22-328022 PLUG, PIPE _ CYLINDER BLOCK
    PLUG, PIPE _ CYLINDER BLOCK
  • 7
    10-64278 SCREW, CRANKCASE TO CYLINDER BLOCK (1")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1")
  • 8
    10-24624 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
  • 9
    11-20184 NUT, CRANKCASE FASTENING SCREW
    NUT, CRANKCASE FASTENING SCREW
  • 10
    10-20665 SCREW, MAIN BEARING LOCKING
    SCREW, MAIN BEARING LOCKING
  • 11
    13-21709 LOCKWASHER, MAIN BEARING LOCKING SCREW
    LOCKWASHER, MAIN BEARING LOCKING SCREW
  • 12
    15-30502A1 SHIM ASS"Y, UPPER HSG. TO CYLINDER BLOCK(.002-3-5-10)
    SHIM ASS"Y, UPPER HSG. TO CYLINDER BLOCK(.002-3-5-10)
  • 13
    1131-2405A1 BEARING HOUSING ASSEMBLY, UPPER
    BEARING HOUSING ASSEMBLY, UPPER
  • 14
    30-72961 BEARING, BALL - UPPER BEARING HOUSING
    BEARING, BALL - UPPER BEARING HOUSING
  • 15
    31-31410 BEARING, ROLLER - UPPER BEARING HOUSING
    BEARING, ROLLER - UPPER BEARING HOUSING
  • 16
    26-31411 OIL SEAL, UPPER BEARING HOUSING
    OIL SEAL, UPPER BEARING HOUSING
  • 17
    25-20826 "O" RING, UPPER BEARING HOUSING
    "O" RING, UPPER BEARING HOUSING
  • 18
    54-34598 CLAMP, HOLD DOWN RING
    CLAMP, HOLD DOWN RING
  • 19
    10-36205 SCREW, RING CLAMP TO BEARING HOUSING
    SCREW, RING CLAMP TO BEARING HOUSING
  • 20
    24-34731 SPRING, RING CLAMP SCREW
    SPRING, RING CLAMP SCREW
  • 21
    10-39002 SCREW, UPPER BEARING HOUSING (1/2")
    SCREW, UPPER BEARING HOUSING (1/2")
  • 22
    27-22656 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 23
    30654 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 24
    10-20665 SCREW, PORT COVER TO CYLINDER BLOCK (1/2")
    SCREW, PORT COVER TO CYLINDER BLOCK (1/2")
  • 24
    10-20720 SCREW, PORT COVER TO CYLINDER BLOCK (5/8")
    SCREW, PORT COVER TO CYLINDER BLOCK (5/8")
  • 25
    1018-2652 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 26
    27-30504 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 27
    10-64278 SCREW, CYLINDER BLOCK COVER TO CYLINDER BLOCK
    SCREW, CYLINDER BLOCK COVER TO CYLINDER BLOCK
  • 28
    11-20184 NUT, CYLINDER BLOCK COVER SCREW
    NUT, CYLINDER BLOCK COVER SCREW
  • 29
    27-30656 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 30
    39096 PLATE, BAFFLE - EXHAUST MANIFORLD
    PLATE, BAFFLE - EXHAUST MANIFORLD
  • 31
    27-30656 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
    GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
  • 32
    46163 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 32
    46163 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 33
    10-28636 SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING
    SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING
  • 34
    30212 TERMINAL BLOCK, EXHAUST MAIFOLD COVER
    TERMINAL BLOCK, EXHAUST MAIFOLD COVER
  • 35
    10-72169 SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
    SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
  • 36
    10-62568 SCREW, MAGNETO GROUND LEADS TO TERMINAL BLOCK
    SCREW, MAGNETO GROUND LEADS TO TERMINAL BLOCK
  • 37
    54-24836 CLIP, MAGNETO GOUND LEAD
    CLIP, MAGNETO GOUND LEAD
  • 38
    10-62568 SCREW, GROUOND LEAD CLIP TO MANIFOLD COVER
    SCREW, GROUOND LEAD CLIP TO MANIFOLD COVER
  • 39
    8M0084613 "D" WASHER, GROUND LEAD FASTENING SCREW
    "D" WASHER, GROUND LEAD FASTENING SCREW
  • 40
    30-72961 BEARNG, BALL - CRANKCASE (LOWER)
    BEARNG, BALL - CRANKCASE (LOWER)
  • 41
    26-30943 OIL SEAL, CRANKCASE (LOWER)
    OIL SEAL, CRANKCASE (LOWER)
  • 42
    10-23015 SCREW, ADJUSTING - THROTTLE CONTROL
    SCREW, ADJUSTING - THROTTLE CONTROL
  • 43
    11-68219 NUT, THROTTLE CONTROL ADJUSTING SCREW
    NUT, THROTTLE CONTROL ADJUSTING SCREW
