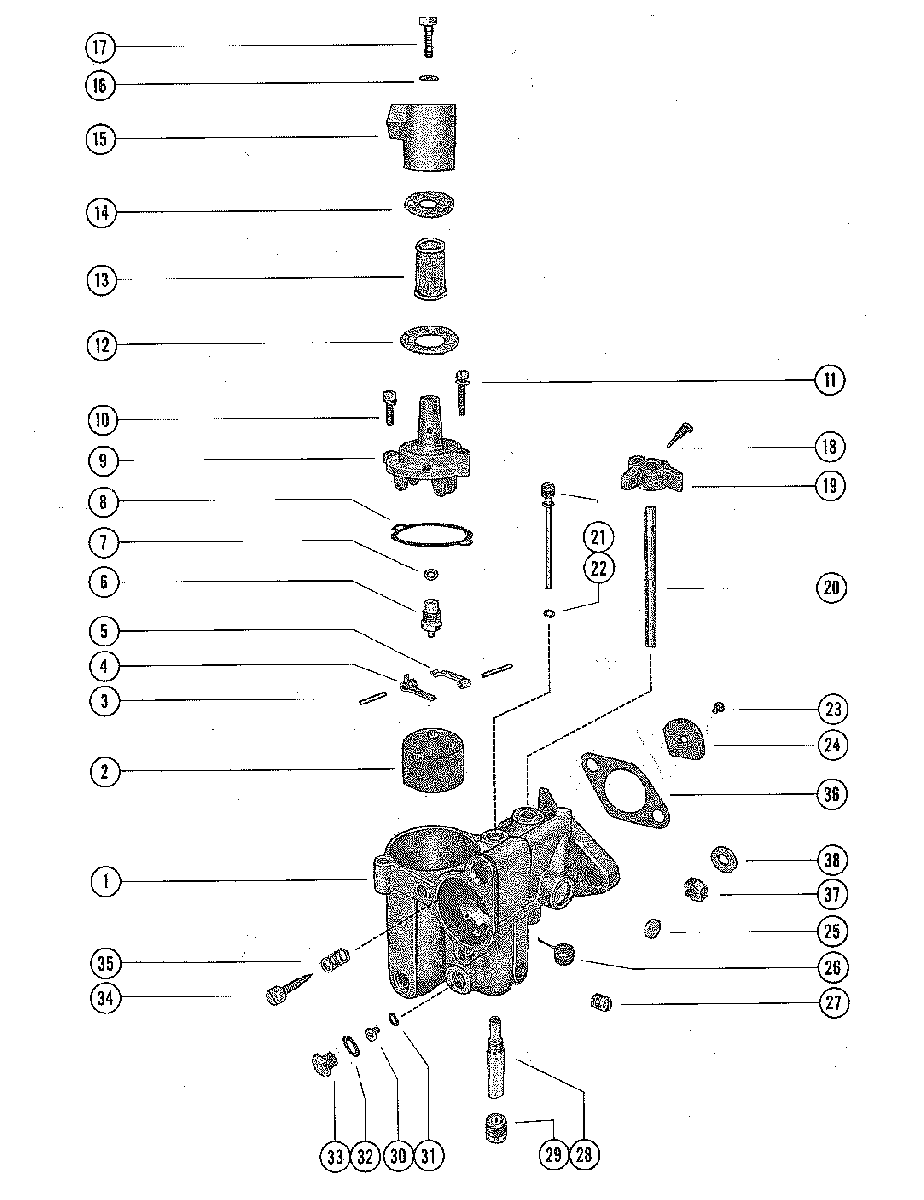

CARBURETOR ASSEMBLY для Mercury - 60 1916139 THRU 2529894

  • №
    Артикул
    Название
  • 1
    1334-2697 CARBURETOR ASSEMBLY, COMP (KB-6B)
    CARBURETOR ASSEMBLY, COMP (KB-6B)
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    17-20853 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    1399-102 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    1399-101 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-92581 INLET NEEDLE, SEAT AND GASKET
    INLET NEEDLE, SEAT AND GASKET
  • 7
    27-25033 GASKET, INLET NEEDLE AND SEAT
    GASKET, INLET NEEDLE AND SEAT
  • 8
    1399-99 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 9
    1399-113 COVER, FLOAT BOWL
    COVER, FLOAT BOWL
  • 10
    10-22625 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
  • 11
    10-25850 SCREW, FLOAT BOWL COVER (LONG)
    SCREW, FLOAT BOWL COVER (LONG)
  • 12
    27-25851 GASKET, STRAINTER COVER (LARGE)
    GASKET, STRAINTER COVER (LARGE)
  • 13
    1399-3938 SCREEN, FILTER
    SCREEN, FILTER
  • 14
    27-25849 GASKET, STRAINER COVER (SMALL)
    GASKET, STRAINER COVER (SMALL)
  • 15
    1399-1135 COVER, STRAINER
    COVER, STRAINER
  • 16
    27-25848 GASKET, STRAINER COVER SCREW
    GASKET, STRAINER COVER SCREW
  • 17
    10-25822 SCREW, STRAINER COVER
    SCREW, STRAINER COVER
  • 18
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 19
    8146791 LEVER, THROTTLE STOP
    LEVER, THROTTLE STOP
  • 20
    1399-1716 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 21
    1399-2037 TUBE, IDLE
    TUBE, IDLE
  • 22
    27-23180 GASKET, IDLE TUBE
    GASKET, IDLE TUBE
  • 23
    10-23035 SCREW/LOCKWASHER, THROTTLE SHUTTER
    SCREW/LOCKWASHER, THROTTLE SHUTTER
  • 24
    1399-699 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
  • 25
    19-20011 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
  • 26
    24-26890 SPRING, THROTTLE SHAFT RETURN
    SPRING, THROTTLE SHAFT RETURN
  • 27
    10-28845 SCREW, PLUG - BODY CHANNEL
    SCREW, PLUG - BODY CHANNEL
  • 28
    1399-2709 MAIN NOZZLE
    MAIN NOZZLE
  • 29
    10-23178 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 30
    1399-1765 JET, MAIN FUEL (.045) - STANDARD
    JET, MAIN FUEL (.045) - STANDARD
  • 30
    1399-1864 JET, MAIN FUEL (.043)
    JET, MAIN FUEL (.043)
  • 30
    1399-1896 JET, MAIN FUEL (.041)
    JET, MAIN FUEL (.041)
  • 31
    27-28409 GASKET, MAIN FUEL JET
    GASKET, MAIN FUEL JET
  • 32
    27-28406 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 33
    10-28405 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 34
    1399-2038 SCREW,IDLE ADJUSTMENT
    SCREW,IDLE ADJUSTMENT
  • 35
    24-27160 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • --
    1399-1717 GASKET AND PACKING SET
    GASKET AND PACKING SET
  • --
    1399-2710 REPAIR PARTS KIT
    REPAIR PARTS KIT
  • 36
    27-63309 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 37
    11-20184 NUT, CARBURETOR MOUNTING STUDS
    NUT, CARBURETOR MOUNTING STUDS
  • 38
    12-20583 WASHER, CARBURETOR MOUNTING STUD
    WASHER, CARBURETOR MOUNTING STUD
