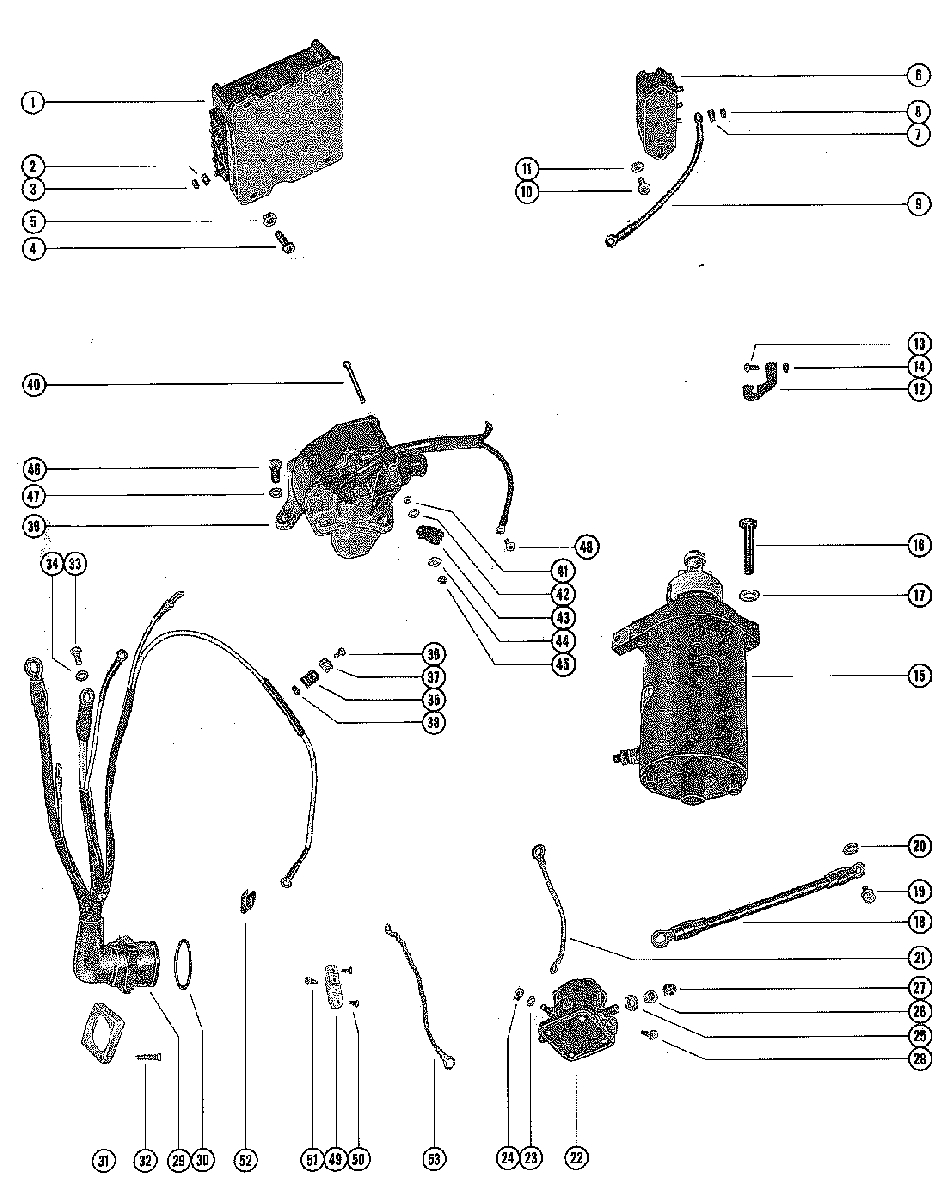

STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS для Mercury - 500 2116318 THRU 2305100

  • №
    Артикул
    Название
  • 1
    332-2986A27 SWITCH BOX ASSEMBLY, COMPLETE
    SWITCH BOX ASSEMBLY, COMPLETE
  • 2
    12-45075 WASHER, SWITCH BOX TERMINAL
    WASHER, SWITCH BOX TERMINAL
  • 3
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 4
    10-22485 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
    SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
  • 5
    11-20184 NUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREW
    NUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREW
  • 6
    78614A1 RECTIFIER ASSEMBLY, COMPLETE
    RECTIFIER ASSEMBLY, COMPLETE
  • 7
    12-45075 WASHER, RECTIFIER TERMINAL
    WASHER, RECTIFIER TERMINAL
  • 8
    11-45076 NUT, RECTIFIER TERMINAL
    NUT, RECTIFIER TERMINAL
  • 9
    46286 JUMPER WIRE, RECTIFIER TO SWITCH BOX
    SERIAL 00000000-02167843
    JUMPER WIRE, RECTIFIER TO SWITCH BOX
    SERIAL 00000000-02167843
  • 10
    10-22485 SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (3/4")
    SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (3/4")
  • 11
    11-20184 NUT, RECTIFIER TO FRONT SUPPORT BRACKET SCREW
    NUT, RECTIFIER TO FRONT SUPPORT BRACKET SCREW
  • 12
    59757 BRACKET, RETAINER - HIGH TENSION LEAD
    BRACKET, RETAINER - HIGH TENSION LEAD
  • 13
    10-21722 SCREW, RETAINER BRACKET TO FRONT SUPPORT BRAKCET (5/8")
    SCREW, RETAINER BRACKET TO FRONT SUPPORT BRAKCET (5/8")
  • 14
    11-20184 NUT, RETAINER BRACKET SCREW
    NUT, RETAINER BRACKET SCREW
  • 15
    50-55601A2 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 16
    10-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGE
    SCREW, STARTER MOTOR TO CRANKCASE FLANGE
  • 17
    13-26993 LOCKWASHER, STARTER MOTOR SCREW
    LOCKWASHER, STARTER MOTOR SCREW
  • 18
    84-93389A12 WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT
    WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT
  • 19
    10-69035 SCREW, GROUND WIRE TO STARTER MOTOR
    SCREW, GROUND WIRE TO STARTER MOTOR
  • 20
    13-26992 LOCKWASHER, GROUND WIRE FASTENING SCREW
    LOCKWASHER, GROUND WIRE FASTENING SCREW
  • --
    11-20890 NUT, GROUND WIRE SCREW
    NUT, GROUND WIRE SCREW
  • 21
    46715 GROUND STRAP ASSEMBLY
    GROUND STRAP ASSEMBLY
  • 22
    32445A1 STARTER SOLENOID
    STARTER SOLENOID
  • 23
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 24
    11-68219 NUT, SOLENOID TERMINAL (#10)
    NUT, SOLENOID TERMINAL (#10)
  • 25
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")
    LOCKWASHER, SOLENOID TERMINAL (5/16")
  • 26
    11-22053 NUT, SOLENOID TERMINAL - INSIDE (5/16")
    NUT, SOLENOID TERMINAL - INSIDE (5/16")
  • 27
    11-26062 NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16")
    NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16")
  • 28
    10-29238 SCREW, STARTER SOLENOID TO STARTER MOTOR
    SCREW, STARTER SOLENOID TO STARTER MOTOR
  • 29
    46905 WIRING HARNESS (INTERNAL) -
    SERIAL 00000000-02167843
    WIRING HARNESS (INTERNAL) -
    SERIAL 00000000-02167843
  • 29
    46905 WIRING HARNESS (INTERNAL) -
    SERIAL 02167844-09999999
    WIRING HARNESS (INTERNAL) -
    SERIAL 02167844-09999999
  • 29
    38072 WIRING HARNESS (INTERNAL) - USE ON STARTER ENGINES ONLY
    WIRING HARNESS (INTERNAL) - USE ON STARTER ENGINES ONLY
  • 30
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 31
    26079A2 PLATE, BACKING - WIRING HARNESS
    PLATE, BACKING - WIRING HARNESS
  • 32
    10-45893 SCREW, BACKING PLATE TO BOTTOM COWL
    SCREW, BACKING PLATE TO BOTTOM COWL
  • 33
    10-98256 SCREW, WIRING HARNESS LEAD TO BOTTO COWL (1/2")
    SCREW, WIRING HARNESS LEAD TO BOTTO COWL (1/2")
  • 34
    13-24669 LOCKWASHER, WIRING HARNESS LEAD SCREW
    LOCKWASHER, WIRING HARNESS LEAD SCREW
  • 35
    54-26550 CLIP, WIRING HARNESS LEAD
    CLIP, WIRING HARNESS LEAD
  • 36
    10-29072 SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
    SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
  • 37
    18-27789 "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
  • 38
    11-24656 NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
  • 39
    332-4895A6 IGNITION COIL ASSEMBLY, COMPLETE
    IGNITION COIL ASSEMBLY, COMPLETE
  • 40
    10-46368 SCREW, IGNITION COIL CLAMPING (2 1/4")
    SCREW, IGNITION COIL CLAMPING (2 1/4")
  • 40
    10-46367 SCREW, IGNITION COIL CLAMPING - CLIP ATTACHING (2 1/2")
    SCREW, IGNITION COIL CLAMPING - CLIP ATTACHING (2 1/2")
  • 41
    11-68219 NUT, IGNITION COIL CLAMPING SCREW
    NUT, IGNITION COIL CLAMPING SCREW
  • 42
    12-56681 WASHER, IGNITION COIL CLAMPING SCREW
    WASHER, IGNITION COIL CLAMPING SCREW
  • 43
    54-22740 CLIP, LEAD WIRE TO IGNITION COIL
    CLIP, LEAD WIRE TO IGNITION COIL
  • 44
    8M0084613 "D" WASHER, IGNITION COIL CLAMPING SCREW
    "D" WASHER, IGNITION COIL CLAMPING SCREW
  • 45
    11-8267086 NUT, IGNITION COIL CLAMPING SCREW
    NUT, IGNITION COIL CLAMPING SCREW
  • 46
    10-36137 SCREW, IGNITION COIL TO BOTTOM COWL (1")
    SCREW, IGNITION COIL TO BOTTOM COWL (1")
  • 47
    13-26992 LOCKWASHER, IGNITION COIL SCREW
    LOCKWASHER, IGNITION COIL SCREW
  • 48
    10-45218 SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
    SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
  • 49
    30212 TERMINAL BLOCK USE ON STARTER ENGINES
    TERMINAL BLOCK USE ON STARTER ENGINES
  • 50
    10-72169 SCREW, TERMINAL BLOCK ATTACHING USE ON STARTER ENGINES
    SCREW, TERMINAL BLOCK ATTACHING USE ON STARTER ENGINES
  • 51
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK USE ON START ENGINE
    SCREW, HARNESS LEADS TO TERMINAL BLOCK USE ON START ENGINE
  • 52
    54-22783 "S" CLIP, WIRING HARNESS TO BOTTOM COWL USE ON START ENGINE
    "S" CLIP, WIRING HARNESS TO BOTTOM COWL USE ON START ENGINE
  • 53
    46715 CABLE, STARTER SOLENOID TO TOP MOUNT USE ON STARTER ENGINES
    CABLE, STARTER SOLENOID TO TOP MOUNT USE ON STARTER ENGINES
