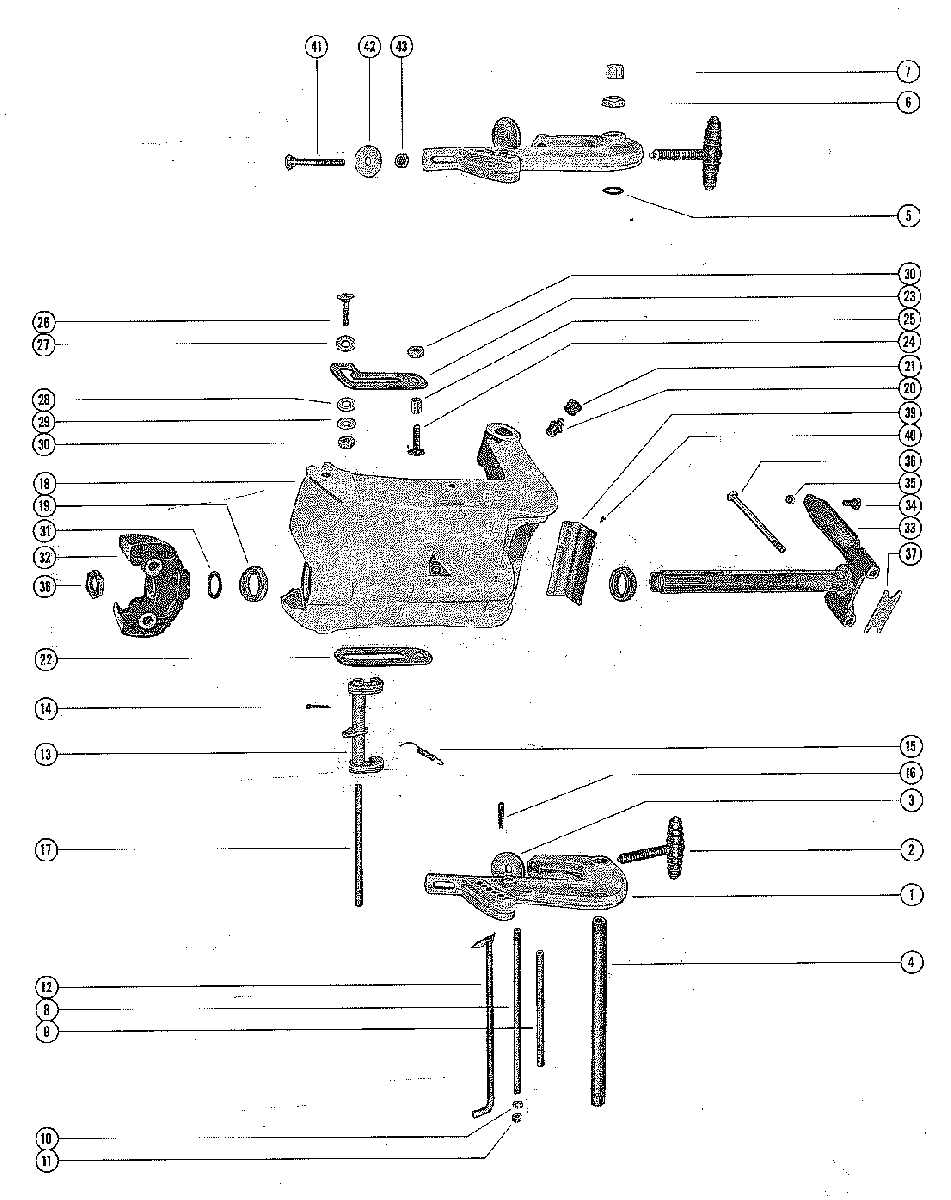

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 500 2116318 THRU 2305100

№

Артикул

Название
1

1440-1797A1 CLAMP BRACKET ASSEMBLY

CLAMP BRACKET ASSEMBLY

0 ₽
2

28403A3 THUMB SCREW ASSEMBLY

THUMB SCREW ASSEMBLY

0 ₽
3

12-28404 WASHER, THUMB SCREW

WASHER, THUMB SCREW

0 ₽
4

8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET

TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET

2 820 ₽
5

12-52864 SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010-.020)

SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010-.020)

0 ₽
6

11-858869 NUT, TILT TUBE FASTENING

NUT, TILT TUBE FASTENING

330 ₽
7

53078 CAP, PLASTIC - TILT TUBE ENDS

CAP, PLASTIC - TILT TUBE ENDS

0 ₽
8

16-59625 STUD, CLAMP BRACKET

STUD, CLAMP BRACKET

0 ₽
9

23-59624 SPACER, CLAMP BRACKET STUD

SPACER, CLAMP BRACKET STUD

0 ₽
10

13-26993 LOCKWASHER, CLAMP BRACKET STUD

LOCKWASHER, CLAMP BRACKET STUD

140 ₽
11

11-22053 NUT, STUD TO CLAMP BRACKET

NUT, STUD TO CLAMP BRACKET

180 ₽
12

17-8M0026068 TILT LOCK PIN ASSEMBLY

TILT LOCK PIN ASSEMBLY

4 970 ₽
13

26903A3 REVERSE LOCK ASSEMBLY

REVERSE LOCK ASSEMBLY

0 ₽
14

18-45882 COTTER PIN, REVERSE LOCK TO SHAFT

COTTER PIN, REVERSE LOCK TO SHAFT

280 ₽
15

24-29821 SPRING, TENSION - REVERSE LOCK

SPRING, TENSION - REVERSE LOCK

0 ₽
16

17-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHING

ROLL PIN, REVERSE LOCK SPRING ATTACHING

0 ₽
17

56349 SHAFT, REVERSE LOCK TO SWIVEL BRACKET

SHAFT, REVERSE LOCK TO SWIVEL BRACKET

0 ₽
18

1442-2501A1 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)

SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)

0 ₽
18

1442-2502A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)

SWIVEL BRACKET ASSEMBLY (LONG SHAFT)

0 ₽
19

26-32911 OIL SEAL, SWIVEL BRACKET

OIL SEAL, SWIVEL BRACKET

560 ₽
20

22-69059 FITTING, GREASE - SWIVEL BRACKET

FITTING, GREASE - SWIVEL BRACKET

720 ₽
21

19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING

LUBRICAP, SWIVEL BRACKET GREASE FITTING

450 ₽
23

29056 LEVER, TILT STOP - PORT SIDE

LEVER, TILT STOP - PORT SIDE

0 ₽
22

29057 LEVER, TILT STOP - STARBOARD SIDE

LEVER, TILT STOP - STARBOARD SIDE

0 ₽
24

10-27791 SCREW, ANCHOR - TILT STOP LEVER

SCREW, ANCHOR - TILT STOP LEVER

0 ₽
25

23-29055 SPACER, TILT STOP LEVER ANCHOR SCREW

SPACER, TILT STOP LEVER ANCHOR SCREW

0 ₽
26

10-27790 SCREW, RETAINING - TILT STOP LEVER

SCREW, RETAINING - TILT STOP LEVER

0 ₽
27

13-20846 WASHER, WAVE - RETAINING SCREW (PORT SIDE)

WASHER, WAVE - RETAINING SCREW (PORT SIDE)

0 ₽
28

15-37711 SHIM, RETAINING SCREW (.020) - PORT SIDE

SHIM, RETAINING SCREW (.020) - PORT SIDE

0 ₽
29

13-36076 WASHER, WAVE - RETAINING SCREW (PORT SIDE)

WASHER, WAVE - RETAINING SCREW (PORT SIDE)

0 ₽
30

11-20184 NUT, ANCHOR AND RETAINING SCREW

NUT, ANCHOR AND RETAINING SCREW

120 ₽
31

12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)

WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)

0 ₽
31

12-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)

WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)

0 ₽
32

77416T1 YOKE, BOTTOM

YOKE, BOTTOM

4 320 ₽
33

17-28418A5 SWIVEL PIN AND STEERING ARM ASSY (SHORT SHAFT)

SWIVEL PIN AND STEERING ARM ASSY (SHORT SHAFT)

0 ₽
33

17-28419A5 SWIVEL PIN AND STEERING ARM ASSY (LONG SHAFT)

SWIVEL PIN AND STEERING ARM ASSY (LONG SHAFT)

0 ₽
34

10-31830 SCREW, STEERING ARM TO RIDE GUIDE KIT

SCREW, STEERING ARM TO RIDE GUIDE KIT

0 ₽
35

11-8M0042636 NUT, STEERING ARM SCREW

NUT, STEERING ARM SCREW

150 ₽
36

10-33986 BOLT, UPPER MOUNT TO SWIVEL PIN

BOLT, UPPER MOUNT TO SWIVEL PIN

0 ₽
37

30711 BUMPER, STEERING ARM

BUMPER, STEERING ARM

0 ₽
38

11-71956 NUT, RETAINING - SWIVEL PIN

NUT, RETAINING - SWIVEL PIN

0 ₽
39

38-56267 SERIAL PLATE

SERIAL PLATE

0 ₽
40

10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET

SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET

0 ₽
41

10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM

BOLT, CLAMP BRACKET TO BOAT TRANSOM

0 ₽
42

12-46765 WASHER, CLAMP BRACKET TRANSOM BOLT

WASHER, CLAMP BRACKET TRANSOM BOLT

570 ₽
43

11-82670912 NUT, CLAMP BRACKET TRANSOM BOLT

NUT, CLAMP BRACKET TRANSOM BOLT

410 ₽
