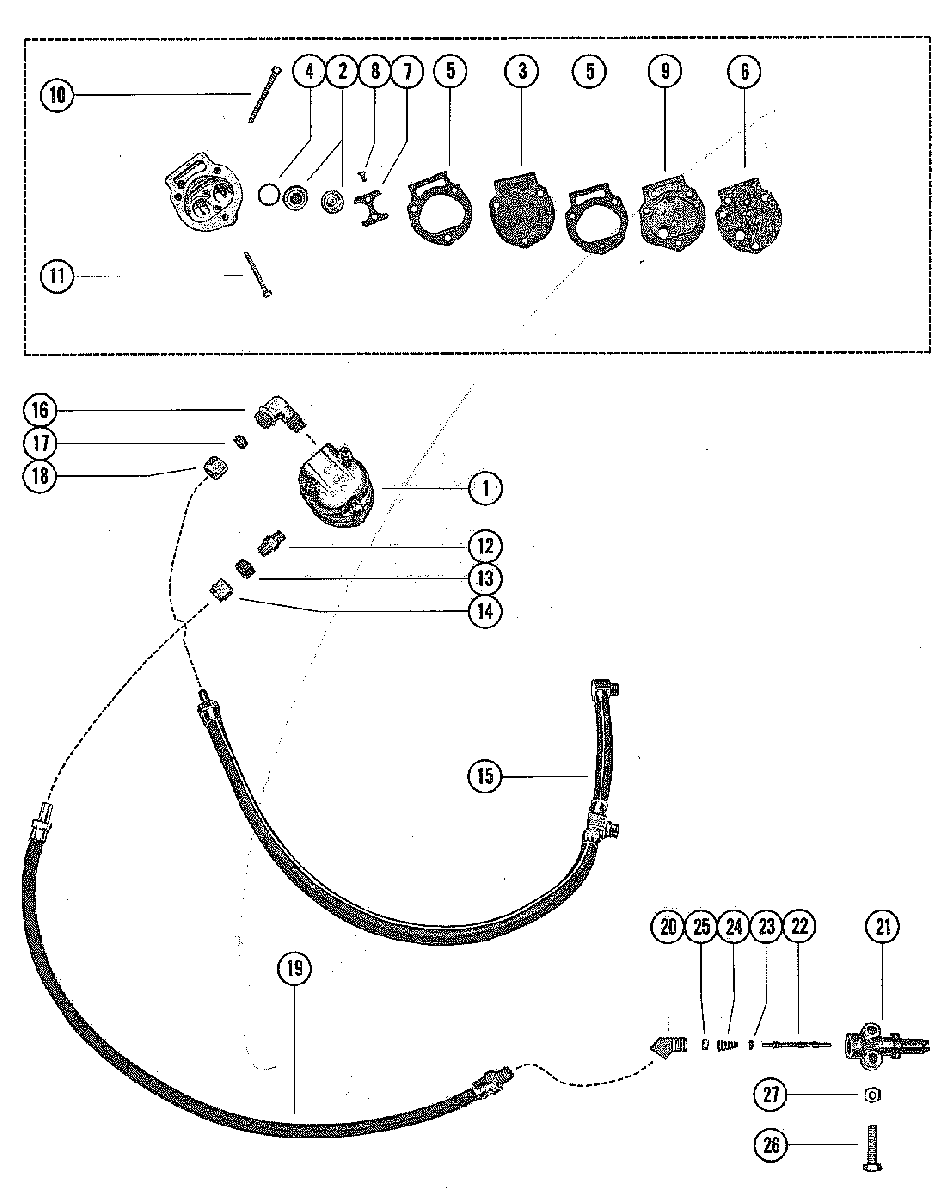

FUEL PUMP ASSEMBLY для Mercury - 500 2116318 THRU 2305100
-
№АртикулНазвание
-
130269A2 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
323014A1 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
690-8M0143356 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
723004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
810-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
923008 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1010-30274 SCREW, FUEL PUMP MOUNTING (1 3/4")SCREW, FUEL PUMP MOUNTING (1 3/4")
-
1110-29878 SCREW, FUEL PUMP MOUNTING (1 1/2")SCREW, FUEL PUMP MOUNTING (1 1/2")
-
1222-22949 CONNECTOR, PUMP INLET TO FUEL LINECONNECTOR, PUMP INLET TO FUEL LINE
-
1322-22946 SLEEVE, RUBBER - CONNECTORSLEEVE, RUBBER - CONNECTOR
-
1422-22948 NUT, CONNECTOR TO FUEL LINENUT, CONNECTOR TO FUEL LINE
-
1532-32094 FUEL LINE, PUMP TO LOWER AND UPPER FILTERFUEL LINE, PUMP TO LOWER AND UPPER FILTER
-
1622-22995 ELBOW, FUEL PUMP INLETELBOW, FUEL PUMP INLET
-
1722-22946 SLEEVE, RUBBERSLEEVE, RUBBER
-
1822-22948 NUT, ELBOWNUT, ELBOW
-
1932-30036 FUEL LINE, FUEL PUMP TO ADAPTORFUEL LINE, FUEL PUMP TO ADAPTOR
-
2022-37682 CONNECTOR, FUEL LINE TO ADAPTORCONNECTOR, FUEL LINE TO ADAPTOR
-
2130186 ADAPTTOR, CHECK UNIT (FUEL LINE)ADAPTTOR, CHECK UNIT (FUEL LINE)
-
2230185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2325-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2424-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2530188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2610-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
-
2610-21937 SCREW, ADAPTOR TO BOTTOM COWL (2")SCREW, ADAPTOR TO BOTTOM COWL (2")
-
2711-20184 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
