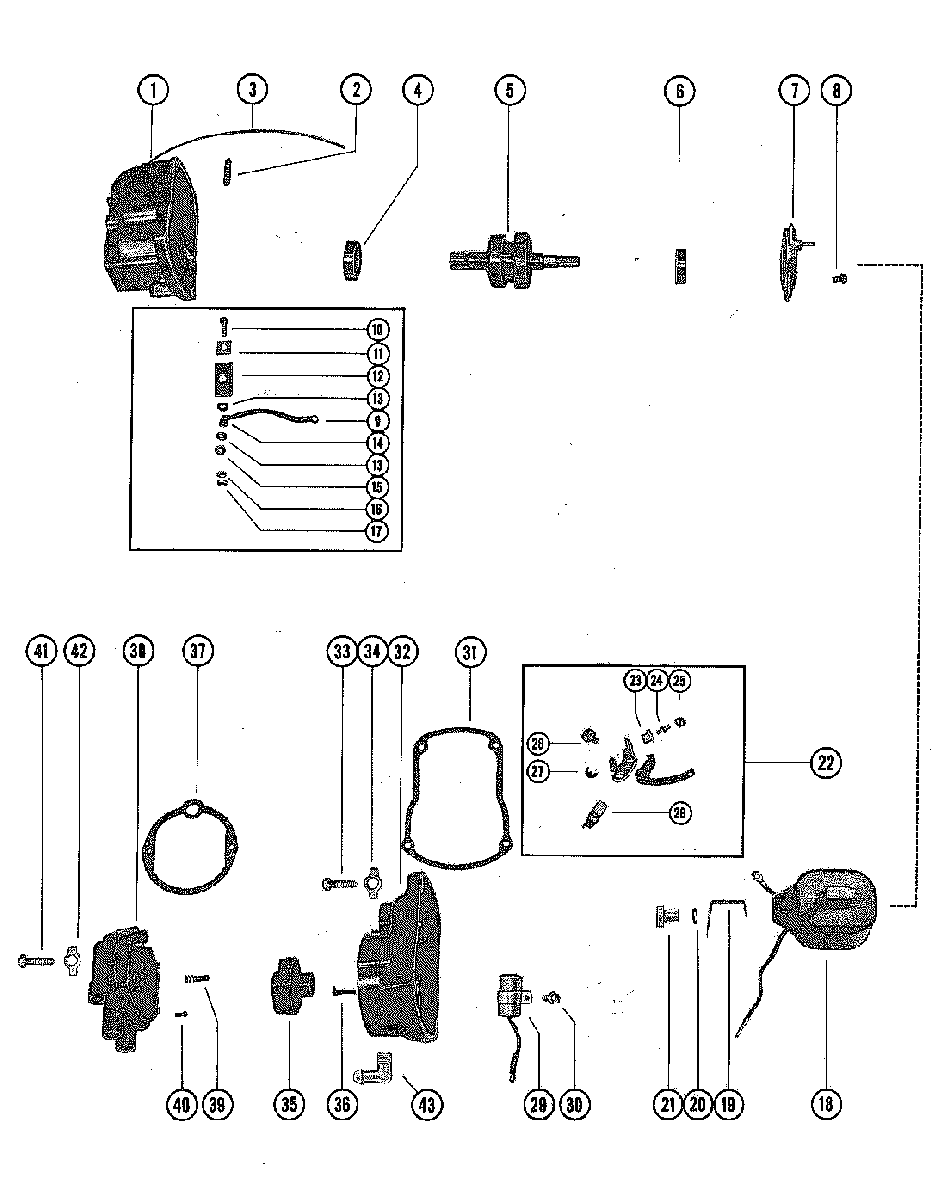

MAGNETO ASSEMBLY (INTERNAL PARTS) для Mercury - 500 2116318 THRU 2305100
-
№АртикулНазвание
-
-394-2271A2 MAGNETO ASSEMBLY, COMPLETEMAGNETO ASSEMBLY, COMPLETE
-
1394-1570 FRAME, MAGNETO HOUSINGFRAME, MAGNETO HOUSING
-
210-25510 SCREW, SET - COIL BRIDGESCREW, SET - COIL BRIDGE
-
3394-1051 LOCKWIRE, COIL BRIDGE SET SCREWLOCKWIRE, COIL BRIDGE SET SCREW
-
430-24998 BEARING, BALL (DRIVE END )BEARING, BALL (DRIVE END )
-
5394-1067A1 MAGNETIC ROTOR AND SHAFTMAGNETIC ROTOR AND SHAFT
-
630-49090 BEARING, BALL (OPPOSITE DRIVE END)BEARING, BALL (OPPOSITE DRIVE END)
-
7394-1637 SUPPORT, BALL BEARINGSUPPORT, BALL BEARING
-
810-25509 SCREW AND LOCKWASHER, SUPPOR5T TO FRAMESCREW AND LOCKWASHER, SUPPOR5T TO FRAME
-
984-60466A13 WIRE ASSEMBLY, PRIMARY GROUND LEADWIRE ASSEMBLY, PRIMARY GROUND LEAD
-
1010-29182 SCREW, PRIMARY GROUND (#10)SCREW, PRIMARY GROUND (#10)
-
1112-30267 WASHER, PRIMARY GROUND TERMINALWASHER, PRIMARY GROUND TERMINAL
-
12394-1579 INSULATOR, PRIMARY GROUND TERMINALINSULATOR, PRIMARY GROUND TERMINAL
-
1312-29099 WASHER, INSULATING - PRIMARY GROUND SCREWWASHER, INSULATING - PRIMARY GROUND SCREW
-
1423-62769 BUSHING , INSULATING - HOUSING FRAMEBUSHING , INSULATING - HOUSING FRAME
-
1512-26014 WASHER, PRIMARY GROUND SCREWWASHER, PRIMARY GROUND SCREW
-
1611-24656 NUT, LOCK - PRIMARY GROUND SCREWNUT, LOCK - PRIMARY GROUND SCREW
-
1711-68219 NUT, PRIMARY GROUND SCREWNUT, PRIMARY GROUND SCREW
-
18394-1128A1 COIL ASSEMBLYCOIL ASSEMBLY
-
19394-1050 CLIP, COIL - HIGH TENSIONCLIP, COIL - HIGH TENSION
-
2013-23836 LOCKWASHER, COIL TERMINALLOCKWASHER, COIL TERMINAL
-
21394-1131 NUT, COIL CLIP FASTENINGNUT, COIL CLIP FASTENING
-
22393-1504A11 BREAKER ASSEMBLYBREAKER ASSEMBLY
-
23393-1586 GROMMET, PLASTIC - BREAKER BRACKETGROMMET, PLASTIC - BREAKER BRACKET
-
2416-29230 STUD, PRIMARY LEAD AND TENSION SPRINGSTUD, PRIMARY LEAD AND TENSION SPRING
-
2511-29236 NUT, PRIMARY LEAD FASTENINGNUT, PRIMARY LEAD FASTENING
-
26394-1106A1 HOLDER AND CAM WICK ASSEMBLYHOLDER AND CAM WICK ASSEMBLY
-
2753-21058 "E" RING, BREAKER TO PIVOT PIN"E" RING, BREAKER TO PIVOT PIN
-
2810-20597 SCREW, BREAKER HOLDER TO HOUSINGSCREW, BREAKER HOLDER TO HOUSING
-
29394-1130A1 CONDENSERCONDENSER
-
3010-25509 SCRWE AND LOCKWASHER, CONDENSER FASTENINGSCRWE AND LOCKWASHER, CONDENSER FASTENING
-
3127-29166 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
32394-1577A2 COVER, MAGNETOCOVER, MAGNETO
-
3310-29418 SCREW, COVER TO FRAMESCREW, COVER TO FRAME
-
3414-38359 TAB WASHER, COVER FASTENING SCREWTAB WASHER, COVER FASTENING SCREW
-
35394-2602A1 MAGNETO ROTOR ASSEMBLYMAGNETO ROTOR ASSEMBLY
-
36394-1110 CLIP, SPRINGCLIP, SPRING
-
3727-25725 GASKET, END CAP COVERGASKET, END CAP COVER
-
38394-1561A2 END CAP COVER ASSEMBLYEND CAP COVER ASSEMBLY
-
39394-1056A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
4010-25517 SCREW, HIGH TENSION CABLE FASTENINGSCREW, HIGH TENSION CABLE FASTENING
-
4110-29418 SCREW, END CAP COVER TO MAGNETO COVERSCREW, END CAP COVER TO MAGNETO COVER
-
4214-38359 TAB WASHER, COVER FASTENING SCREWTAB WASHER, COVER FASTENING SCREW
-
4322-996642 ELBOW, PLASTIC - MAGNETO COVER VENTELBOW, PLASTIC - MAGNETO COVER VENT
