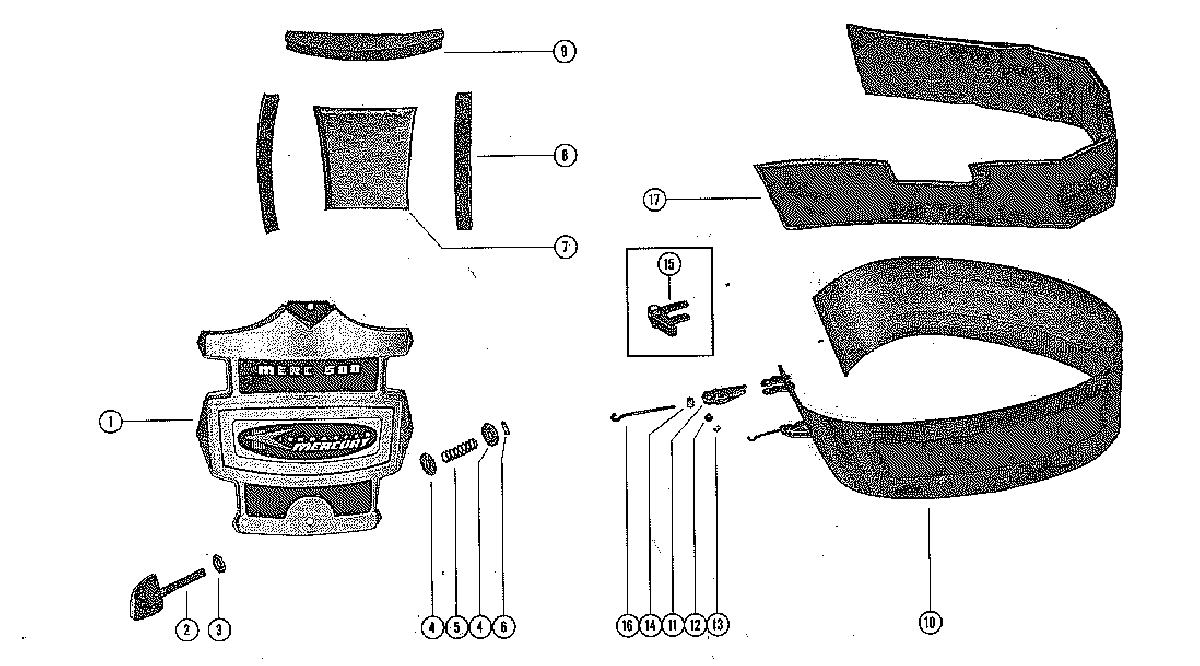

COWLING AND FRONT COVER для Mercury - 500 2116318 THRU 2305100

  • №
    Артикул
    Название
  • 1
    2182-7927A5 COWL FRONT COVER ASSEMBLY
    COWL FRONT COVER ASSEMBLY
  • 2
    56848 KNOB, COWL FRONT COVER FASTENING
    KNOB, COWL FRONT COVER FASTENING
  • 3
    12-30771 WASHER, COVER FASTENING KNOB
    WASHER, COVER FASTENING KNOB
  • 4
    12-27129 WASHER, COVER FASTENING KNOB
    WASHER, COVER FASTENING KNOB
  • 5
    24-30772 SPRING, TENSION - COVER FASTENING KNOB
    SPRING, TENSION - COVER FASTENING KNOB
  • 6
    17-29077 PIN, ROLL - TENSION SPRING TO KNOB
    PIN, ROLL - TENSION SPRING TO KNOB
  • 7
    38674 BLANKET, SOUND ABSORBING
    BLANKET, SOUND ABSORBING
  • 8
    31095 SEAL, SOUND - LOWER SECTION
    SEAL, SOUND - LOWER SECTION
  • 9
    38133 SEAL, SOUND - UPPER SECTION
    SEAL, SOUND - UPPER SECTION
  • 10
    2118-3247A3 WRAP AROUND COWL ASSEMBLY
    WRAP AROUND COWL ASSEMBLY
  • 11
    46785A1 HANDLE, COWL LATCH EARLY STYLE
    HANDLE, COWL LATCH EARLY STYLE
  • 12
    17-21057 PIN, HINGE - COWL LATCH EARLY STYLE
    PIN, HINGE - COWL LATCH EARLY STYLE
  • 13
    53-21058 "E" RING, COWL LATCH HINGE PIN EARLY STYLE
    "E" RING, COWL LATCH HINGE PIN EARLY STYLE
  • 14
    46785A1 SWIVEL, COWL LATCH EARLY STYLE
    SWIVEL, COWL LATCH EARLY STYLE
  • 15
    46785A1 COWL LATCH ASSEMBLY (LATE STYLE)
    COWL LATCH ASSEMBLY (LATE STYLE)
  • 16
    30413 HOOK, COWL LATCH FASTENING
    HOOK, COWL LATCH FASTENING
  • 17
    37794 BLANKET, SOUND ABSORBING
    BLANKET, SOUND ABSORBING
  • --
    92-86166Q1 GLUE (BLANKET ADHESIVE)
    GLUE (BLANKET ADHESIVE)
