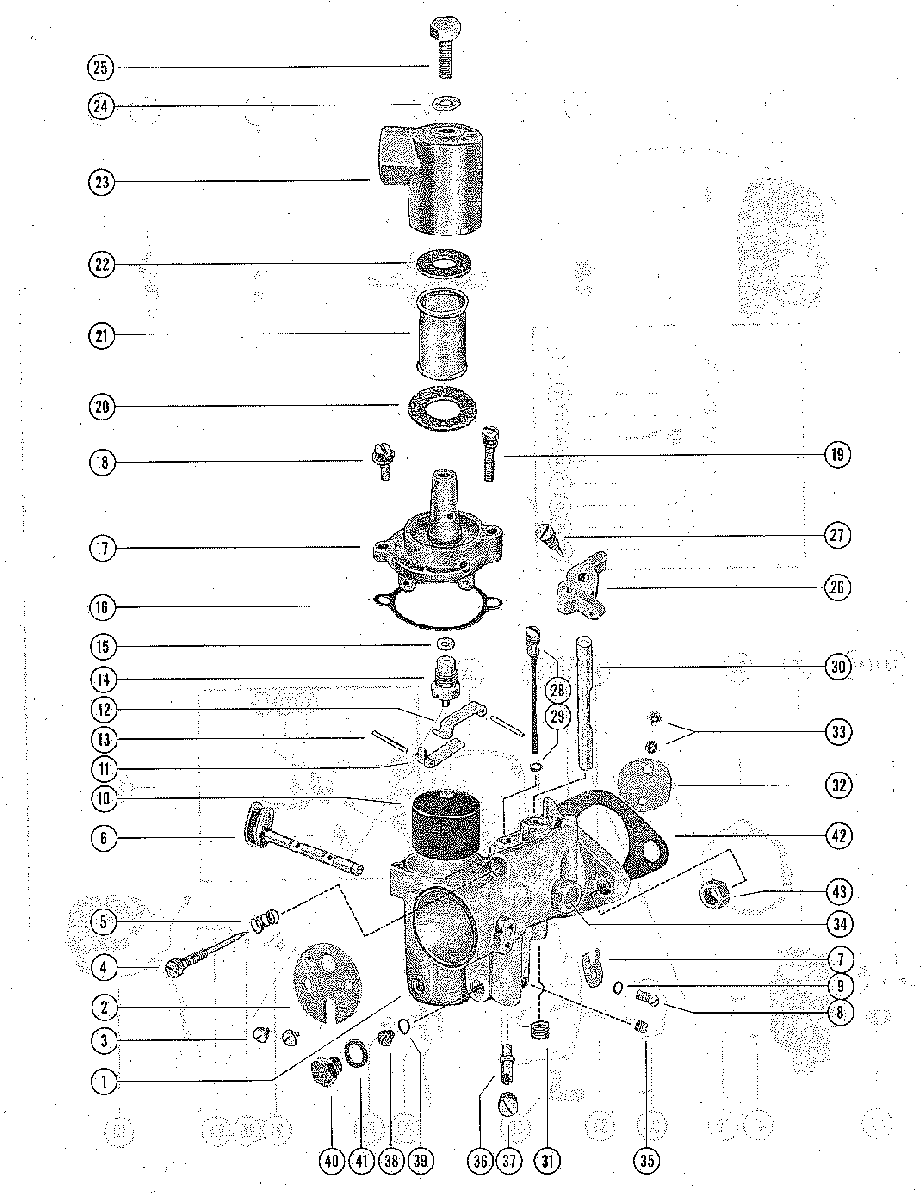

CARBURETOR ASSEMBLY для Mercury - 500 1421113 THRU 1639472
-
№АртикулНазвание
-
11333-2001 CARBURETOR ASSEMBLY, COMPLETE (KA-17A)CARBURETOR ASSEMBLY, COMPLETE (KA-17A)
-
11333-1867 CARBURETOR ASSEMBLY, CMPLETE (KA-13A)CARBURETOR ASSEMBLY, CMPLETE (KA-13A)
-
11333-2002 CARBURETOR ASSEMBLY, COMPLETE (KA-18A)CARBURETOR ASSEMBLY, COMPLETE (KA-18A)
-
21399-1470 SHUTTER, CHOKESHUTTER, CHOKE
-
310-23035 SCREW AND LOCKWASHER, CHOKE SHUTTERSCREW AND LOCKWASHER, CHOKE SHUTTER
-
41399-1713 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
524-27160 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
61399-1469 CHOKE SHAFT AND LEVERCHOKE SHAFT AND LEVER
-
754-28407 CLIP, SHOKE SHAFT RETAININGCLIP, SHOKE SHAFT RETAINING
-
810-28408 SCREW, RETAINING CLIP TO CARBURETORSCREW, RETAINING CLIP TO CARBURETOR
-
913-26995 LOCKWASHER, RETAINING CLIP SCREWLOCKWASHER, RETAINING CLIP SCREW
-
101395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
111399-102 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
121399-101 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
1317-20853 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
141395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
1527-25033 GASKET, INLET SEATGASKET, INLET SEAT
-
161399-99 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
171399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1810-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1910-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
2027-25851 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
211399-3938 SCREE, FILTERSCREE, FILTER
-
2227-25849 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
231399-1135 COVER, STRAINERCOVER, STRAINER
-
2427-25848 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
2510-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
268146791 LEVER, THROTTLE STOP (SEE NOTE BELOW)LEVER, THROTTLE STOP (SEE NOTE BELOW)
-
271395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
281399-1710 TUBE, IDLETUBE, IDLE
-
2927-23180 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
301399-2012 SHAFT, THROTTLESHAFT, THROTTLE
-
3124-20869 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
-
3124-26890 SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
-
321399-1711 SHUTTER, THROTTLESHUTTER, THROTTLE
-
3310-23035 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
3419-20011 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
3510-28845 SCREW, PLUG - BODY CHANNELSCREW, PLUG - BODY CHANNEL
-
3510-23030 SCREW, PLUG - BODY CHANNELSCREW, PLUG - BODY CHANNEL
-
361399-2018 NOZZLE, MAINNOZZLE, MAIN
-
361399-1888 NOZZLE, MAINNOZZLE, MAIN
-
3710-23178 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
381399-1653 JET, MAIN FUEL (.053)JET, MAIN FUEL (.053)
-
381399-1655 JET, MAIN FUEL (.055)JET, MAIN FUEL (.055)
-
381399-1457 JET, MAIN FUEL (.057)JET, MAIN FUEL (.057)
-
381399-1459 JET, MAIN FUEL (.059) -STANDARDJET, MAIN FUEL (.059) -STANDARD
-
381399-1461 JET, MAIN FUEL (.061)JET, MAIN FUEL (.061)
-
3927-28409 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
4010-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
4127-28406 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
--1399-2015 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
4227-757911 GASKET, CARUBRETOR FLANGEGASKET, CARUBRETOR FLANGE
-
4311-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
