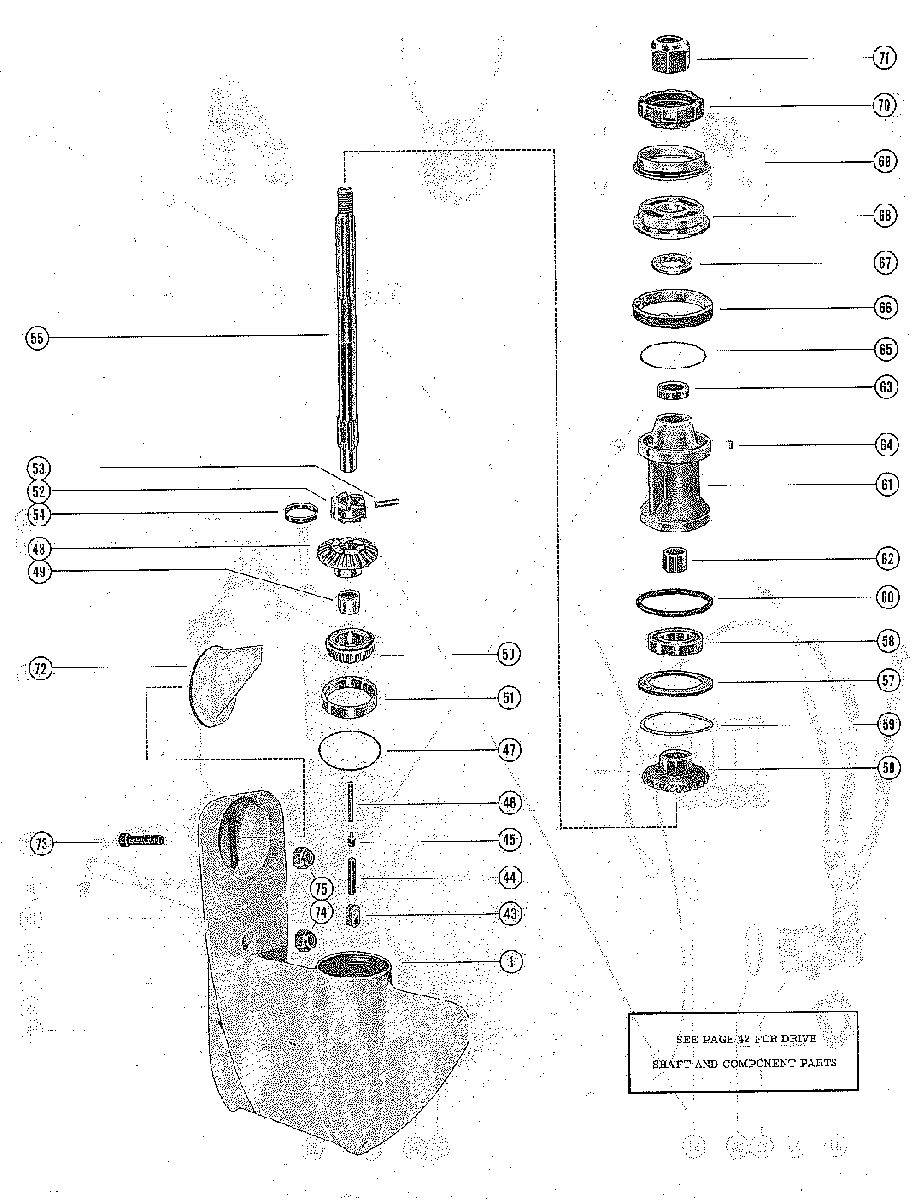

GEAR HOUSING ASSEMBLY, COMPLETE(MERC 500M-2 & 500E-2) (P. 2) для Mercury - 500 1421113 THRU 1639472
-
№АртикулНазвание
-
-1626-2040A3 GEAR HOUSING ASSY.COMP.(STANDARD)-SEE NOTE BELOWGEAR HOUSING ASSY.COMP.(STANDARD)-SEE NOTE BELOW
-
11626-2040A1 GEAR HOUSING ASSEMBLY(SEE PAGE 42 FOR PARTS BREAKDOWN)GEAR HOUSING ASSEMBLY(SEE PAGE 42 FOR PARTS BREAKDOWN)
-
43760394 CAM,SHIFTCAM,SHIFT
-
4420930 FOLLOWER,CAMFOLLOWER,CAM
-
4520843 SLIDEE,CROSS PINSLIDEE,CROSS PIN
-
4624-20254 SPRING,COMPRESSION - CAM FOLLOWERSPRING,COMPRESSION - CAM FOLLOWER
-
4715-31154A1 SHIM,BEARING CUP TO GEAR HOUSINGSHIM,BEARING CUP TO GEAR HOUSING
-
4843-20975A5 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
4931-20249 BEARING,ROLLER - FORWARD GEAR ASSEMBLYBEARING,ROLLER - FORWARD GEAR ASSEMBLY
-
5031-31215A1 TAPARED ROLLER BEARING ASSEMBLYTAPARED ROLLER BEARING ASSEMBLY
-
5131-31216 CUP,TAPERED ROLLER BEARINGCUP,TAPERED ROLLER BEARING
-
5252-32189 RATCHET,SLIDING CLUTCHRATCHET,SLIDING CLUTCH
-
5317-20841 PIN,CROSS - RATCHET TO PROPELLER SHAFTPIN,CROSS - RATCHET TO PROPELLER SHAFT
-
5453-20842 RING,RETAINING - CROSS PINRING,RETAINING - CROSS PIN
-
5544-32000 SHAFT,PROPELLERSHAFT,PROPELLER
-
5643-20975A5 REEVERSE GEAR ASSEMBLYREEVERSE GEAR ASSEMBLY
-
5712-32004 WASHER,THRUST - REVERSE GEARWASHER,THRUST - REVERSE GEAR
-
5830-20839T BEARING,BALL - REVERSE GEARBEARING,BALL - REVERSE GEAR
-
5915-20927A1 SHIM,THRUSTT WASHER TO GEAR HSG.SHIM,THRUSTT WASHER TO GEAR HSG.
-
6025-31986 "O"RING,BEARING CARRIER"O"RING,BEARING CARRIER
-
6153014T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6231-20249 BEARING,ROLLER - BEARING CARRIERBEARING,ROLLER - BEARING CARRIER
-
6326-90562 OIL SEAL,BEARING CARRIEROIL SEAL,BEARING CARRIER
-
6428-30281 KEY,LOCATING - BEARING CARRIERKEY,LOCATING - BEARING CARRIER
-
6512-31993 WASHER,GEAR HOUSING COVERWASHER,GEAR HOUSING COVER
-
6611-87763 COVER,GEAR HOUSINGCOVER,GEAR HOUSING
-
6712-25251 WASHER,BACKING - PROPELLER SHAFT(1/8)WASHER,BACKING - PROPELLER SHAFT(1/8)
-
6838859A1 THRUSTT HUB AND WAHSER ASSEMBLYTHRUSTT HUB AND WAHSER ASSEMBLY
-
6912-31992 WASHER,CUPPED - THRUST HUBWASHER,CUPPED - THRUST HUB
-
7012-32007 WASHER,SPLINED - PROPELLER SHAFTWASHER,SPLINED - PROPELLER SHAFT
-
7111-82671120 NUT,PROPELLERNUT,PROPELLER
-
7297-31640Q4 TRIM TAB,GEAR HOUSINGTRIM TAB,GEAR HOUSING
-
7310-32470 SCREW,TRIM TAB TO GEAR HOUSINGSCREW,TRIM TAB TO GEAR HOUSING
-
7411-34933 NUT,DRIVE SHAFT HOUSING TO GEAR HOUSING ST(7/16)NUT,DRIVE SHAFT HOUSING TO GEAR HOUSING ST(7/16)
-
7511-23161 NUT,DRIVE SHAFT HOUSING TO GEAR HOUSING STUD(3/8)NUT,DRIVE SHAFT HOUSING TO GEAR HOUSING STUD(3/8)
