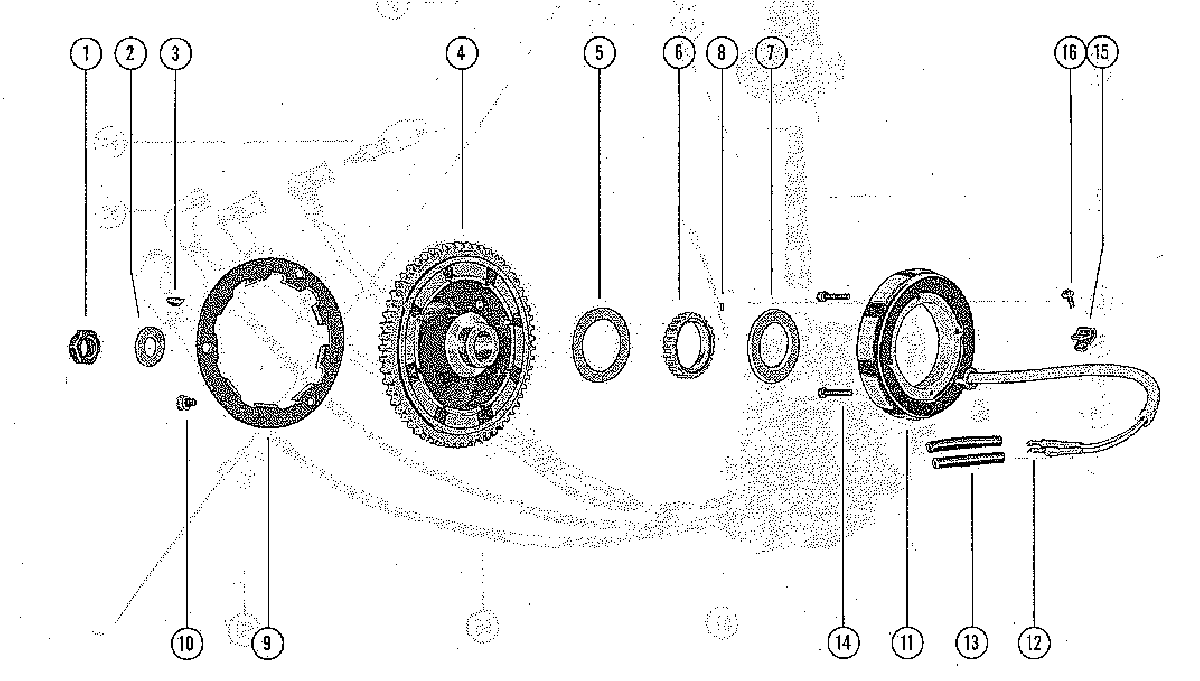

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 500 1421113 THRU 1639472
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-26617 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4223-2402A7 FLYWHEEL ASSEMBLY - NOT AS SHOWNFLYWHEEL ASSEMBLY - NOT AS SHOWN
-
4215-3289A1 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
4215-1850A4 FLYWHEEL ASSEMBLY
SERIAL )1477910-01480087FLYWHEEL ASSEMBLY
SERIAL )1477910-01480087 -
4215-2026A2 FLYWHEEL ASSEMBLY
SERIAL )1480088-01480159FLYWHEEL ASSEMBLY
SERIAL )1480088-01480159 -
529788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
630306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
729787 HUB, FLANGE - FLYWHEEL PULLEYHUB, FLANGE - FLYWHEEL PULLEY
-
817-26618 DOWEL PIN, FLYWHEEL PULLEYDOWEL PIN, FLYWHEEL PULLEY
-
950-25263 RATCHET, FLYWHEEL LATER FLYWHEELS HAVE CAST ON RATCHETRATCHET, FLYWHEEL LATER FLYWHEELS HAVE CAST ON RATCHET
-
1010-29238 SCRW,RATCHET TO FLYWHL LATER FLYWHEELS HAVE CAST ON RATCHETSCRW,RATCHET TO FLYWHL LATER FLYWHEELS HAVE CAST ON RATCHET
-
11398-1455 STATOR, ALTERNATOR - FLYWHEEL
SERIAL )1477910-01480087STATOR, ALTERNATOR - FLYWHEEL
SERIAL )1477910-01480087 -
11398-2085A1 STATOR, ALTERNATOR - FLYWHEEL
SERIAL )1480088-01480159STATOR, ALTERNATOR - FLYWHEEL
SERIAL )1480088-01480159 -
11398-2085A1 STATOR, ALTERNATOR - FLYWHEELSTATOR, ALTERNATOR - FLYWHEEL
-
1222647 DISCONNECT, KNIFE SPLICE - STATOR LEAD WIREDISCONNECT, KNIFE SPLICE - STATOR LEAD WIRE
-
1332-61115 SLEEVE, RUBBER - STATOR LEAD WIRESLEEVE, RUBBER - STATOR LEAD WIRE
-
1410-68918 SCREW, STATOR TO UPPER END CAP
SERIAL )1477910-01480087SCREW, STATOR TO UPPER END CAP
SERIAL )1477910-01480087 -
1410-57021 SCREW, STATOR TO UPPER END CAP
SERIAL )1480088-01480159SCREW, STATOR TO UPPER END CAP
SERIAL )1480088-01480159 -
1554-24836 CLIP, STATOR LEAD TO CRANKCASE FLANGECLIP, STATOR LEAD TO CRANKCASE FLANGE
-
1610-8M0113176 SCREW, STATOR LEAD CLIP FASTENINGSCREW, STATOR LEAD CLIP FASTENING
