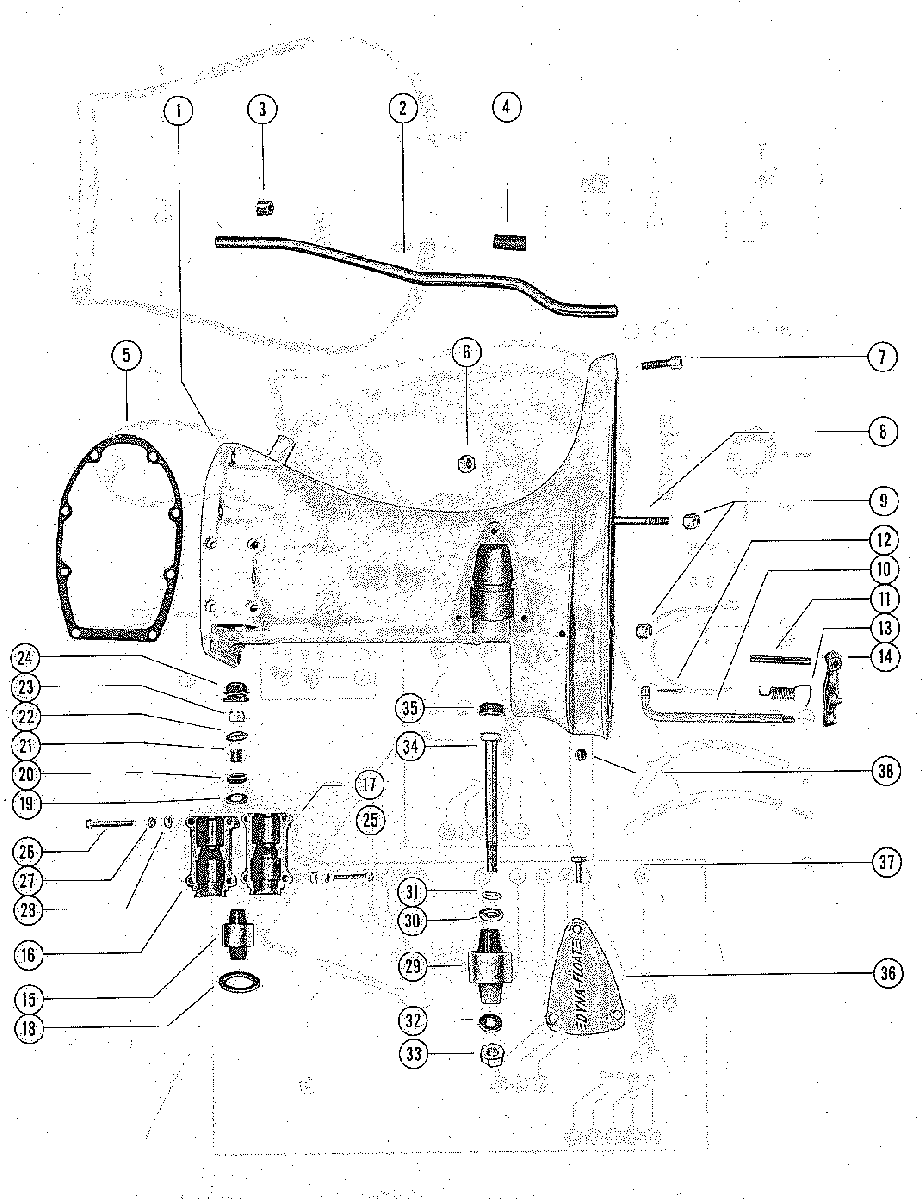

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 500 1421113 THRU 1639472

  • №
    Артикул
    Название
  • 1
    1522-1567 DRIVE SHAFT HOUSING
    DRIVE SHAFT HOUSING
  • 2
    32-31117 TUBE, WATER INLET
    TUBE, WATER INLET
  • 3
    26-25192 SEAL, WATER INLET TUBE
    SEAL, WATER INLET TUBE
  • 4
    23-23651 SLEEVE, WATER INLET TUBE
    SLEEVE, WATER INLET TUBE
  • 5
    27-24899 GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
    GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
  • 6
    11-862902 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 7
    10-25093 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 8
    16-29103 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 9
    11-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
  • 10
    28470 ROD, PUSH-REVERSE LOCK
    ROD, PUSH-REVERSE LOCK
  • 11
    17-24887 PIN, REVERSE LOCK LEVER
    PIN, REVERSE LOCK LEVER
  • 12
    18-25191 COTTER PIN, PUSH ROD
    COTTER PIN, PUSH ROD
  • 13
    24-25122 SPRING, TENSION-PUSH ROD
    SPRING, TENSION-PUSH ROD
  • 14
    52920 LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 15
    24926A1 MOUNT, RUBBER-UPPER
    MOUNT, RUBBER-UPPER
  • 16
    79680A1 COVER, UPPER MOUNT-OUTSIDE HALF
    COVER, UPPER MOUNT-OUTSIDE HALF
  • 17
    79680A1 COVER, UPPER MOUNT-INSIDE HALF
    COVER, UPPER MOUNT-INSIDE HALF
  • 18
    24929 PACKING, "U" CUP
    PACKING, "U" CUP
  • 19
    12-24889 WASHER, UPPER MOUNT BOLT (17/32 ID)
    WASHER, UPPER MOUNT BOLT (17/32 ID)
  • 20
    12-24891 WASHER, RUBBER-UPPER MOUNT BOLT
    WASHER, RUBBER-UPPER MOUNT BOLT
  • 21
    23-30474 SPACER, UPPER MOUNT BOLT
    SPACER, UPPER MOUNT BOLT
  • 22
    12-11367 WASHER, UPPER MOUNT BOLT (25/64 ID)
    WASHER, UPPER MOUNT BOLT (25/64 ID)
  • 23
    11-23161 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 24
    25305 CAP, RUBBER-UPPER MOUNT BOLT NUT
    CAP, RUBBER-UPPER MOUNT BOLT NUT
  • 25
    10-28772 SCREW, UPPER MOUNT COVER (1 1/2")
    SCREW, UPPER MOUNT COVER (1 1/2")
  • 26
    10-37941 SCREW, UPPER MOUNT COVER (1 3/4")
    SCREW, UPPER MOUNT COVER (1 3/4")
  • 27
    12-29245 WASHER, MOUNTING COVER SCREW
    WASHER, MOUNTING COVER SCREW
  • 28
    11-35888 NUT, MOUNTING COVER SCREW
    NUT, MOUNTING COVER SCREW
  • 29
    75304T1 MOUNT, RUBBER-LOWER
    MOUNT, RUBBER-LOWER
  • 30
    12-28053 WASHER, RUBBER-LOWER MOUNT
    WASHER, RUBBER-LOWER MOUNT
  • 31
    12-28051 WASHER, LOWER MOUNT
    WASHER, LOWER MOUNT
  • 32
    12-30119 WASHER, MOUNTING SCREW (1/8")
    WASHER, MOUNTING SCREW (1/8")
  • 33
    11-25096 NUT, MOUNTING SCREW
    NUT, MOUNTING SCREW
  • 34
    10-75284 SCREW, LOWER MOUNT (5 1/2")
    SCREW, LOWER MOUNT (5 1/2")
  • 35
    25067 BUMPER, RUBBER-MOUNTING SCREW
    BUMPER, RUBBER-MOUNTING SCREW
  • 36
    28241 COVER, LOWER MOUNT (PORT SIDE)
    COVER, LOWER MOUNT (PORT SIDE)
  • 36
    28242 COVER, LOWER MOUNT (STARBOARD SIDE)
    COVER, LOWER MOUNT (STARBOARD SIDE)
  • 37
    10-29256 SCREW, LOWER MOUNT COVER FASTENING
    SCREW, LOWER MOUNT COVER FASTENING
  • 38
    22-390721 PLUG,GREASE-REVERSE LOCK HOLE
    PLUG,GREASE-REVERSE LOCK HOLE
