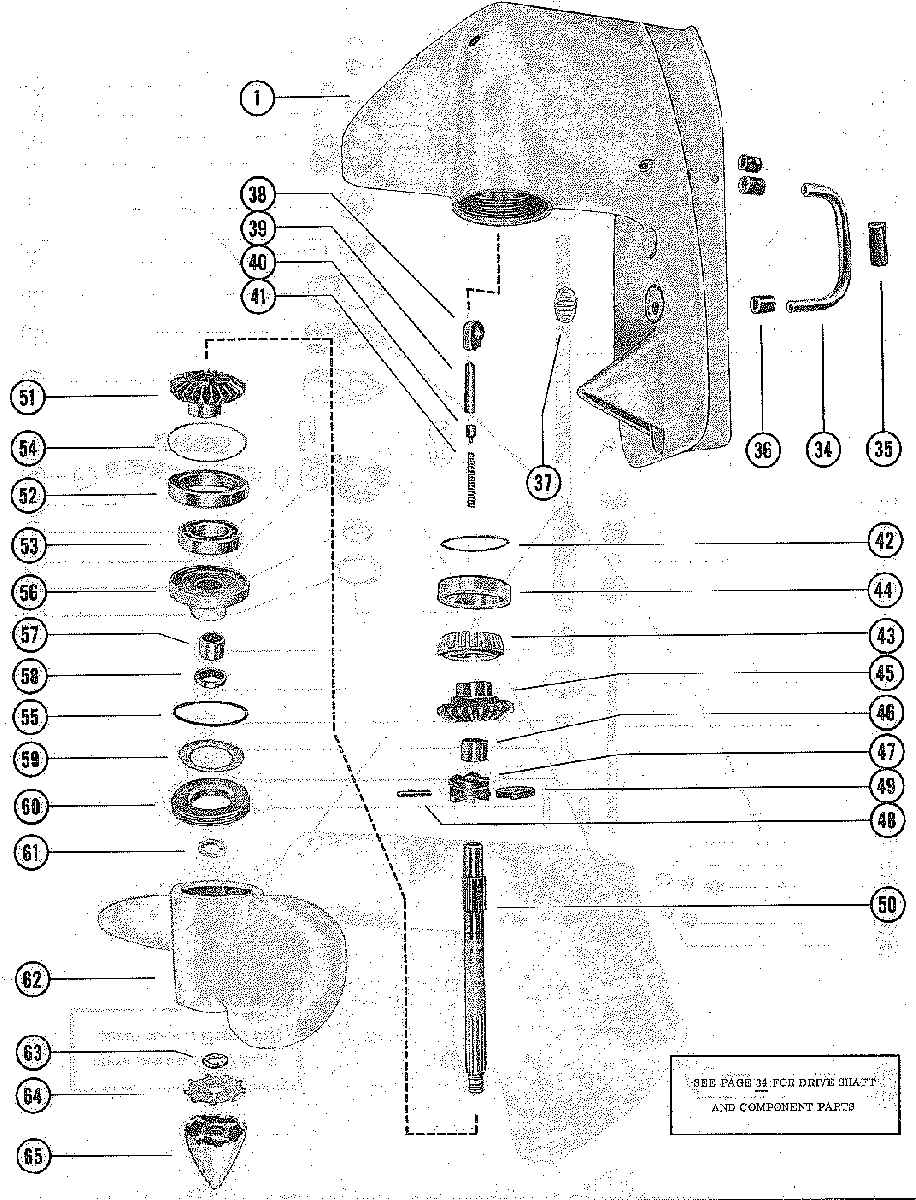

GEAR HOUSING ASSEMBLY, COMPLETE(MERC 500M & E) (PAGE 2) для Mercury - 500 1421113 THRU 1639472

  • №
    Артикул
    Название
  • -
    1603-1868A2 GEAR HOUSING ASSEMBLY, COMPLETE
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE
    SEE NOTE BELOW
  • 1
    1603-1868A1 GEAR HOUSING ASSEMBLY
    SEE PAGE 34 FOR PARTS BREAKDOWN
    GEAR HOUSING ASSEMBLY
    SEE PAGE 34 FOR PARTS BREAKDOWN
  • 34
    32-23652 TUBE, WATER INLET - LOWER
    TUBE, WATER INLET - LOWER
  • 35
    23-23651 SLEEVE, WATER INLET TUBE
    SLEEVE, WATER INLET TUBE
  • 36
    26-20232 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 37
    35-23654 SCREEN, WATER INTAKE - GEAR HOUSING
    SCREEN, WATER INTAKE - GEAR HOUSING
  • --
    27-31367 GASKET, WATER INTAKE SCREEN TO GEAR HOUSING
    SERIAL 01448240-01460498
    GASKET, WATER INTAKE SCREEN TO GEAR HOUSING
    SERIAL 01448240-01460498
  • 38
    760394 CAM, SHIFT
    CAM, SHIFT
  • 39
    20930 FOLLOWER, CAM
    FOLLOWER, CAM
  • 40
    20843 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 41
    24-20254 SPRING, CAM FOLLOWER PIN
    SPRING, CAM FOLLOWER PIN
  • 42
    15-31154A1 SHIM, TAPERED BEARING CUP TO HOUSING
    SHIM, TAPERED BEARING CUP TO HOUSING
  • --
    43-20975A5 FORWARD GEAR ASSEMBLY, COMPLETE
    FORWARD GEAR ASSEMBLY, COMPLETE
  • 43
    31-31215A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 44
    31-31216 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 45
    43-20975A5 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 46
    31-20249 BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 47
    52-32189 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 48
    17-20841 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 49
    53-20842 RING, RETAINING - CROSS PIN
    RING, RETAINING - CROSS PIN
  • 50
    44-25254 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • --
    43-20975A5 REVERSE GEAR ASSEMBLY, COMPLETE
    REVERSE GEAR ASSEMBLY, COMPLETE
  • 51
    43-20975A5 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 52
    20864 RING, ADAPTOR - BALL BEARING
    RING, ADAPTOR - BALL BEARING
  • 53
    30-20839T BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 54
    15-20927A1 SHIM, ADAPTOR RING TO GEAR HOUSING
    SHIM, ADAPTOR RING TO GEAR HOUSING
  • 55
    25-20863 "O"RING, BEARING CARRIER
    "O"RING, BEARING CARRIER
  • 56
    20862A1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 57
    31-20249 BEARING, ROLLER
    BEARING, ROLLER
  • 58
    26-90562 OIL SEAL
    OIL SEAL
  • 59
    12-22970 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 60
    20865 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 61
    12-25251 WASHER, BACKING (1/8)
    WASHER, BACKING (1/8)
  • 62
    48-22914A2 PROPELLER ASSEMBLY, COMPLETE (2 BLADE - ALUMINUM)
    PROPELLER ASSEMBLY, COMPLETE (2 BLADE - ALUMINUM)
  • 63
    12-25252 WASHER, BACKING (1/32)
    WASHER, BACKING (1/32)
  • 64
    14-25250 TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 65
    11-29825 NUT, PROPELLER (ALUMINUM)
    NUT, PROPELLER (ALUMINUM)
  • 65
    11-29825 NUT, PROPELLER (NYLON)
    NUT, PROPELLER (NYLON)
