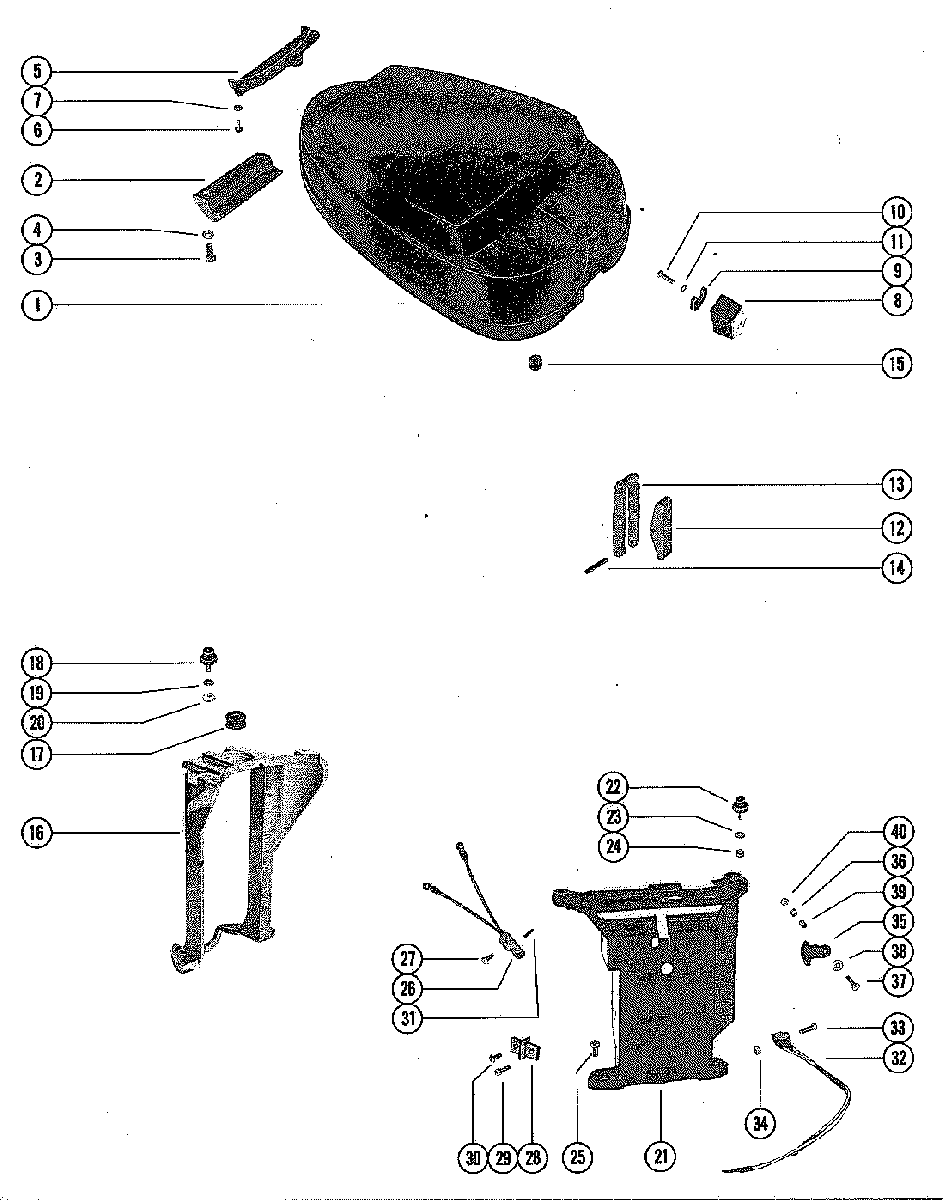

TOP COWL ASSEMBLY для Mercury - 500, 50 8030090 THRU 8063984

  • №
    Артикул
    Название
  • 1
    2153-7938 TOP COWL (MANUAL)
    TOP COWL (MANUAL)
  • 1
    2153-7937A8 TOP COL (ELECTRIC)
    TOP COL (ELECTRIC)
  • 2
    55455 HOOK, TOP COWL ALTCH - REAR
    HOOK, TOP COWL ALTCH - REAR
  • 3
    10-22956 SCREW, REAR HOOK TO TOP COWL (7/8")
    SCREW, REAR HOOK TO TOP COWL (7/8")
  • 4
    13-26992 LOCKWASHER, REAR HOOK MOUNTING SCREW
    LOCKWASHER, REAR HOOK MOUNTING SCREW
  • 5
    37690 SHIELD, REAR - TOP COWL
    SHIELD, REAR - TOP COWL
  • 6
    10-37370 SCREW, REAR SHIELD TO TOP COWL
    SCREW, REAR SHIELD TO TOP COWL
  • 7
    13-37371 LOCKWASHER, REAR SHIELD SCREW
    LOCKWASHER, REAR SHIELD SCREW
  • 8
    55459A5 RETAINER ASSEMBLY, TOP COWL
    RETAINER ASSEMBLY, TOP COWL
  • 9
    35496 PAD, BUMPER - TOP COWL RETAINER
    PAD, BUMPER - TOP COWL RETAINER
  • 10
    10-35386 SCREW, RETAINER TO TOP COW (1")
    SCREW, RETAINER TO TOP COW (1")
  • 11
    13-39107 LOCKWASHER, RETIANER TO TOP COWL SCREW
    LOCKWASHER, RETIANER TO TOP COWL SCREW
  • 12
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
  • 13
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
  • 14
    17-58998 PIN, COWL LATCH LEVER TO HINGE
    PIN, COWL LATCH LEVER TO HINGE
  • 15
    25-20116 GROMMET, CHOKE KNOB - TOP COWL (MANUAL)
    GROMMET, CHOKE KNOB - TOP COWL (MANUAL)
  • 16
    720201 BRACKET, REAR COWL SUPPORT
    BRACKET, REAR COWL SUPPORT
  • 18
    60577 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 19
    12-69056 WASHER, REAR SUPPORT BRACKET RUBBER MOUNT
    WASHER, REAR SUPPORT BRACKET RUBBER MOUNT
  • 20
    11-29598 NUT, REAR SUPPORT BRACKET RUBBER MOUNT
    NUT, REAR SUPPORT BRACKET RUBBER MOUNT
  • 21
    99150A5 BRACKET ASSEMBLY, FRONT SUPPORT
    BRACKET ASSEMBLY, FRONT SUPPORT
  • 22
    31014 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 23
    13-26992 LOCKWASHER
    FRONT SUPPORT BRACKET RUBBER MOUNT
    LOCKWASHER
    FRONT SUPPORT BRACKET RUBBER MOUNT
  • 24
    11-29598 NUT, FRONT SUPPORT BRACKET RUBBER MOUNT
    NUT, FRONT SUPPORT BRACKET RUBBER MOUNT
  • 25
    10-37562 SCREW
    FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
    SCREW
    FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
  • 26
    58124A20 SWITCH ASSEMBLY, MERCURY
    SWITCH ASSEMBLY, MERCURY
  • 27
    10-69235 SCREW, SWITCH TO FRONT BRACKET (1/2")
    SCREW, SWITCH TO FRONT BRACKET (1/2")
  • 28
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 29
    10-20411 SCREW
    TEMRINAL BLOCK TO FRONT BRACKET (5/8")
    SCREW
    TEMRINAL BLOCK TO FRONT BRACKET (5/8")
  • 30
    10-69079 SCREW, HARNESS LEADS ATTACHING (1/2")
    SCREW, HARNESS LEADS ATTACHING (1/2")
  • 31
    17-36242 ROLL PINE, MERCURY SWITCH
    ROLL PINE, MERCURY SWITCH
  • 32
    87-74605A4 SWITCH ASSEMBLY
    NEUTRAL START USE WITH TILLER HANDLE MODELS
    SWITCH ASSEMBLY
    NEUTRAL START USE WITH TILLER HANDLE MODELS
  • 33
    10-64332 SCREW, SWITCH TO FRONT BRACKET
    SCREW, SWITCH TO FRONT BRACKET
  • 34
    11-24832 NUT, SWITCH SCREW
    NUT, SWITCH SCREW
  • 35
    97411 ACTUATOR, INTERLOCK
    ACTUATOR, INTERLOCK
  • 36
    24-88099 SPRING, INTERLOCK ACTUATOR
    SPRING, INTERLOCK ACTUATOR
  • 37
    10-37892 SCREW, ACTUATOR TO FRONT BRACKET
    SCREW, ACTUATOR TO FRONT BRACKET
  • 38
    12-22887 WASHER, ACTUATOR SCREW
    WASHER, ACTUATOR SCREW
  • 39
    23-88100 SPACER, ACTUATOR SCREW
    SPACER, ACTUATOR SCREW
  • 40
    11-859124 NUT, ACTUATOR SCREW
    NUT, ACTUATOR SCREW
