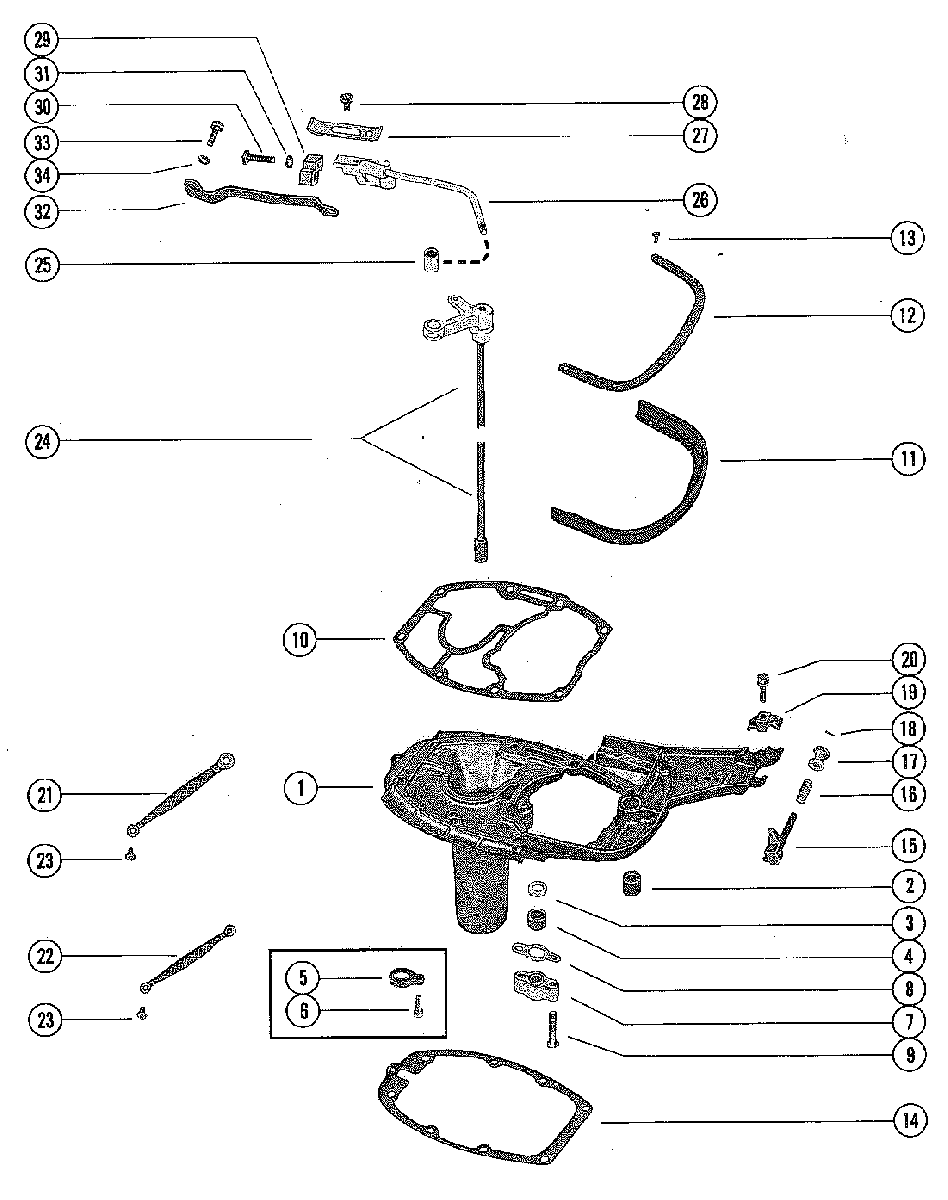

EXHAUST EXTENSION PLATE AND SHIFT LINKAGE для Mercury - 500, 50 8030090 THRU 8063984

№

Артикул

Название
1

42819A2 PLATE ASSEMBLY, EXHAUST EXTENSION
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOW

PLATE ASSEMBLY, EXHAUST EXTENSION
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOW

0 ₽
1

42819A2 PLATE ASSEMBLY, EXHAUST EXTENSION
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP

PLATE ASSEMBLY, EXHAUST EXTENSION
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP

0 ₽
2

23-27132 BUSHING, EXHAUST EXTENSION PLATE

BUSHING, EXHAUST EXTENSION PLATE

410 ₽
3

12-38453 WASHER, NYLON-WATER INLET TUBE

WASHER, NYLON-WATER INLET TUBE

120 ₽
4

26-38452 SEAL, RUBBER-WATER TUBE

SEAL, RUBBER-WATER TUBE

350 ₽
5

38500 RETAINER, WATER TUBE SEAL
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOW

RETAINER, WATER TUBE SEAL
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOW

0 ₽
6

10-69069 SCREW, RETAINER TO PLATE (3/4")

SCREW, RETAINER TO PLATE (3/4")

0 ₽
7

79799 HOUSING, WATER INLET TUBE SEAL
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP

HOUSING, WATER INLET TUBE SEAL
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP

0 ₽
8

27-797971 GASKET, HOUSING

GASKET, HOUSING

150 ₽
9

10-79798 SCREW, HOUSING TO EXHAUST PLATE (1 3/8")

SCREW, HOUSING TO EXHAUST PLATE (1 3/8")

0 ₽
10

27-796501 GASKET
POWERHEAD TO EXHAUST EXTENSION PLATE

GASKET
POWERHEAD TO EXHAUST EXTENSION PLATE

1 400 ₽
11

38156 SEAL, RUBBER - EHAUST EXTENSION PLATE

SEAL, RUBBER - EHAUST EXTENSION PLATE

0 ₽
12

99136 STRIP, RUBBER SEAL RETAINING

STRIP, RUBBER SEAL RETAINING

0 ₽
13

10-37571 SCREW
RETAINING STRIP TO EXHAUST EXTENSION PLATE (1/2")

SCREW
RETAINING STRIP TO EXHAUST EXTENSION PLATE (1/2")

260 ₽
14

27-385011 GASKET
EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING

GASKET
EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING

750 ₽
15

59037A2 LEVER, THROTTLE AND SHIFT CABLES

LEVER, THROTTLE AND SHIFT CABLES

0 ₽
16

24-38005 SPRING, COMPRESSION - QUICK DISCONNECT LEVER

SPRING, COMPRESSION - QUICK DISCONNECT LEVER

0 ₽
17

23-37927 BUSHING, NYLON - QUICK DISCONNECT LEVER

BUSHING, NYLON - QUICK DISCONNECT LEVER

0 ₽
18

17-239281 PIN, ROLL - QUICK DISCONNECT LEVER

PIN, ROLL - QUICK DISCONNECT LEVER

270 ₽
19

37926 RETAINER
NYLON BEARING TO EXHAUST EXTENSION PLATE

RETAINER
NYLON BEARING TO EXHAUST EXTENSION PLATE

0 ₽
20

10-37923 SCREW
RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")

SCREW
RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")

0 ₽
21

46933A1 GROUND STRAP ASSEMBLY
CRANKCASE TO COWL (3 5/8")

GROUND STRAP ASSEMBLY
CRANKCASE TO COWL (3 5/8")

0 ₽
22

46933A2 GROUND STRAP ASSEMBLY
HOUSING TO COWL (3 3/8")

GROUND STRAP ASSEMBLY
HOUSING TO COWL (3 3/8")

0 ₽
23

10-62568 SCREW, GROUND STRAP (3/8" SELF TAPPING)

SCREW, GROUND STRAP (3/8" SELF TAPPING)

70 ₽
24

75007A1 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249 CANADA 7068998 THRU 7088597

SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249 CANADA 7068998 THRU 7088597

0 ₽
24

75008A4 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)

SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)

0 ₽
24

74923A1 SHIFT SHAFT, UPPER (SHORT SHAFT)
UNITED STATES 4576237 THRU 4705992
AUSTRALIA 8042650 THRU 8044724
BELGIUM 9136250 THRU 9155279
CANADA 7088598 THRU 7097572

SHIFT SHAFT, UPPER (SHORT SHAFT)
UNITED STATES 4576237 THRU 4705992
AUSTRALIA 8042650 THRU 8044724
BELGIUM 9136250 THRU 9155279
CANADA 7088598 THRU 7097572

0 ₽
24

74923A2 SHIFT ASSEMBLY, UPPER (LONG SHAFT)

SHIFT ASSEMBLY, UPPER (LONG SHAFT)

0 ₽
24

76632A3 SHIFT SHAFT ASSMEBLY, UPPER (SHORT SHAFT)
UNITED STATES 4705993 THRU 4962055 AUSTRALIA 8044725 THRU 8053229
BELGIUM 9155280 THRU 9195685
CANADA 7097573 THRU 7115572

SHIFT SHAFT ASSMEBLY, UPPER (SHORT SHAFT)
UNITED STATES 4705993 THRU 4962055 AUSTRALIA 8044725 THRU 8053229
BELGIUM 9155280 THRU 9195685
CANADA 7097573 THRU 7115572

0 ₽
24

76632A4 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)

SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)

0 ₽
24

76632A3 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP

SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP

0 ₽
24

76632A4 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)

SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)

0 ₽
25

60572 BARREL, NYLON - UPPER SHIFT SHAFT

BARREL, NYLON - UPPER SHIFT SHAFT

500 ₽
26

74739A3 ACTUATOR ASSEMBLY, SHIFT CONTROL

ACTUATOR ASSEMBLY, SHIFT CONTROL

0 ₽
27

24-37934 SPRING, SHIFT CABLE

SPRING, SHIFT CABLE

0 ₽
28

10-38069 SCREW, SPRING TO ACTUATOR

SCREW, SPRING TO ACTUATOR

0 ₽
29

37932 BEARING, NYLON - SHIFT CONTROL ACTUATOR

BEARING, NYLON - SHIFT CONTROL ACTUATOR

0 ₽
30

10-36137 SCREW
BEARING TO SHIFT CONTROL ACTUATOR (1")

SCREW
BEARING TO SHIFT CONTROL ACTUATOR (1")

190 ₽
31

13-21272 LOCKWASHER, BEARING SCREW

LOCKWASHER, BEARING SCREW

70 ₽
32

37935 RAIL, SHIFT CONTROL BEARING

RAIL, SHIFT CONTROL BEARING

0 ₽
33

10-69028 SCREW
RAIL TO EXHAUST MANIFOLD COVER (3/4")

SCREW
RAIL TO EXHAUST MANIFOLD COVER (3/4")

180 ₽
34

13-26992 LOCKWASHER, RAIL SCREW

LOCKWASHER, RAIL SCREW

70 ₽
-

27-72486A32 GASKET SET

GASKET SET

6 780 ₽
-

27-72486A32 GASKET SET

GASKET SET

6 780 ₽
