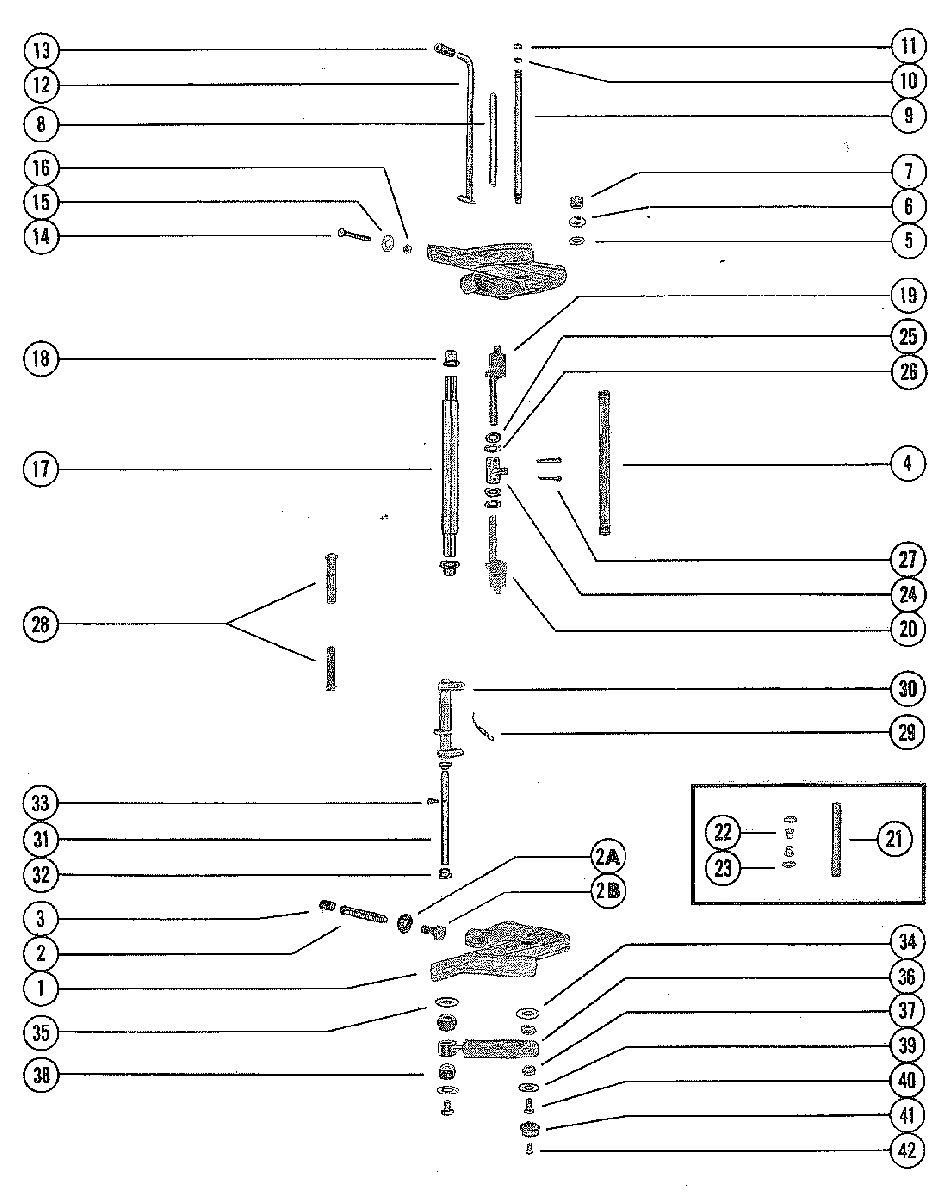

CLAMP BRACKET ASSEMBLY для Mercury - 500, 50 8030090 THRU 8063984

  • №
    Артикул
    Название
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    WASHER ATTACHED WITH A RETAINING RING
    CLAMP BRACKET ASSEMBLY
    WASHER ATTACHED WITH A RETAINING RING
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    WASHER ATTACHED WITH A RETAINING RING
    THUMB SCREW ASSEMBLY
    WASHER ATTACHED WITH A RETAINING RING
  • 3
    75043 CAP, THUMB SCREW
    WASHER ATTACHED WITH A RETAINING RING
    CAP, THUMB SCREW
    WASHER ATTACHED WITH A RETAINING RING
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    WASHER ATTACHED WITH A SCREW
    CLAMP BRACKET ASSEMBLY
    WASHER ATTACHED WITH A SCREW
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    WASHER ATTACHED WITH A SCREW
    THUMB SCREW ASSEMBLY
    WASHER ATTACHED WITH A SCREW
  • 2A
    12-78493 WASHER, THUMB SCREW
    WASHER ATTACHED WITH A SCREW
    WASHER, THUMB SCREW
    WASHER ATTACHED WITH A SCREW
  • 2B
    10-78495 SCREW, WASHER TO THUMB SCREW
    WASHER ATTACHED WITH A SCREW
    SCREW, WASHER TO THUMB SCREW
    WASHER ATTACHED WITH A SCREW
  • 3
    75043 CAP, THUMB SCREW
    WASHER ATTACHED WITH A SCREW
    CAP, THUMB SCREW
    WASHER ATTACHED WITH A SCREW
  • 4
    8M0041936 TUBE, TILT
    CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT
    CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 WASHER, CLAMP BRACKET TILT TUBE
    WASHER, CLAMP BRACKET TILT TUBE
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 9
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    32-28052 SLEEVE, RUBBER - TILT LOCK PIN BUMPER
    SLEEVE, RUBBER - TILT LOCK PIN BUMPER
  • 14
    10-68298 BOLT
    CLAMP BRACKET TO BOAT TRANSOM (3 1/4") - OLD STYLE CLAMP BRACKET
    BOLT
    CLAMP BRACKET TO BOAT TRANSOM (3 1/4") - OLD STYLE CLAMP BRACKET
  • 14
    10-87302 BOLT, CLAMP BRACKET TO TRANSOM (5")
    NEW STYLE CLAMP BRACKET
    BOLT, CLAMP BRACKET TO TRANSOM (5")
    NEW STYLE CLAMP BRACKET
  • 15
    12-28420 WASHER, CLAMP BRACKET BOLT
    NEW STYLE CLAMP BRACKET
    WASHER, CLAMP BRACKET BOLT
    NEW STYLE CLAMP BRACKET
  • 15
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 14
    10-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")
    BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")
  • 15
    12-68300 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 16
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 17
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 18
    23-73203 BUSHING, CLAMP BRACKET
    BUSHING, CLAMP BRACKET
  • 19
    76386 TILT LOCK ASSEMBLY, STARBOARD
    TILT LOCK ASSEMBLY, STARBOARD
  • 20
    76385T TILT LOCK ASSEMBLY, PORT
    TILT LOCK ASSEMBLY, PORT
  • 21
    47802 TUBE, TILT LOCK
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
    TUBE, TILT LOCK
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
  • 22
    23-71574 BUSHING, TILT LOCK TUBE
    BUSHING, TILT LOCK TUBE
  • 23
    13-69150 WASHER, WAVE - TILT LOCK TUBE
    WASHER, WAVE - TILT LOCK TUBE
  • 24
    79659 COUPLING, TILT LOCK
    COUPLING, TILT LOCK
  • 25
    12-76388 WASHER, TILT LOCK
    WASHER, TILT LOCK
  • 26
    25-627021 "O" RING, TILT LOCK
    "O" RING, TILT LOCK
  • 27
    18-47959 COTTER PIN, TILT LOCK TUBE
    COTTER PIN, TILT LOCK TUBE
  • 28
    55-696531 PIN, LOWER SHOCK MOUNTING
    PIN, LOWER SHOCK MOUNTING
  • 29
    24-29821 SPRING, REVERSE LOCK TENSION
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
    SPRING, REVERSE LOCK TENSION
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
  • 29
    24-78203A2 SPRING, REVERSE LOCK TENSION
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    SPRING, REVERSE LOCK TENSION
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 30
    87432 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 31
    56349 SHAFT, REVERSE LOCK PIVOT
    SHAFT, REVERSE LOCK PIVOT
  • 32
    23-69132 BUSHING, REVERSE PIVOT SHAFT
    BUSHING, REVERSE PIVOT SHAFT
  • 33
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 34
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
  • 35
    12-59378 WASHER, LOWER BUSHING RETAINER (INNER)
    WASHER, LOWER BUSHING RETAINER (INNER)
  • 36
    55-58780A7 SHOCK ABSORBER
    SHOCK ABSORBER
  • 37
    23-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
  • 38
    23-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
  • 39
    12-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 40
    10-69375A1 SCREW
    UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    SCREW
    UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 39
    12-69374 WASHER
    UPPER AND LOWER BUSHING RETAINER (OUTER)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELIGUM 9136250 AND UP
    CANADA 7088598 AND UP
    WASHER
    UPPER AND LOWER BUSHING RETAINER (OUTER)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELIGUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 40
    10-69375 SCREW
    UPPER AND LOWER SHOCK MOUNTING PIN (5/8")
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELIGUM 9136250 AND UP
    CANADA 7088598 AND UP
    SCREW
    UPPER AND LOWER SHOCK MOUNTING PIN (5/8")
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELIGUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 41
    70679 COVER
    UPPER AND LOWER SHOCK MOUNTING PIN
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    COVER
    UPPER AND LOWER SHOCK MOUNTING PIN
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 42
    10-37655 SCREW
    COVER TO SHOCK MOUNTING SCREWS (1/2")
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    SCREW
    COVER TO SHOCK MOUNTING SCREWS (1/2")
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • -
    27-72486A32 GASKET SET
    GASKET SET
