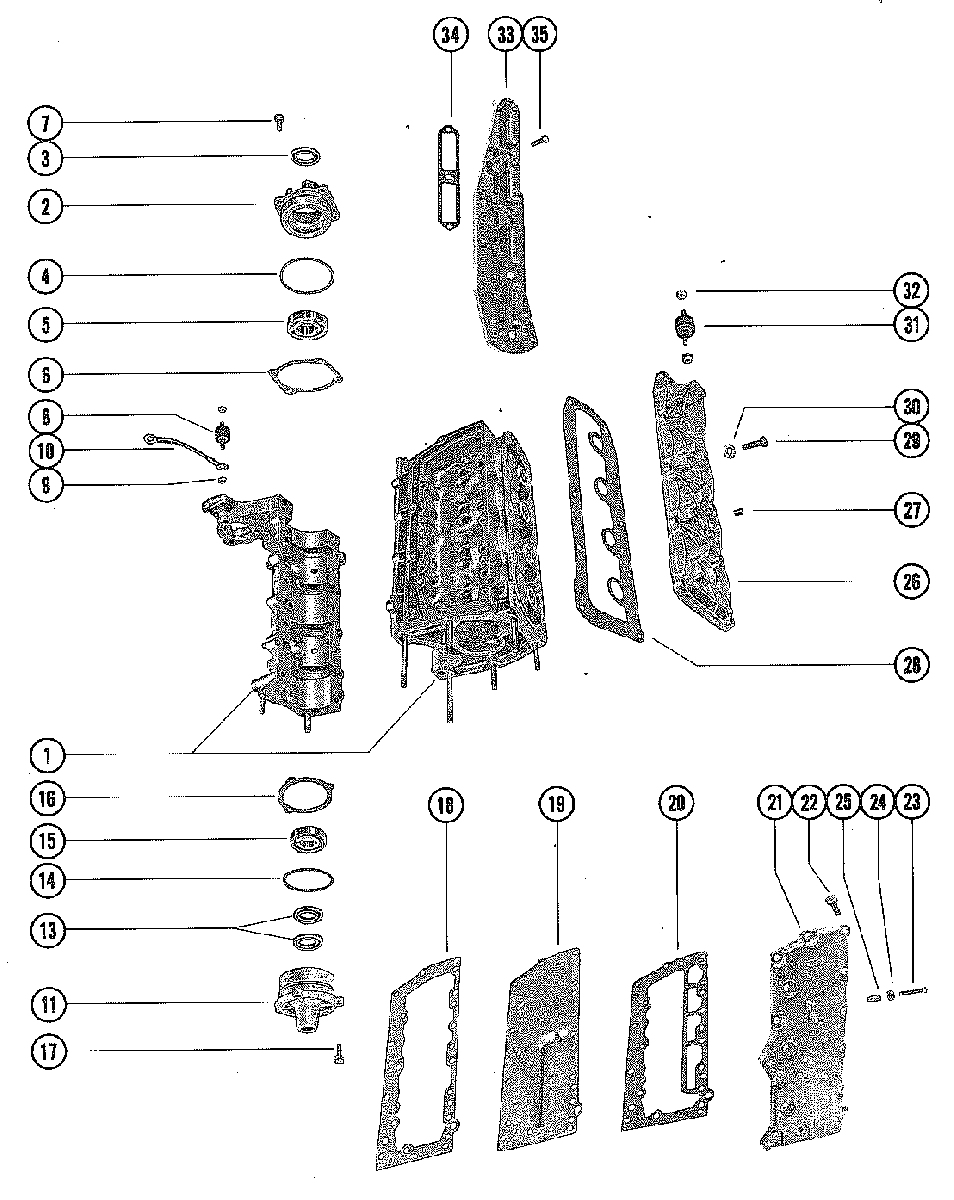

END CAPS, MANIFOLD AND EXHAUST COVERS для Mercury - 500, 50 8030090 THRU 8063984
-
№АртикулНазвание
-
1863-8981A6 CYLINDER BLOCK AND CRANKCASE ASS'Y
SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWCYLINDER BLOCK AND CRANKCASE ASS'Y
SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
1863-8981A6 CYLINDER BLOCK AND CRANKCASE ASS'Y
SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
UNITED STATES 4962056 THRU 5193258
AUSTRALIA 8053230 THRU 8057394
BELGIUM 9195686 THRU 9217255
CANADA 7115573 THRU 7116222CYLINDER BLOCK AND CRANKCASE ASS'Y
SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
UNITED STATES 4962056 THRU 5193258
AUSTRALIA 8053230 THRU 8057394
BELGIUM 9195686 THRU 9217255
CANADA 7115573 THRU 7116222 -
1863-8981A6 CYLINDER BLOCK AND CRANKCASE ASS'Y
SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UPCYLINDER BLOCK AND CRANKCASE ASS'Y
SEE "CYLINDER BLOCK AND CRANKCASE ASS'Y" FOR BREAKDOWN
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP -
21160-5826A2 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
326-41953 OIL SEALOIL SEAL
-
425-20081 "O" RING, UPPER END CAP"O" RING, UPPER END CAP
-
530-63742T BALL BEARING, UPPER END CAPBALL BEARING, UPPER END CAP
-
615-72538A1 SHIM
UPPER END CAP TO CYL. BLOCK/CRANKCASE (.005-10)SHIM
UPPER END CAP TO CYL. BLOCK/CRANKCASE (.005-10) -
710-824941 SCREW, UPPER END CAP MOUNTING (3/4")SCREW, UPPER END CAP MOUNTING (3/4")
-
890435 MOUNT, RUBBER-CRANKCASEMOUNT, RUBBER-CRANKCASE
-
911-20184 NUT, CRANKCASE RUBBER MOUNTNUT, CRANKCASE RUBBER MOUNT
-
1084-65773A5 GROUND STRAP, CRANKCASE MOUNTGROUND STRAP, CRANKCASE MOUNT
-
111158-6635T1 END CAP ASSEMBLY, LOWER
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWEND CAP ASSEMBLY, LOWER
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
111158-6635T1 END CAP ASSEMBLY, LOWER
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPEND CAP ASSEMBLY, LOWER
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
1326-41953 OIL SEAL, LOWER END CAPOIL SEAL, LOWER END CAP
-
1425-20081 "O" RING, LOWER END CAP"O" RING, LOWER END CAP
-
1530-63742T BALL BEARING, LOWER END CAPBALL BEARING, LOWER END CAP
-
1615-20085A1 SHIM
LOWER END CAP TO CRANKCASE/CYL, BLOCK (.005-10)SHIM
LOWER END CAP TO CRANKCASE/CYL, BLOCK (.005-10) -
1710-29256 SCREW, LOWER END CAP MOUNTING (7/8")SCREW, LOWER END CAP MOUNTING (7/8")
-
1827-854913 GASKET
CYLINDER BLOCK TO BAFFLE PLATEGASKET
CYLINDER BLOCK TO BAFFLE PLATE -
1990421T01 PLATE, BAFFLE-EXHAUST MANIFOLDPLATE, BAFFLE-EXHAUST MANIFOLD
-
2027-854924 GASKET, BAFFLE PLATE TO EXHAUST COVERGASKET, BAFFLE PLATE TO EXHAUST COVER
-
2177381 COVER, EXHAUST MANIFOLD
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597COVER, EXHAUST MANIFOLD
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
2177381 COVER, EXHAUST MANIFOLD
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPCOVER, EXHAUST MANIFOLD
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
2210-37562 SCREW
MANIFOLD COVER TO CYLINDER BLOCK (1")SCREW
MANIFOLD COVER TO CYLINDER BLOCK (1") -
2210-38837 SCREW
MANIFOLD COVER TO CYLINGER BLOCK (1 1/8")SCREW
MANIFOLD COVER TO CYLINGER BLOCK (1 1/8") -
2310-73280 SCREW
ADJUSTING-EXHAUST MANIFOLD COVER (1 1/2")SCREW
ADJUSTING-EXHAUST MANIFOLD COVER (1 1/2") -
2310-73281 SCREW
ADJUSTING-ECHAUST MANIFOLD COVER (1 3/4")SCREW
ADJUSTING-ECHAUST MANIFOLD COVER (1 3/4") -
2411-20890 NUT, ADJUSTING SCREWNUT, ADJUSTING SCREW
-
2526852 CAP, ADJUSTING SCREWCAP, ADJUSTING SCREW
-
261017-7054A1 COVER ASSEMBLY, CYLINGER BLOCK
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWCOVER ASSEMBLY, CYLINGER BLOCK
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
261017-7054A1 COVER ASSEMBLY, CYLINDER BLOCK
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPCOVER ASSEMBLY, CYLINDER BLOCK
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
2722-328022 PLUG, PIPE-CYLINDER BLOCK COVERPLUG, PIPE-CYLINDER BLOCK COVER
-
2827-85487 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
2910-76630 SCREW, CYLINDER BLOCK COVER (1")SCREW, CYLINDER BLOCK COVER (1")
-
3190435 MOUNT, RUBBER-CYLINDER BLOCK COVERMOUNT, RUBBER-CYLINDER BLOCK COVER
-
3318827A1 COVER, TRANSFER PORT
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597COVER, TRANSFER PORT
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
3118827A1 COVER ASSEMBLY, TRANSFER PORT
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPCOVER ASSEMBLY, TRANSFER PORT
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
3427-279361 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
3510-20540 SCREW, TRANSFER PORT COVER MOUNTING (5/8")SCREW, TRANSFER PORT COVER MOUNTING (5/8")
-
-27-72486A32 GASKET SETGASKET SET
-
-27-72486A32 GASKET SETGASKET SET
