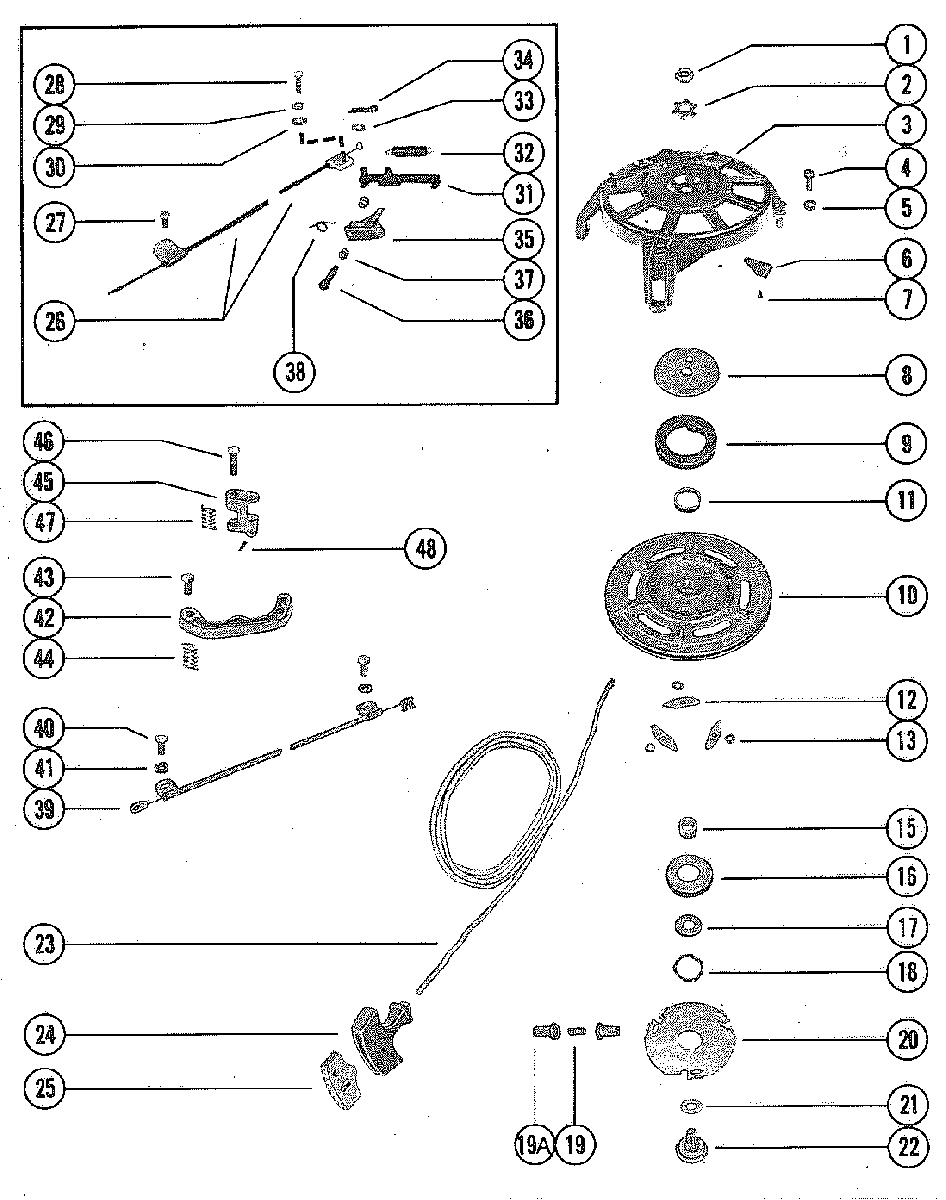

STARTER HOUSING (MANUAL) для Mercury - 500, 50 8030090 THRU 8063984
-
№АртикулНазвание
-
111-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
214-61004 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
389016A3 HOUSING, STARTERHOUSING, STARTER
-
410-90073 SCREW
STARTER HOUSING TO CRANKCASE/CYLINDER BLOCK (1")SCREW
STARTER HOUSING TO CRANKCASE/CYLINDER BLOCK (1") -
513-20202 LOCKWASHER, STARTER HOUSING SCREWLOCKWASHER, STARTER HOUSING SCREW
-
637691 PLATE, CABLE GUIDEPLATE, CABLE GUIDE
-
710-358811 SCREW, DRIVE - CABLE GUIDE TO START HOUSINGSCREW, DRIVE - CABLE GUIDE TO START HOUSING
-
861002 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
924-39502T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1076053A1 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
1123-63100 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
1230596 PAWL, STARTERPAWL, STARTER
-
1313-36206 WASHER, WAVE-STARTER PAWLWASHER, WAVE-STARTER PAWL
-
1523-63061 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
1639840 RETAIINER, WAVE WASHERRETAIINER, WAVE WASHER
-
1712-57837 WASHER, WAVE WASHER RETAINERWASHER, WAVE WASHER RETAINER
-
1813-20160 WASHER, WAVE-RETAINER TENSIONWASHER, WAVE-RETAINER TENSION
-
1924-66853 SPRING, RETAINER PLATE TO STARTER SHEAVESPRING, RETAINER PLATE TO STARTER SHEAVE
-
19A66848 RETAINER, SPRINGRETAINER, SPRING
-
2066845 PLATE, RETAINER-STARTER PAWLPLATE, RETAINER-STARTER PAWL
-
2112-57860 WASHER, WEAR-SHEAVE SHAFTWASHER, WEAR-SHEAVE SHAFT
-
2261003 SHAFT, SHEAVESHAFT, SHEAVE
-
2350-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
2347341A11 STARTER CABLE
(FOR MANUAL STARTING OF ELECTRIC ENGINE)STARTER CABLE
(FOR MANUAL STARTING OF ELECTRIC ENGINE) -
2428747 HANDLE, STARTER CABLE
UNITED STATES 4962055 AND BELOW AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWHANDLE, STARTER CABLE
UNITED STATES 4962055 AND BELOW AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
2579470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
-
24&2579470A1 HANDLE AND RETAINER ASSEMBLY
STARTER CABLE
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPHANDLE AND RETAINER ASSEMBLY
STARTER CABLE
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
2670969 CABLE, INTERLOCK
UNITED STATES 4357640 THRU 4705992
AUSTRALIA 8030090 THRU 8044724
BELGIUM 9107214 THRU 9155279
CANADA 7068998 THRU 7097572CABLE, INTERLOCK
UNITED STATES 4357640 THRU 4705992
AUSTRALIA 8030090 THRU 8044724
BELGIUM 9107214 THRU 9155279
CANADA 7068998 THRU 7097572 -
2710-32228 SCREW
INTERLOCK CABLE TO EXHAUST PLATE (5/8")SCREW
INTERLOCK CABLE TO EXHAUST PLATE (5/8") -
2810-69022 SCREW
INTERLOCK CABLE TO STARTER HOUSING (1/2")SCREW
INTERLOCK CABLE TO STARTER HOUSING (1/2") -
2913-27660 LOCKWASHER, INTERLOCK CABLE SCREWLOCKWASHER, INTERLOCK CABLE SCREW
-
3012-26013 WASHER, INTERLOCK CABLE SCREWWASHER, INTERLOCK CABLE SCREW
-
3157236 CAM, SLIDING-STARTER HOUSINGCAM, SLIDING-STARTER HOUSING
-
3224-70086 SPRING, SLIDING CAMSPRING, SLIDING CAM
-
3312-37998 WASHER, INTERLOCK CABLEWASHER, INTERLOCK CABLE
-
3418-26953 COTTER PIN, INTERLOCK CABLE TO SLIDING CAMCOTTER PIN, INTERLOCK CABLE TO SLIDING CAM
-
3565757A1 TOGGLE ASSEMBLY, STARTER INTERLOCKTOGGLE ASSEMBLY, STARTER INTERLOCK
-
3610-57249 SCREW, TOGGLE TO STARTER HOUSINGSCREW, TOGGLE TO STARTER HOUSING
-
3723-26856 BUSHING, TOGGLE SCREWBUSHING, TOGGLE SCREW
-
3824-57279 SPRING, TOGGLE SCREWSPRING, TOGGLE SCREW
-
3976568 CABLE
INTERLOCK ALSO USED ON TILLER HANDLE MODELSCABLE
INTERLOCK ALSO USED ON TILLER HANDLE MODELS -
4010-69022 SCREW, CABLE (1/2")
ALSO USED ON TILLER HANDLE MODELSSCREW, CABLE (1/2")
ALSO USED ON TILLER HANDLE MODELS -
4112-26013 WASHER, CABLE SCREW
ALSO USED ON TILLER HANDLE MODELSWASHER, CABLE SCREW
ALSO USED ON TILLER HANDLE MODELS -
42428201 CAM, INTERLOCK
UNITED STATES 4705993 THRU 4962055
AUSTRALIA 8044725 THRU 8053229
BELGIUM 9155280 THRU 9195685
CANADA 7097573 THRU 7115572CAM, INTERLOCK
UNITED STATES 4705993 THRU 4962055
AUSTRALIA 8044725 THRU 8053229
BELGIUM 9155280 THRU 9195685
CANADA 7097573 THRU 7115572 -
42428201 CAM, INTERLOCK
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPCAM, INTERLOCK
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
4310-76138 SCREW, INTERLOCK CAM ATTACHING (1 1/8")SCREW, INTERLOCK CAM ATTACHING (1 1/8")
-
4424-761401 SPRING, INTERLOCK CAM SCREWSPRING, INTERLOCK CAM SCREW
-
4579371 ACTUATOR, INTERLOCKACTUATOR, INTERLOCK
-
4610-76137 SCREW, INTERLOCK SCTUATOR ATTACHING (1 5/8")SCREW, INTERLOCK SCTUATOR ATTACHING (1 5/8")
-
4724-76139 SPRING, INTERLOCK ACTUATOR SCREWSPRING, INTERLOCK ACTUATOR SCREW
-
4818-26811 COTTER PIN, INTERLOCK CABLE TO ACTUATORCOTTER PIN, INTERLOCK CABLE TO ACTUATOR
