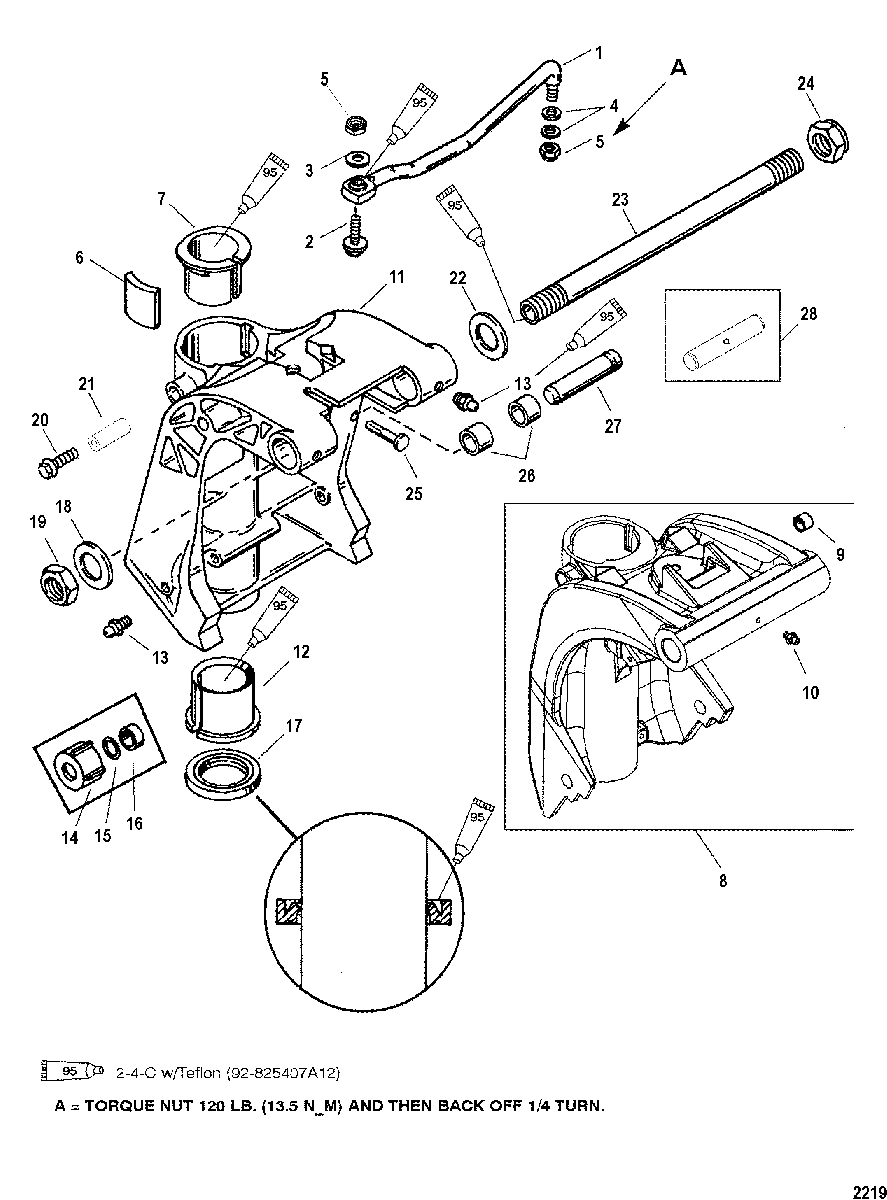

SWIVEL BRACKET для Mercury - 50 (4-STROKE) 0G231123 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    19608A14 LINK ROD
    NON HANDLE
    LINK ROD
    NON HANDLE
  • 2
    10-823919 SCREW, (.375-24 x 1.500)
    NON HANDLE
    SCREW, (.375-24 x 1.500)
    NON HANDLE
  • 3
    12-8M0109680 WASHER, (.390 x .546 x .12)
    NON HANDLE
    WASHER, (.390 x .546 x .12)
    NON HANDLE
  • 4
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    NON HANDLE
    WASHER, (.390 x .625 x .062) Stainless Steel
    NON HANDLE
  • 5
    11-8M0042636 NUT, (.375-24)
    NON HANDLE
    NUT, (.375-24)
    NON HANDLE
  • 6
    822397 PUCK
    PUCK
  • 7
    23-8217711 BUSHING
    BUSHING
  • 8
    1401-850066T01 SWIVEL BRACKET
    (BLACK) BIGFOOT
    SWIVEL BRACKET
    (BLACK) BIGFOOT
  • 8
    1401-850066T01 SWIVEL BRACKET ASSEMBLY
    (GRAY) BIGFOOT
    SWIVEL BRACKET ASSEMBLY
    (GRAY) BIGFOOT
  • 9
    23-19606 BEARING
    BIGFOOT
    BEARING
    BIGFOOT
  • 10
    22-74036 FITTING, Grease
    BIGFOOT
    FITTING, Grease
    BIGFOOT
  • 11
    3410-827402T5 SWIVEL BRACKET ASSEMBLY
    (BLACK-NON-BIGFOOT) SN# 0G438000 & Up
    SWIVEL BRACKET ASSEMBLY
    (BLACK-NON-BIGFOOT) SN# 0G438000 & Up
  • 11
    3410-827402T5 SWIVEL BRACKET ASSEMBLY
    (GRAY-NON-BIGFOOT) SN# 0G438000 & Up
    SWIVEL BRACKET ASSEMBLY
    (GRAY-NON-BIGFOOT) SN# 0G438000 & Up
  • 11
    3410-827402T5 SWIVEL BRACKET
    (BLACK-NON-BIGFOOT) SN# 0G437999 & Below
    SWIVEL BRACKET
    (BLACK-NON-BIGFOOT) SN# 0G437999 & Below
  • 11
    3410-827402T5 SWIVEL BRACKET
    (GRAY-NON-BIGFOOT) SN# 0G437999 & Below
    SWIVEL BRACKET
    (GRAY-NON-BIGFOOT) SN# 0G437999 & Below
  • 12
    23-821777 BUSHING (LOWER)
    (NON-BIGFOOT) SN# 0G438000 & Up
    BUSHING (LOWER)
    (NON-BIGFOOT) SN# 0G438000 & Up
  • 12
    23-821777 BUSHING (LOWER)
    (BIGFOOT)
    BUSHING (LOWER)
    (BIGFOOT)
  • 12
    23-821777T1 BUSHING (LOWER)
    (NON-BIGFOOT) SN# 0G437999 & Below
    BUSHING (LOWER)
    (NON-BIGFOOT) SN# 0G437999 & Below
  • 13
    22-74036 FITTING, Grease
    FITTING, Grease
  • 14
    19624A1 SEAL KIT
    NON HANDLE
    SEAL KIT
    NON HANDLE
  • 15
    25-29619 O-RING, (.583 x .103)
    NON HANDLE
    O-RING, (.583 x .103)
    NON HANDLE
  • 16
    23-78861 SPACER
    NON HANDLE
    SPACER
    NON HANDLE
  • 17
    26-822404 SEAL
    SEAL
  • 18
    12-19619 WASHER
    WASHER
  • 19
    11-858869 NUT, (7/8-14)
    NUT, (7/8-14)
  • 20
    10-4008910 SCREW, (M8 x 10) Stainless Steel
    (HANDLE)
    SCREW, (M8 x 10) Stainless Steel
    (HANDLE)
  • 20
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    NON HANDLE
    SCREW, (M8 x 25) Stainless Steel
    NON HANDLE
  • 21
    8282451 SEAL
    NON HANDLE
    SEAL
    NON HANDLE
  • 22
    12-19619 WASHER
    WASHER
  • 23
    8M0041938 TILT TUBE
    TILT TUBE
  • 24
    11-858869 NUT, (7/8-14)
    NUT, (7/8-14)
  • 25
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 26
    23-823507 BUSHING
    NON-BIGFOOT
    BUSHING
    NON-BIGFOOT
  • 27
    17-822480 PIN, Pivot (UPPER)
    NON-BIGFOOT
    PIN, Pivot (UPPER)
    NON-BIGFOOT
  • 28
    17-822869001 PIN
    (BIGFOOT)
    PIN
    (BIGFOOT)
