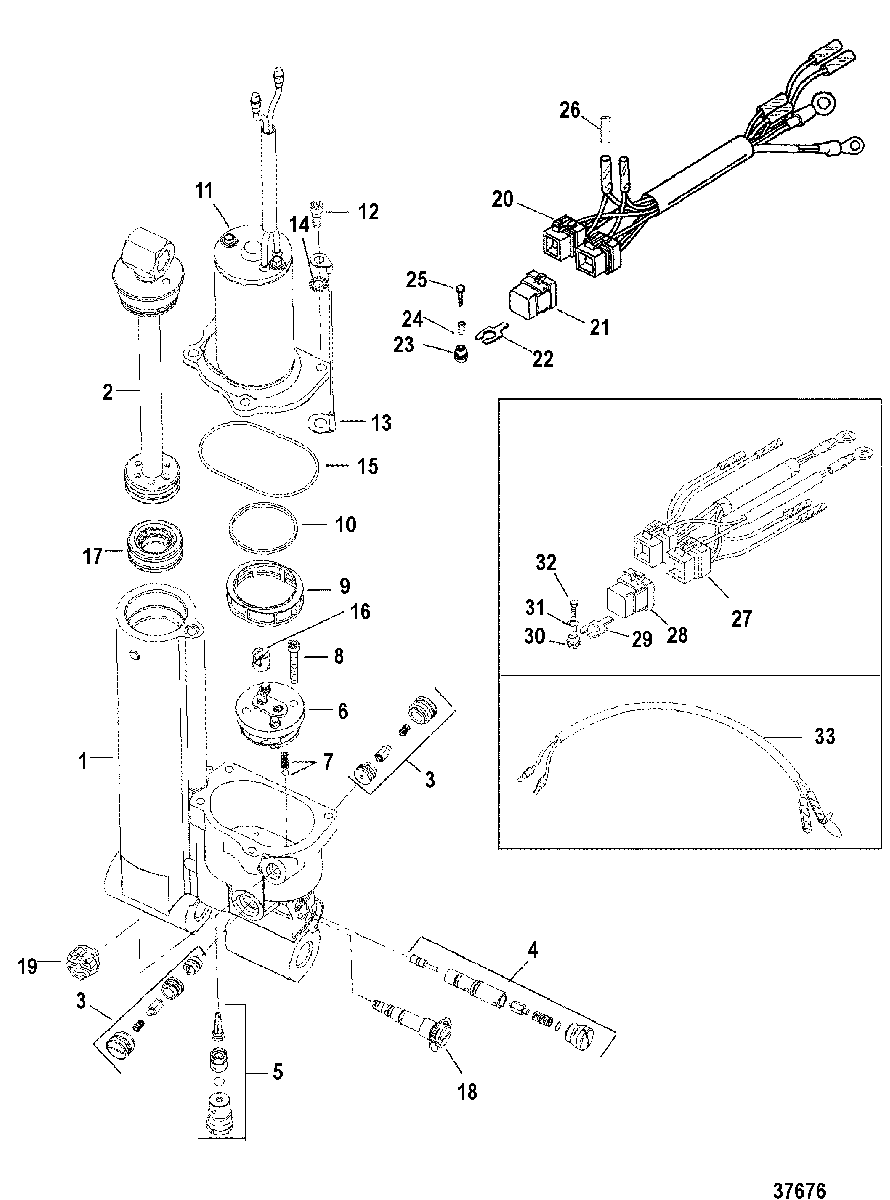

POWER TRIM(NON BIGFOOT) для Mercury - 50 (4-STROKE) 0G231123 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    822344T14 POWER TRIM
    POWER TRIM
  • -
    25-827668A1 O-RING KIT
    O-RING KIT
  • 2
    893931A01 SHOCK ROD ASSEMBLY
    SHOCK ROD ASSEMBLY
  • 3
    827671A1 PILOT CHECK ASSEMBLY
    PILOT CHECK ASSEMBLY
  • 4
    827672A1 TILT RELIEF VALVE ASSEMBLY
    TILT RELIEF VALVE ASSEMBLY
  • 5
    827673A1 SEAT ASSEMBLY, Suction
    SEAT ASSEMBLY, Suction
  • 6
    827674A1 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 7
    NSS NOT SOLD SEPARATE, Spring/down Relief Ball
    NOT SOLD SEPARATE, Spring/down Relief Ball
  • 8
    NSS NOT SOLD SEPARATE, Screw (10-32 x 1-1/4 IN.)
    NOT SOLD SEPARATE, Screw (10-32 x 1-1/4 IN.)
  • 9
    NSS NOT SOLD SEPARATE, Filter
    NOT SOLD SEPARATE, Filter
  • 10
    NSS NOT SOLD SEPARATE, Seal Ring
    NOT SOLD SEPARATE, Seal Ring
  • 11
    827675A1 MOTOR ASSEMBLY
    MOTOR ASSEMBLY
  • 12
    NSS NOT SOLD SEPARATE, Screw (1/4-28 x 5/8 IN.)
    NOT SOLD SEPARATE, Screw (1/4-28 x 5/8 IN.)
  • 13
    88238A15 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 14
    NSS NOT SOLD SEPARATE, Lockwasher
    NOT SOLD SEPARATE, Lockwasher
  • 15
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 16
    NSS NOT SOLD SEPARATE, Coupler
    NOT SOLD SEPARATE, Coupler
  • 17
    827676 PISTON, Memory
    PISTON, Memory
  • 18
    893929A01 MANUAL RELEASE ASSEMBLY
    MANUAL RELEASE ASSEMBLY
  • 19
    19-811613 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • -
    84-819514A57 HARNESS ASSEMBLY, Trim
    SN# 0G472132 & Below
    HARNESS ASSEMBLY, Trim
    SN# 0G472132 & Below
  • 20
    84-819514A58 HARNESS ASSEMBLY, Trim
    SN# 0G472132 & Below
    HARNESS ASSEMBLY, Trim
    SN# 0G472132 & Below
  • 21
    821509T01 RELAY
    SN# 0G472132 & Below
    RELAY
    SN# 0G472132 & Below
  • 22
    882751A1 BRACKET
    SN# 0G472132 & Below
    BRACKET
    SN# 0G472132 & Below
  • 23
    25-818967 GROMMET
    SN# 0G472132 & Below
    GROMMET
    SN# 0G472132 & Below
  • 24
    23-818968 BUSHING
    SN# 0G472132 & Below
    BUSHING
    SN# 0G472132 & Below
  • 25
    10-8248326 SCREW, (M6 x 25 MM)
    SN# 0G472132 & Below
    SCREW, (M6 x 25 MM)
    SN# 0G472132 & Below
  • 26
    13541 PLUG, Male
    SN# 0G472132 & Below
    PLUG, Male
    SN# 0G472132 & Below
  • -
    84-826802A14 HARNESS/RELAY ASSEMBLY, Trim
    SN# 0G472133 & Up
    HARNESS/RELAY ASSEMBLY, Trim
    SN# 0G472133 & Up
  • 27
    84-826802A9 HARNESS ASSEMBLY, Trim
    SN# 0G472133 & Up
    HARNESS ASSEMBLY, Trim
    SN# 0G472133 & Up
  • 28
    882751A1 RELAY ASSEMBLY
    SN# 0G472133 & Up
    RELAY ASSEMBLY
    SN# 0G472133 & Up
  • 29
    828102 BRACKET
    SN# 0G472133 & Up
    BRACKET
    SN# 0G472133 & Up
  • 30
    25-818967 GROMMET
    SN# 0G472133 & Up
    GROMMET
    SN# 0G472133 & Up
  • 31
    23-818968 BUSHING
    SN# 0G472133 & Up
    BUSHING
    SN# 0G472133 & Up
  • 32
    10-8248326 SCREW, (M6 x 25 MM)
    SN# 0G472133 & Up
    SCREW, (M6 x 25 MM)
    SN# 0G472133 & Up
  • 33
    84-852539A1 HARNESS ASSEMBLY, Adaptor
    SN# 0G472133 & Up
    HARNESS ASSEMBLY, Adaptor
    SN# 0G472133 & Up
