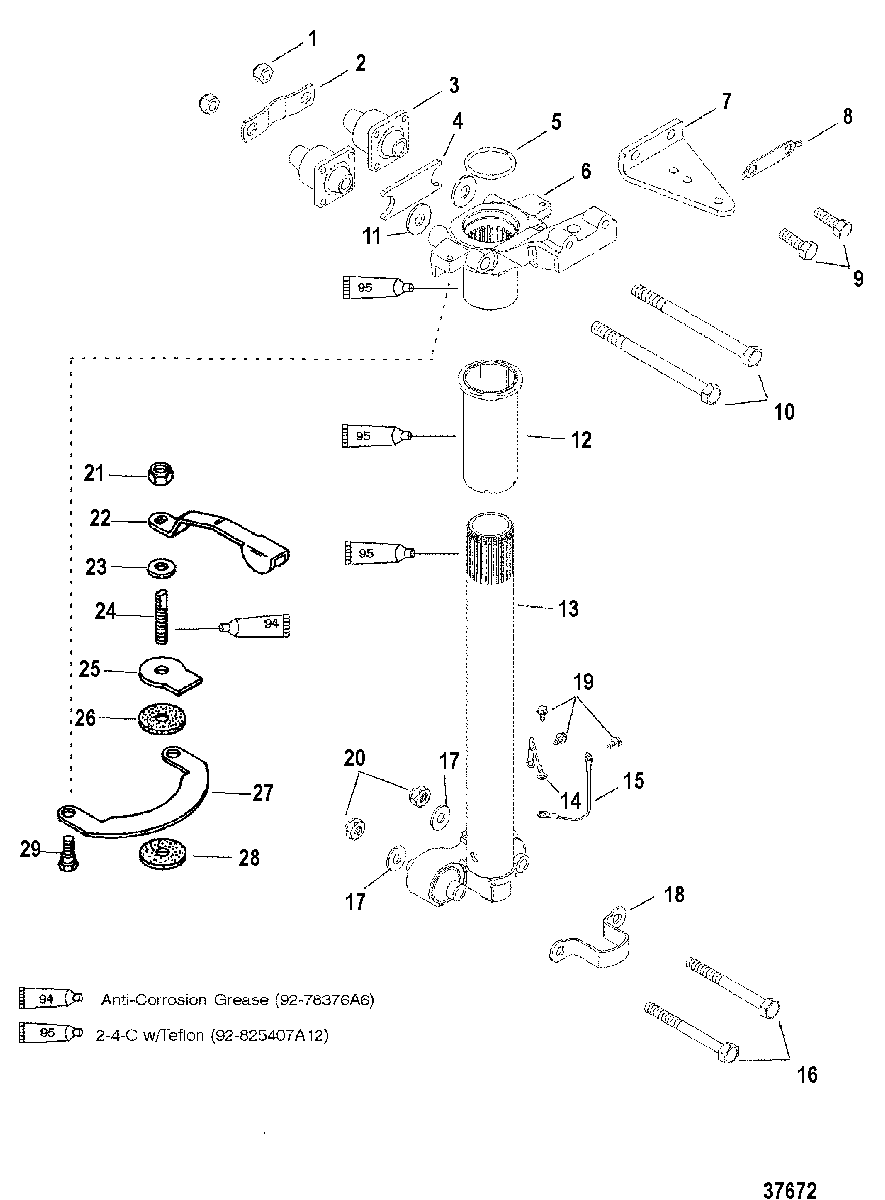

STEERING ARM для Mercury - 50 (4-STROKE) 0G231123 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    11-896963 NUT, (M12)
    NUT, (M12)
  • 2
    893773002 STRAP
    STRAP
  • 3
    893655T MOUNT
    MOUNT
  • 4
    826658 BUMPER
    BUMPER
  • 5
    53-89531 RING, Retaining
    RING, Retaining
  • 6
    8M0118183 ARM, Steering
    (BLACK)
    ARM, Steering
    (BLACK)
  • 6
    8M0118183 ARM, Steering
    (GRAY)
    ARM, Steering
    (GRAY)
  • 7
    893696 BRACKET
    NON HANDLE
    BRACKET
    NON HANDLE
  • 8
    14-8M0009820 TAB WASHER
    NON HANDLE
    TAB WASHER
    NON HANDLE
  • 9
    10-4000377 SCREW, (M10 x 30)
    NON HANDLE
    SCREW, (M10 x 30)
    NON HANDLE
  • 10
    10-898835001 BOLT, (M12 x 154)
    BOLT, (M12 x 154)
  • 11
    12-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
    (BIGFOOT)
    WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
    (BIGFOOT)
  • 12
    23-8279971 SPACER
    SPACER
  • 13
    893590T01 SWIVEL TUBE ASSEMBLY
    (NON-BIGFOOT) SN# 0G590000 & Up
    SWIVEL TUBE ASSEMBLY
    (NON-BIGFOOT) SN# 0G590000 & Up
  • 13
    893590T01 SWIVEL TUBE
    (NON-BIGFOOT-BLACK) SN# 0G589999 & Below
    SWIVEL TUBE
    (NON-BIGFOOT-BLACK) SN# 0G589999 & Below
  • 13
    893590T01 SWIVEL TUBE
    (NON-BIGFOOT-GRAY) SN# 0G589999 & Below
    SWIVEL TUBE
    (NON-BIGFOOT-GRAY) SN# 0G589999 & Below
  • 13
    893590T04 SWIVEL TUBE
    (BIGFOOT)
    SWIVEL TUBE
    (BIGFOOT)
  • 14
    84-88238T01 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 15
    88238A13 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 16
    10-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel
    SCREW, (M10 x 105) Hex Flange - Stainless Steel
  • 17
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    (BIGFOOT)
    WASHER, (.453 x .812 x .105) Stainless Steel
    (BIGFOOT)
  • 18
    893703 BRACKET
    BRACKET
  • 19
    10-878607 SCREW, (#10-16 x .380)
    SCREW, (#10-16 x .380)
  • 20
    11-40140 NUT, (M10)
    NUT, (M10)
  • 21
    11-8M0042636 NUT, (.375-24)
    HANDLE
    NUT, (.375-24)
    HANDLE
  • 22
    823792 LEVER
    HANDLE
    LEVER
    HANDLE
  • 23
    12-29330 WASHER
    HANDLE
    WASHER
    HANDLE
  • 24
    821961 ROD (THREADED)
    HANDLE
    ROD (THREADED)
    HANDLE
  • 25
    821957 BRAKE PLATE
    HANDLE
    BRAKE PLATE
    HANDLE
  • 26
    8165621 DISC
    HANDLE
    DISC
    HANDLE
  • 27
    8M0007471 PLATE
    HANDLE
    PLATE
    HANDLE
  • 28
    8165621 DISC
    HANDLE
    DISC
    HANDLE
  • 29
    10-768042 SHOULDER SCREW, Hex
    HANDLE
    SHOULDER SCREW, Hex
    HANDLE
