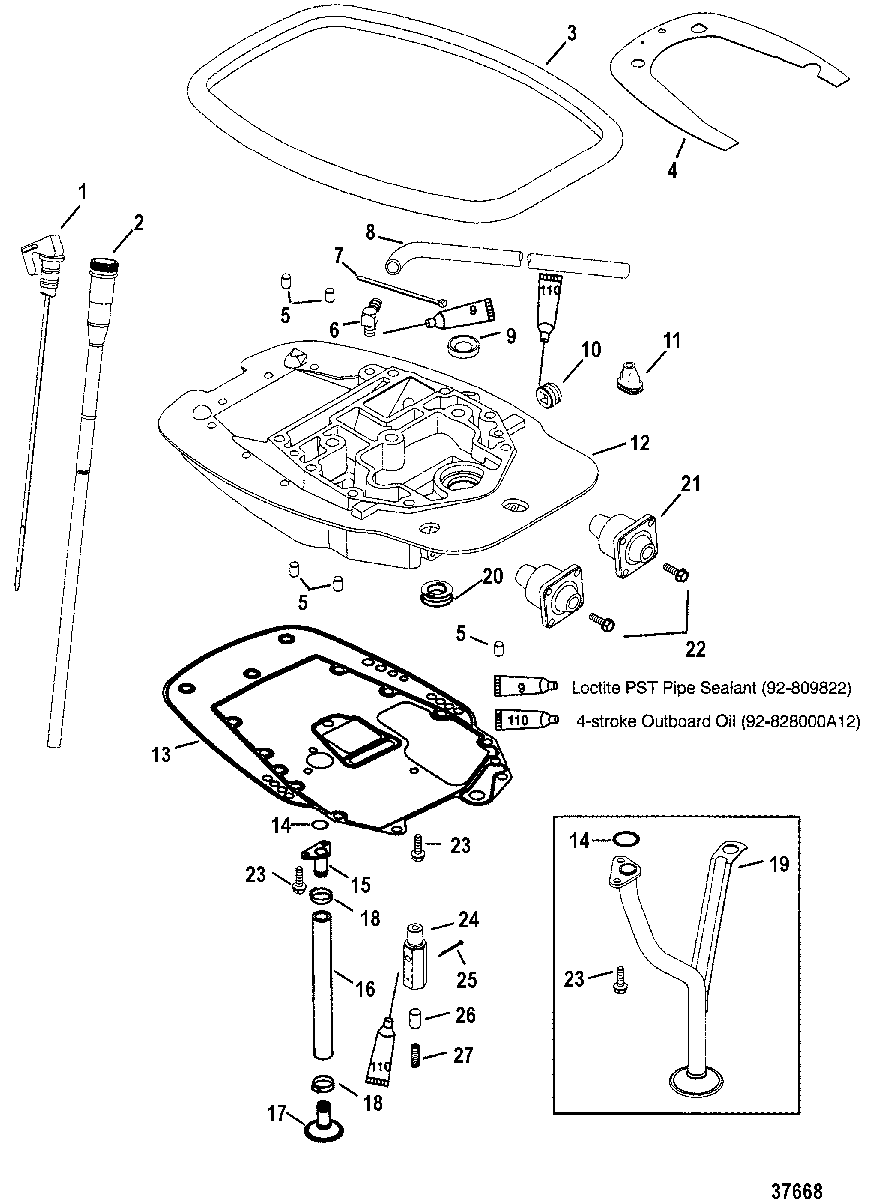

ADAPTOR PLATE для Mercury - 50 (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
1825990 DIPSTICKDIPSTICK
-
2825989003 DIPSTICK TUBEDIPSTICK TUBE
-
38238052 SEAL, Lower CowlSEAL, Lower Cowl
-
48289151 HEAT SHIELDHEAT SHIELD
-
517-23784 PIN, DowelPIN, Dowel
-
622-629101 ELBOW, (.125-27)ELBOW, (.125-27)
-
754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
832-77653101 HOSE, (24.500 Inches Bulk) (20 IN.)HOSE, (24.500 Inches Bulk) (20 IN.)
-
926-828932 SEAL, OilSEAL, Oil
-
926-16977 SEAL, Oil
(BIGFOOT)SEAL, Oil
(BIGFOOT) -
1022-384073 PLUG, PipePLUG, Pipe
-
1125-822408001 GROMMET
(NON BIGFOOT)GROMMET
(NON BIGFOOT) -
12825228A25 ADAPTOR PLATE
SN# 0G590000 & UpADAPTOR PLATE
SN# 0G590000 & Up -
12825228A24 ADAPTOR PLATE
(BIGFOOT) SN# 0G590000 & UpADAPTOR PLATE
(BIGFOOT) SN# 0G590000 & Up -
12825228A15 ADAPTOR PLATE ASSEMBLY
SN# 0G438000 THRU 0G589999ADAPTOR PLATE ASSEMBLY
SN# 0G438000 THRU 0G589999 -
12825228A15 ADAPTOR PLATE
SN# 0G437999 & BelowADAPTOR PLATE
SN# 0G437999 & Below -
1327-892320001 GASKET
SN# 0G590000 & UpGASKET
SN# 0G590000 & Up -
1327-892320001 GASKET
SN# 0G438000 THRU 0G589999GASKET
SN# 0G438000 THRU 0G589999 -
13825228A15 GASKET
SN# 0G437999 & BelowGASKET
SN# 0G437999 & Below -
1425-845746 O-RINGO-RING
-
15893765 PLATE, Oil Pickup-Top
SN# 0G590000 & UpPLATE, Oil Pickup-Top
SN# 0G590000 & Up -
1632-854793 HOSE, Oil Pickup
SN# 0G590000 & UpHOSE, Oil Pickup
SN# 0G590000 & Up -
17893700 BAFFLE
SN# 0G590000 & UpBAFFLE
SN# 0G590000 & Up -
1854-855228 CLAMP
SN# 0G590000 & UpCLAMP
SN# 0G590000 & Up -
198252141 PICK UP, Oil
SN# 0G438000 THRU 0G589999PICK UP, Oil
SN# 0G438000 THRU 0G589999 -
19825214 PICK UP, Oil
SN# 0G437999 & BelowPICK UP, Oil
SN# 0G437999 & Below -
2025-19565002 GROMMETGROMMET
-
21893655T MOUNTMOUNT
-
2210-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
2310-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
24881872A1 BODY, Oil Pressure ReliefBODY, Oil Pressure Relief
-
2518-45882 COTTER PINCOTTER PIN
-
268252151 PLUNGERPLUNGER
-
2724-825216 SPRINGSPRING
