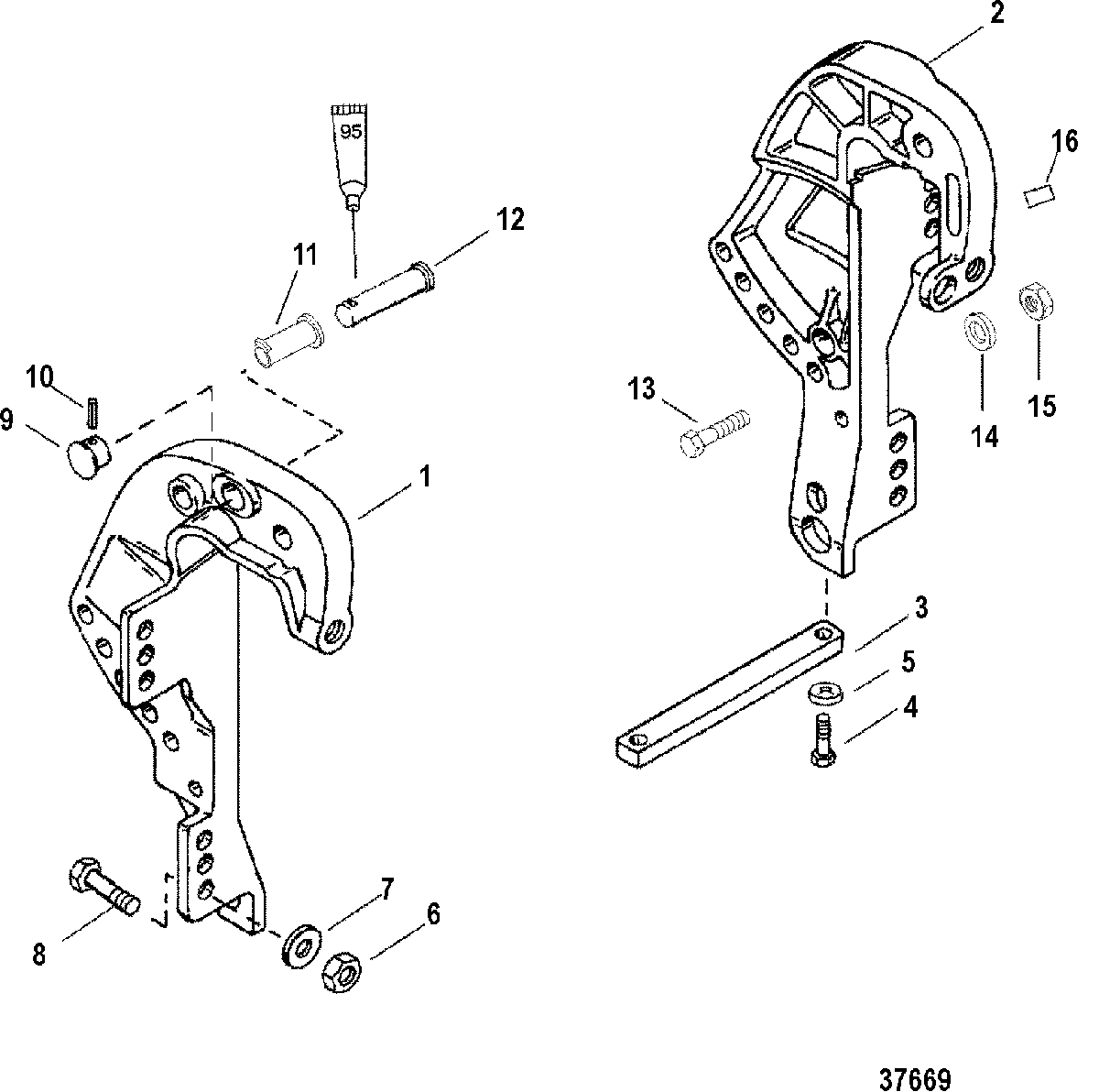

CLAMP BRACKET(NON BIGFOOT) для Mercury - 50 (4-STROKE) 0G231123 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    3412-821774T8 CLAMP BRACKET
    (BLACK-STBD.)
    CLAMP BRACKET
    (BLACK-STBD.)
  • 1
    3412-821774T8 CLAMP BRACKET
    (GRAY-STBD.)
    CLAMP BRACKET
    (GRAY-STBD.)
  • 2
    3411-821773T1 CLAMP BRACKET
    (BLACK-PORT)
    CLAMP BRACKET
    (BLACK-PORT)
  • 2
    3411-821773A2 CLAMP BRACKET
    (GRAY-PORT)
    CLAMP BRACKET
    (GRAY-PORT)
  • 3
    97-8252711 ANODE
    ANODE
  • 4
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 5
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 6
    11-91962 NUT, (.500-20)
    NUT, (.500-20)
  • 7
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 8
    10-814259 SCREW, (.500-20 x 4.00)
    SCREW, (.500-20 x 4.00)
  • 9
    822401 CAP
    CAP
  • 10
    17-25319 PIN, (.125 x 0.75 Inches)
    PIN, (.125 x 0.75 Inches)
  • 11
    23-823589 BUSHING
    BUSHING
  • 12
    17-8224001 PIN
    PIN
  • 13
    10-4009040 SCREW, (M10 x 40) Stainless Steel
    SCREW, (M10 x 40) Stainless Steel
  • 14
    12-4002319 WASHER
    WASHER
  • 15
    11-40140 NUT, (M10)
    NUT, (M10)
  • 16
    37-8237011 DECAL, Co-Pilot
    DECAL, Co-Pilot
