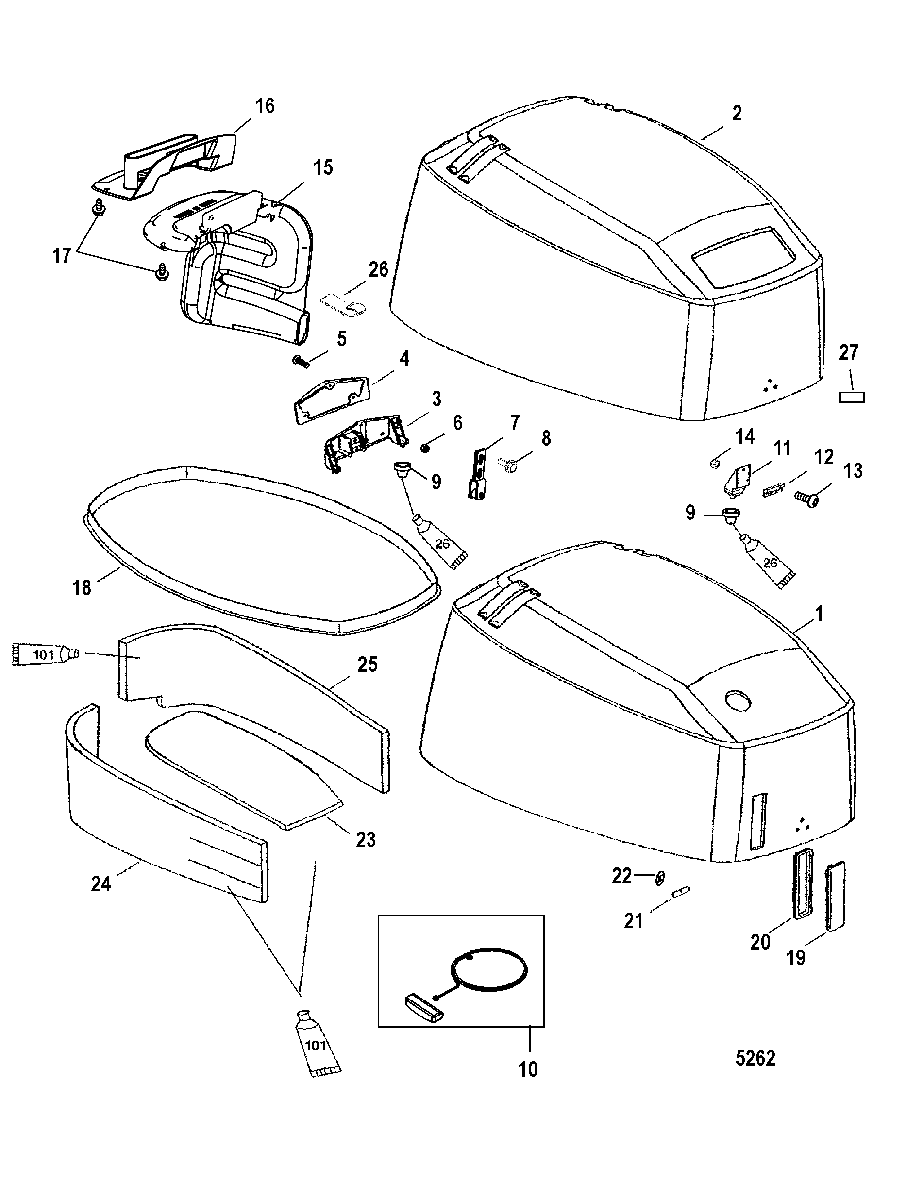

Top Cowl для Mercury - 50 (3 CYL.) 0T980000 & Up

  • №
    Артикул
    Название
  • 1
    100-8M0107150 TOP COWL ASSEMBLY
    (Black)(Electric)
    TOP COWL ASSEMBLY
    (Black)(Electric)
  • 1
    4019-825239T14 TOP COWL ASSEMBLY
    (Silver)(Electric)
    TOP COWL ASSEMBLY
    (Silver)(Electric)
  • 2
    4019-825239T11 TOP COWL ASSEMBLY
    (Black)(Manual)
    TOP COWL ASSEMBLY
    (Black)(Manual)
  • 2
    4019-825239T12 TOP COWL ASSEMBLY
    (Silver)(Manual)
    TOP COWL ASSEMBLY
    (Silver)(Manual)
  • 3
    8M0041044 BRACKET, Cowl Support
    (Rear)
    BRACKET, Cowl Support
    (Rear)
  • 4
    828433T SPACER, Bracket
    SPACER, Bracket
  • 5
    10-83208630 SCREW
    SCREW
  • 6
    11-400632 NUT
    NUT
  • 7
    893763 BRACKET ASSEMBLY, Latch Roller
    BRACKET ASSEMBLY, Latch Roller
  • 8
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 9
    813546003 MOUNT
    MOUNT
  • 10
    47341A11 ROPE AND HANDLE KIT, Manual Starting
    ROPE AND HANDLE KIT, Manual Starting
  • 11
    8M0041646 BRACKET, Cowl Support - Front
    (Front)
    BRACKET, Cowl Support - Front
    (Front)
  • 12
    828503 LATCH KEEPER
    LATCH KEEPER
  • 13
    10-83208616 SCREW
    SCREW
  • 14
    11-400632 NUT
    NUT
  • 15
    8M0038217 DUCT, Air Inlet
    DUCT, Air Inlet
  • 16
    NSS NOT SOLD SEPARATE, Induction Insert
    NOT SOLD SEPARATE, Induction Insert
  • 17
    10-F2317 SCREW, (.250-20 x .875)
    SCREW, (.250-20 x .875)
  • 18
    8M0043404 SEAL
    SEAL
  • 19
    813504A1 GAUGE KIT, Oil Level
    (Electric)
    GAUGE KIT, Oil Level
    (Electric)
  • 20
    813505 GROMMET
    (Electric)
    GROMMET
    (Electric)
  • 21
    113171 RETAINER
    (Electric)
    RETAINER
    (Electric)
  • 22
    11-113161 NUT
    (Electric)
    NUT
    (Electric)
  • 23
    828180A02 SOUND BLANKET KIT (Hot Glue Adhesive)
    SOUND BLANKET KIT (Hot Glue Adhesive)
  • 23
    828180A02 SOUND BLANKET KIT, (Pre-Applied Pressure Sensitive Adhesive)
    SOUND BLANKET KIT, (Pre-Applied Pressure Sensitive Adhesive)
  • 24
    NSS NOT SOLD SEPARATE, Starboard and Rear
    NOT SOLD SEPARATE, Starboard and Rear
  • 25
    NSS NOT SOLD SEPARATE, Port and Rear
    NOT SOLD SEPARATE, Port and Rear
  • 26
    NSS NOT SOLD SEPARATE, Tape
    NOT SOLD SEPARATE, Tape
  • 27
    37-82409316 DECAL, F-N-R Shift
    DECAL, F-N-R Shift
