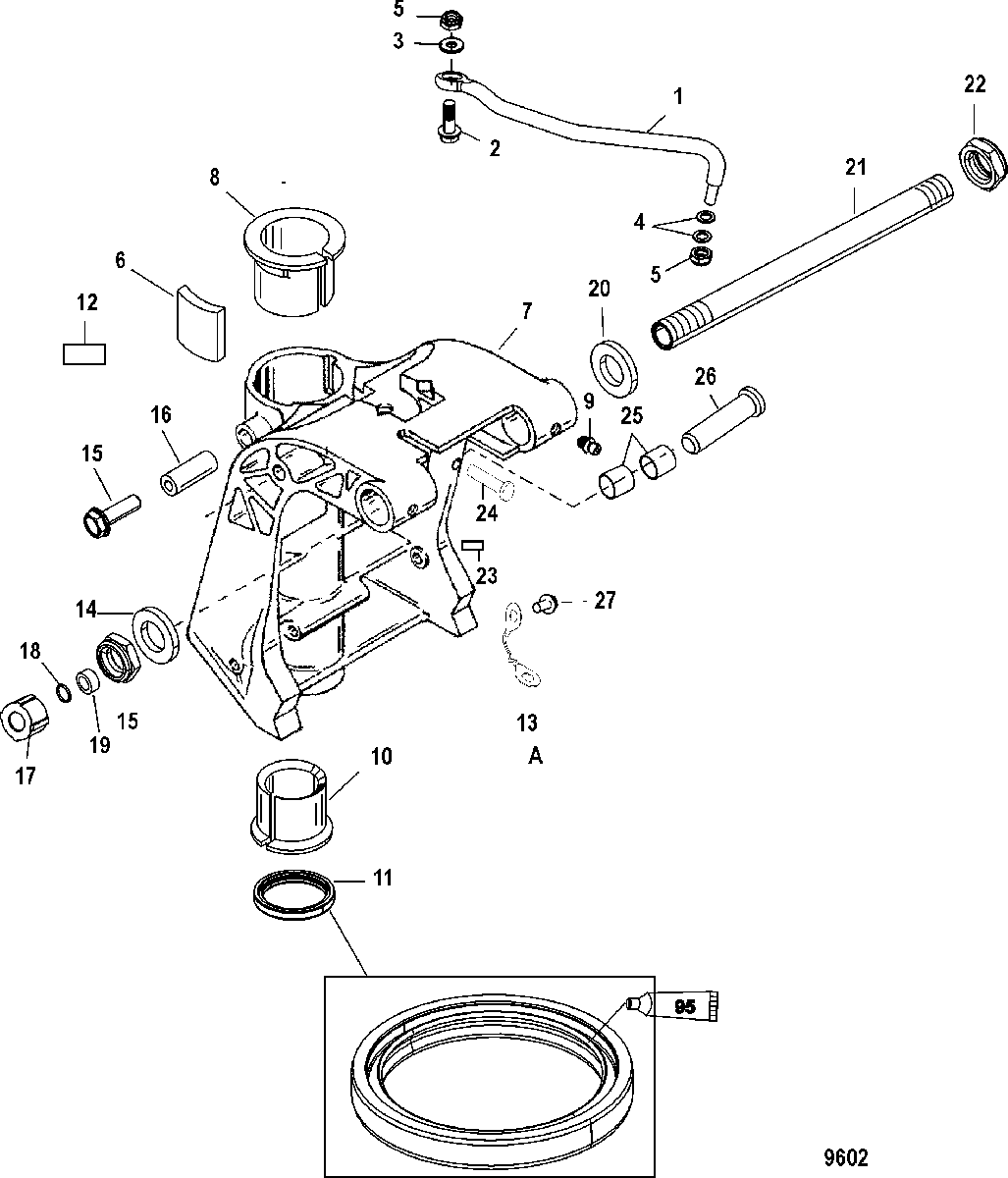

Swivel Bracket для Mercury - 50 (3 CYL.) 0T980000 & Up

  • №
    Артикул
    Название
  • 1
    19608A14 ATTACHING KIT, Engine Steering
    (Non-Handle)
    ATTACHING KIT, Engine Steering
    (Non-Handle)
  • 2
    10-823919 SCREW, (.375-24 x 1.500)
    (Non-Handle)
    SCREW, (.375-24 x 1.500)
    (Non-Handle)
  • 3
    12-8M0109680 WASHER, (.390 x .546 x .12)
    (Non-Handle)
    WASHER, (.390 x .546 x .12)
    (Non-Handle)
  • 4
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    (Non-Handle)
    WASHER, (.390 x .625 x .062) Stainless Steel
    (Non-Handle)
  • 5
    11-8M0042636 NUT, (.375-24) Stainless Steel
    (Non-Handle)
    NUT, (.375-24) Stainless Steel
    (Non-Handle)
  • 5
    11-8M0042636 NUT, (.375-24) Brass
    (Non-Handle)
    NUT, (.375-24) Brass
    (Non-Handle)
  • 6
    822397 PUCK
    (Non-Handle)
    PUCK
    (Non-Handle)
  • 7
    3410-827402T5 SWIVEL BRACKET
    SWIVEL BRACKET
  • 8
    23-8217711 BUSHING, Upper
    BUSHING, Upper
  • 9
    22-74036 FITTING, Grease
    (Quanty of 4 on Handle Version)
    FITTING, Grease
    (Quanty of 4 on Handle Version)
  • 10
    23-821777 BUSHING, Lower
    BUSHING, Lower
  • 11
    26-822404 SEAL
    SEAL
  • 12
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 13
    88238A11 CABLE ASSEMBLY
    (A = To Screw on Bottom Yoke)
    CABLE ASSEMBLY
    (A = To Screw on Bottom Yoke)
  • 14
    12-19619 WASHER
    WASHER
  • 15
    10-4008910 SCREW, (M8 x 10) Stainless Steel
    (Handle)
    SCREW, (M8 x 10) Stainless Steel
    (Handle)
  • 15
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    (Non-Handle)
    SCREW, (M8 x 25) Stainless Steel
    (Non-Handle)
  • 16
    8282451 SEAL
    (Non-Handle)
    SEAL
    (Non-Handle)
  • 17
    19624A1 SEAL KIT
    (Non-Handle)
    SEAL KIT
    (Non-Handle)
  • 18
    25-29619 O-RING, (.583 x .103)
    (Non-Handle)
    O-RING, (.583 x .103)
    (Non-Handle)
  • 19
    23-78861 SPACER
    (Non-Handle)
    SPACER
    (Non-Handle)
  • 20
    12-19619 WASHER
    WASHER
  • 21
    8M0041938 TILT TUBE
    TILT TUBE
  • 22
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 23
    37-8237011 DECAL, Co-Pilot
    DECAL, Co-Pilot
  • 24
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 25
    23-823507 BUSHING
    BUSHING
  • 26
    17-822480 PIN, Pivot, Upper
    PIN, Pivot, Upper
  • 27
    10-878607 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
