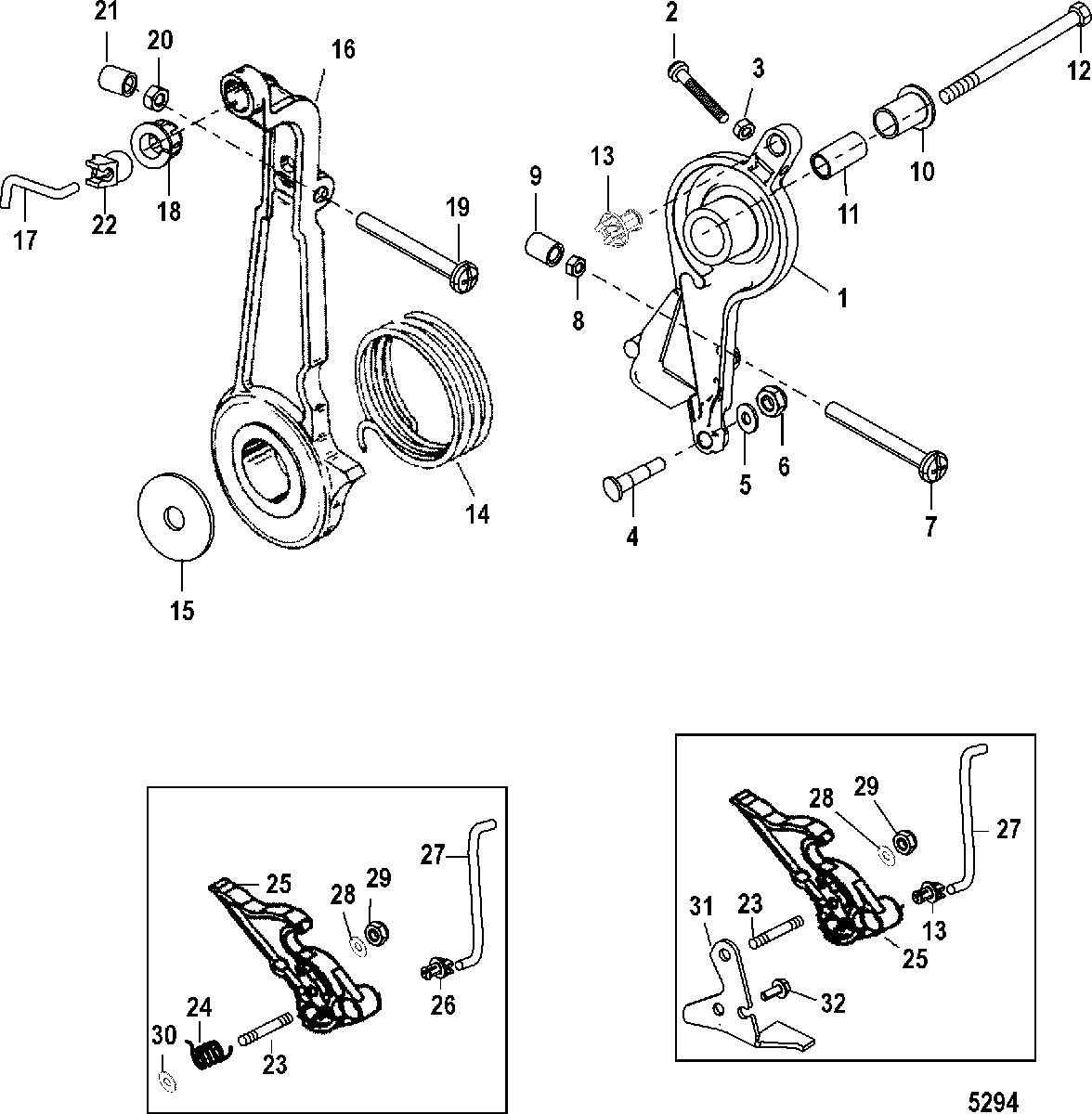

Throttle Lever and Linkage для Mercury - 50 (3 CYL.) 0T980000 & Up
-
№АртикулНазвание
-
142946T1 LEVER, ThrottleLEVER, Throttle
-
210-817582 SCREW, Adjusting (M5 x 35)SCREW, Adjusting (M5 x 35)
-
311-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
442927 INSERTINSERT
-
512-35459 WASHER
(Non-Handle)WASHER
(Non-Handle) -
611-401386 NUT, (M6) Stainless Steel
(Non-Handle)NUT, (M6) Stainless Steel
(Non-Handle) -
710-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
811-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
942942 CAPCAP
-
1023-812930A1 BUSHINGBUSHING
-
11NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
1210-4007180 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
1323-932481 BUSHINGBUSHING
-
1424-55162 SPRINGSPRING
-
1512-42980 WASHERWASHER
-
1619663T02 LEVER, Spark AdvanceLEVER, Spark Advance
-
17878172 ROD, Spark AdvanceROD, Spark Advance
-
1893254 SWIVEL BASESWIVEL BASE
-
1910-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
2011-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2142942 CAPCAP
-
2293421 SWIVEL BALLSWIVEL BALL
-
2316-8161949 STUDSTUD
-
2424-817702 SPRING
(Electric)SPRING
(Electric) -
25828160A2 CAM ASSEMBLY, ThrottleCAM ASSEMBLY, Throttle
-
2623-932481 BUSHINGBUSHING
-
27878174 ROD, ThrottleROD, Throttle
-
2812-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
2911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3012-828494 WASHER
(Electric) (Non-Handle)WASHER
(Electric) (Non-Handle) -
318214943 BRACKET
(Handle Versions)BRACKET
(Handle Versions) -
3210-4006731 SCREW, (M6 x 16)
(Handle Versions)SCREW, (M6 x 16)
(Handle Versions)
