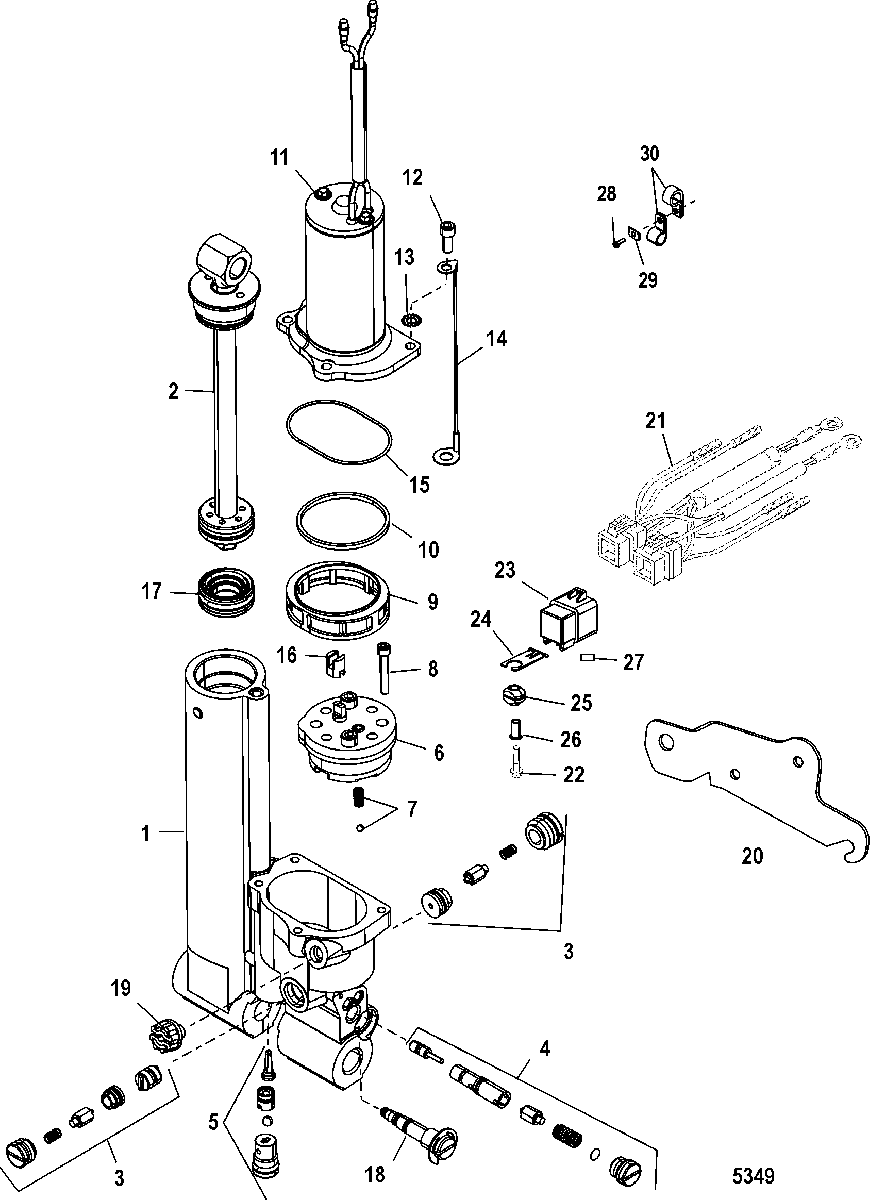

Power Trim для Mercury - 50 (3 CYL.) 0T980000 & Up

  • №
    Артикул
    Название
  • 1
    822344T14 POWER TRIM ASSEMBLY
    POWER TRIM ASSEMBLY
  • 1
    822344T14 POWER TRIM ASSEMBLY
    POWER TRIM ASSEMBLY
  • -
    25-827668A1 O-RING KIT
    O-RING KIT
  • 2
    893931A01 SHOCK ROD ASSEMBLY
    SHOCK ROD ASSEMBLY
  • 3
    827671A1 PILOT CHECK ASSEMBLY
    PILOT CHECK ASSEMBLY
  • 4
    827672A1 TILT RELIEF VALVE ASSEMBLY
    TILT RELIEF VALVE ASSEMBLY
  • 5
    827673A1 SEAT ASSEMBLY, Suction
    SEAT ASSEMBLY, Suction
  • 6
    827674A1 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 7
    NSS NOT SOLD SEPARATE, Ball/Spring
    NOT SOLD SEPARATE, Ball/Spring
  • 8
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 9
    NSS NOT SOLD SEPARATE, Filter
    NOT SOLD SEPARATE, Filter
  • 10
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 11
    827675A1 MOTOR ASSEMBLY
    MOTOR ASSEMBLY
  • 12
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 13
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 14
    88238A15 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 15
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 16
    NSS NOT SOLD SEPARATE, Coupler
    NOT SOLD SEPARATE, Coupler
  • 17
    827676 PISTON, Memory
    PISTON, Memory
  • 18
    893929A01 MANUAL RELEASE ASSEMBLY
    MANUAL RELEASE ASSEMBLY
  • 19
    19-811613 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • 20
    831276T BRACKET
    BRACKET
  • 21
    84-826802A9 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 22
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 23
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 24
    828102 BRACKET
    BRACKET
  • 25
    25-818967 GROMMET
    GROMMET
  • 26
    23-818968 BUSHING
    BUSHING
  • 27
    NSS NOT SOLD SEPARATE, Decal
    NOT SOLD SEPARATE, Decal
  • 28
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 29
    8M0084613 C WASHER
    C WASHER
  • 30
    54-22740 CLIP
    CLIP
