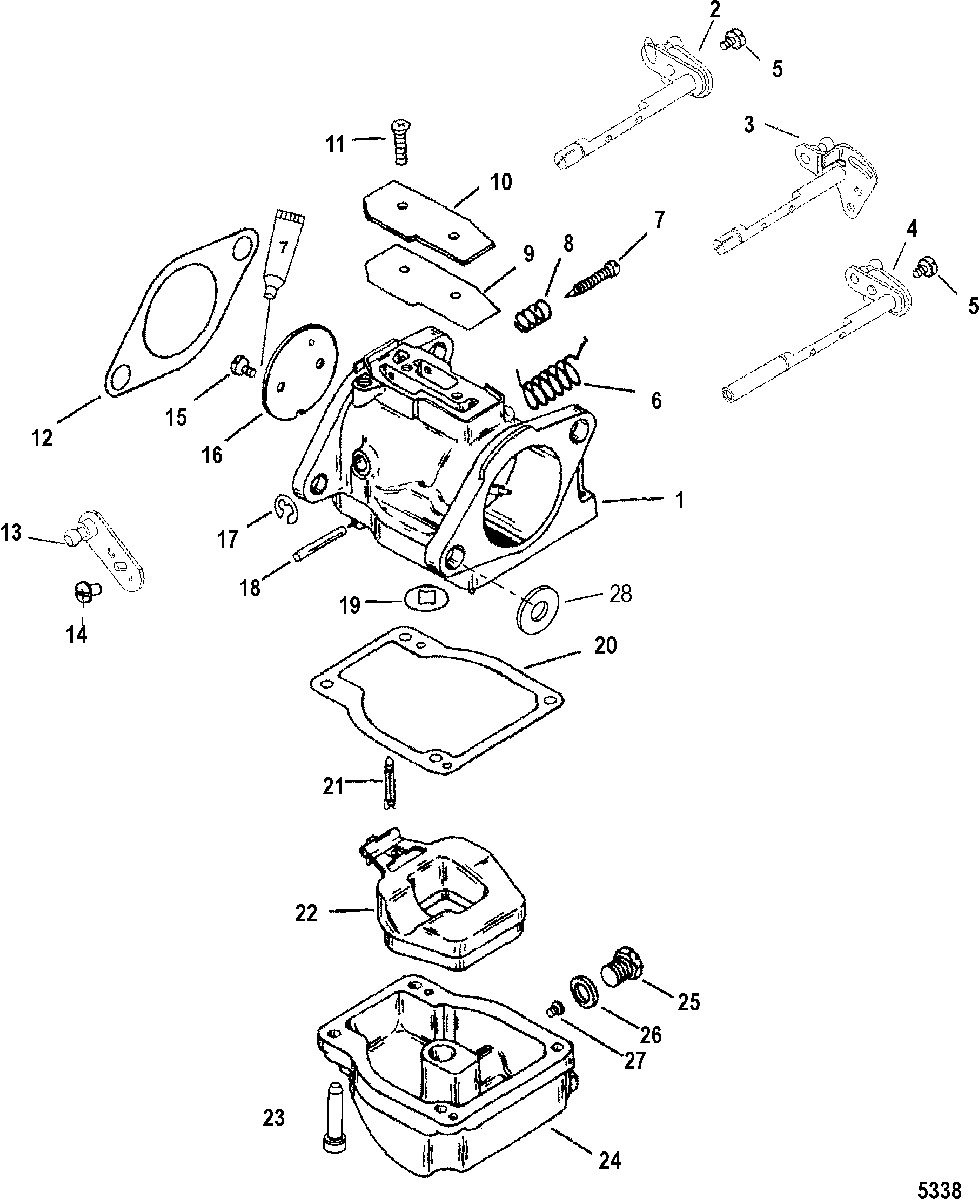

Carburetor для Mercury - 50 (3 CYL.) 0T980000 & Up

  • №
    Артикул
    Название
  • 1
    3301-823799T34 CARBURETOR, (WME 53-1)
    Top (Electric 40)
    CARBURETOR, (WME 53-1)
    Top (Electric 40)
  • 1
    3301-823799T34 CARBURETOR, (WME 92-1)
    Top (Electric 40)
    CARBURETOR, (WME 92-1)
    Top (Electric 40)
  • 1
    3301-823799T35 CARBURETOR, (WME 53-2)
    Center (Electric 40)
    CARBURETOR, (WME 53-2)
    Center (Electric 40)
  • 1
    3301-823799T35 CARBURETOR, (WME 92-2)
    Center (Electric 40)
    CARBURETOR, (WME 92-2)
    Center (Electric 40)
  • 1
    3301-823799T36 CARBURETOR, (WME 53-3)
    Bottom (Electric 40)
    CARBURETOR, (WME 53-3)
    Bottom (Electric 40)
  • 1
    3301-823799T36 CARBURETOR, (WME 92-3)
    Bottom (Electric 40)
    CARBURETOR, (WME 92-3)
    Bottom (Electric 40)
  • 1
    3301-823799T31 CARBURETOR, (WME 69-1)
    Top (Manual 40)
    CARBURETOR, (WME 69-1)
    Top (Manual 40)
  • 1
    3301-823799T31 CARBURETOR, (WME 91-1)
    Top (Manual 40)
    CARBURETOR, (WME 91-1)
    Top (Manual 40)
  • 1
    3301-823799T32 CARBURETOR, (WME 69-2)
    Center (Manual 40)
    CARBURETOR, (WME 69-2)
    Center (Manual 40)
  • 1
    3301-823799T32 CARBURETOR, (WME 91-2)
    Center (Manual 40)
    CARBURETOR, (WME 91-2)
    Center (Manual 40)
  • 1
    3301-823799A33 CARBURETOR, (WME 69-3)
    Bottom (Manual 40)
    CARBURETOR, (WME 69-3)
    Bottom (Manual 40)
  • 1
    3301-823799A33 CARBURETOR, (WME 91-3)
    Bottom (Manual 40)
    CARBURETOR, (WME 91-3)
    Bottom (Manual 40)
  • 1
    3301-824902T28 CARBURETOR, (WME 68-1)
    Top (Electric 50)
    CARBURETOR, (WME 68-1)
    Top (Electric 50)
  • 1
    3301-824902T28 CARBURETOR, (WME 93-1)
    Top (Electric 50)
    CARBURETOR, (WME 93-1)
    Top (Electric 50)
  • 1
    3301-824902T29 CARBURETOR, (WME 68-2)
    Center (Electric 50)
    CARBURETOR, (WME 68-2)
    Center (Electric 50)
  • 1
    3301-824902T29 CARBURETOR, (WME 93-2)
    Center (Electric 50)
    CARBURETOR, (WME 93-2)
    Center (Electric 50)
  • 1
    3301-824902T30 CARBURETOR, (WME 68-3)
    Bottom (Electric 50)
    CARBURETOR, (WME 68-3)
    Bottom (Electric 50)
  • 1
    3301-824902T30 CARBURETOR, (WME 93-3)
    Bottom (Electric 50)
    CARBURETOR, (WME 93-3)
    Bottom (Electric 50)
  • 2
    1395-823632 SHAFT, Throttle, Top
    (WME 53/68/92/93)
    SHAFT, Throttle, Top
    (WME 53/68/92/93)
  • 3
    1395-823633 SHAFT, Throttle, Center
    (WME 53/68/92/93)
    SHAFT, Throttle, Center
    (WME 53/68/92/93)
  • 4
    1395-823636 SHAFT, Throttle, Bottom
    (WME 53/68/92/93)
    SHAFT, Throttle, Bottom
    (WME 53/68/92/93)
  • 2
    1395-823632 SHAFT, Throttle, Top/Bottom
    (WME 69/91)
    SHAFT, Throttle, Top/Bottom
    (WME 69/91)
  • 3
    1395-823633 SHAFT, Throttle, Center
    (WME 69/91)
    SHAFT, Throttle, Center
    (WME 69/91)
  • 5
    1395-823634 SCREW, Top/Bottom
    SCREW, Top/Bottom
  • 6
    NSS NOT SOLD SEPARATE, Spring-Throttle Return
    NOT SOLD SEPARATE, Spring-Throttle Return
  • 7
    NSS NOT SOLD SEPARATE, Idle Needle
    NOT SOLD SEPARATE, Idle Needle
  • 8
    NSS NOT SOLD SEPARATE, Spring-Idle Needle
    NOT SOLD SEPARATE, Spring-Idle Needle
  • 9
    NSS NOT SOLD SEPARATE, Gasket-Cover Plate
    NOT SOLD SEPARATE, Gasket-Cover Plate
  • 10
    1395-811221 COVER PLATE
    COVER PLATE
  • 11
    1395-811220 SCREW, Cover Plate
    SCREW, Cover Plate
  • 12
    27-8144461 GASKET, Flange
    GASKET, Flange
  • 13
    1395-8113522 LEVER, Oil Pump, Bottom
    (WME 53/68/92/93)
    LEVER, Oil Pump, Bottom
    (WME 53/68/92/93)
  • 14
    1395-8086121 SCREW, Lever Retainer, Bottom
    (WME 53/68/92/93)
    SCREW, Lever Retainer, Bottom
    (WME 53/68/92/93)
  • 15
    10-F10155 SCREW, Throttle Valve
    SCREW, Throttle Valve
  • 16
    1395-97245 VALVE, Throttle
    VALVE, Throttle
  • 17
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 18
    F10064 SHAFT
    SHAFT
  • 19
    1395-808738 GASKET
    GASKET
  • 20
    NSS NOT SOLD SEPARATE, Gasket-Fuel Bowl
    NOT SOLD SEPARATE, Gasket-Fuel Bowl
  • 21
    10-95951 VALVE, Inlet Needle
    VALVE, Inlet Needle
  • 22
    1395-9594 FLOAT
    FLOAT
  • 23
    1395-808612 SCREW AND WASHER, (#8-32 x .750)
    SCREW AND WASHER, (#8-32 x .750)
  • 24
    1395-811693 BOWL, Fuel
    (WME 53/68/92/93)
    BOWL, Fuel
    (WME 53/68/92/93)
  • 24
    1395-811695 BOWL, Fuel, Top
    (WME 69/91)
    BOWL, Fuel, Top
    (WME 69/91)
  • 24
    1395-811693 BOWL, Fuel, Center/Bottom
    (WME 69/91)
    BOWL, Fuel, Center/Bottom
    (WME 69/91)
  • 25
    1395-811694 PLUG KIT
    (WME 69/91)
    PLUG KIT
    (WME 69/91)
  • 26
    1395-802731 SEAL, Consists of 4 Seals
    SEAL, Consists of 4 Seals
  • 27
    1395-7394 JET, (.044)
    (WME 53/69/91/92)
    JET, (.044)
    (WME 53/69/91/92)
  • 27
    1395-6359 JET, (.052)
    (WME 68/93)
    JET, (.052)
    (WME 68/93)
  • -
    1395-8236354 REPAIR KIT, Carburetor
    (1 Per Carburetor)
    REPAIR KIT, Carburetor
    (1 Per Carburetor)
  • -
    1395-8112231 GASKET SET, Carburetor
    (1 Per Carburetor)
    GASKET SET, Carburetor
    (1 Per Carburetor)
  • -
    27-828553A97 GASKET SET
    GASKET SET
