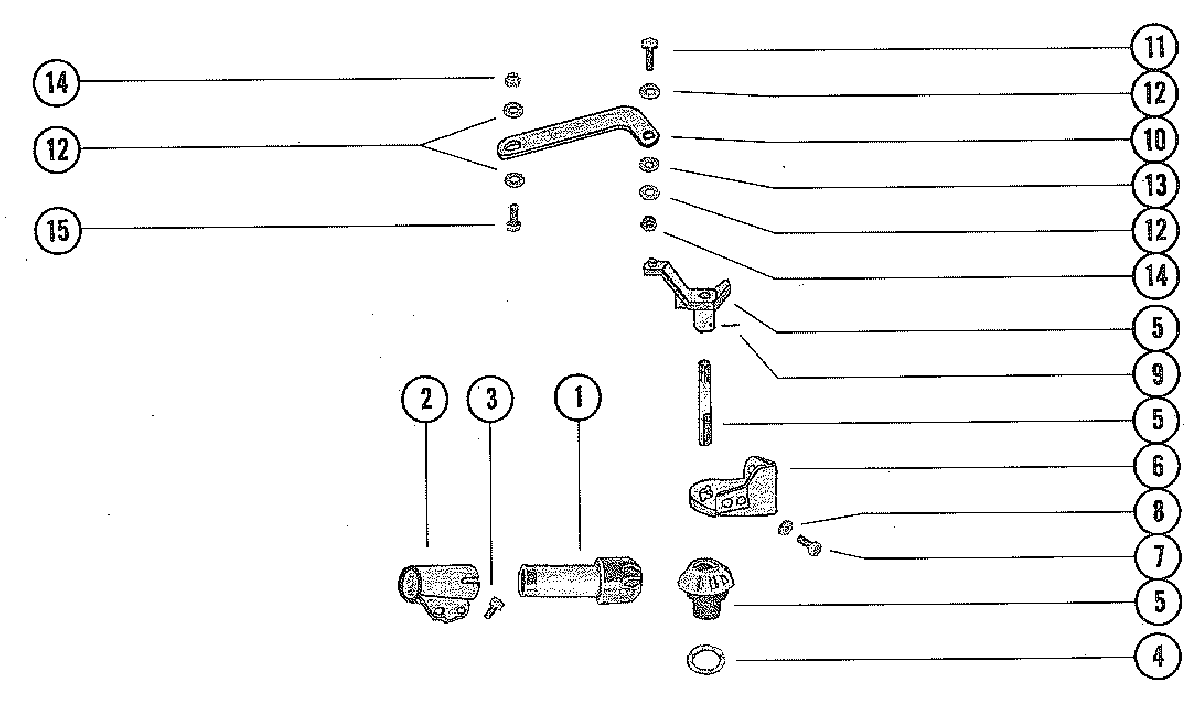

THROTTLE CONTROL LINKAGE для Mercury - 45, 4.5 (1 CYL.) 8026540 THRU 8068064

  • №
    Артикул
    Название
  • 1
    43-60856 GEAR, HORIZONTAL - THROTTLE CONTROL
    GEAR, HORIZONTAL - THROTTLE CONTROL
  • 2
    60885T HOUSING, HORIZONTAL GEAR
    HOUSING, HORIZONTAL GEAR
  • 3
    10-96138 SCREW
    THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8")
    SCREW
    THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8")
  • 4
    15-64653A1 SHIM, PINION GEAR TO BOTTOM COWL
    SHIM, PINION GEAR TO BOTTOM COWL
  • 5
    42666A3 GEAR AND SHAFT ASS"Y, THROTTLE CONTROL
    GEAR AND SHAFT ASS"Y, THROTTLE CONTROL
  • 6
    62099T BRACKET, THROTTLE CONTROL LEVER
    BRACKET, THROTTLE CONTROL LEVER
  • 7
    10-23015 SCREW, ADJUSTING - THROTTLE (1")
    SCREW, ADJUSTING - THROTTLE (1")
  • 8
    11-68219 NUT, LOCK - THROTTLE ADJUSITNG SCREWS
    NUT, LOCK - THROTTLE ADJUSITNG SCREWS
  • 9
    17-27088 PIN, ROLL - LEVER TO VERTICAL SHAFT
    PIN, ROLL - LEVER TO VERTICAL SHAFT
  • 10
    60920 LINK, THROTTLE LEVER TO STATOR PLATE
    LINK, THROTTLE LEVER TO STATOR PLATE
  • 11
    10-34696 SCREW
    THROTTLE LINK TO THROTTLE LEVER (3/4")
    SCREW
    THROTTLE LINK TO THROTTLE LEVER (3/4")
  • 12
    12-34392 WASHER, THROTTLE LINK SCREW
    WASHER, THROTTLE LINK SCREW
  • 13
    13-29720 WASHER, WAVE - THROTTLE LINK SCREW
    WASHER, WAVE - THROTTLE LINK SCREW
  • 14
    11-28656 NUT, THROTTLE LINK SCREW
    NUT, THROTTLE LINK SCREW
  • 15
    10-56027 SCREW, THROTTLE LINK TO STATOR PLATE (7/8")
    SCREW, THROTTLE LINK TO STATOR PLATE (7/8")
