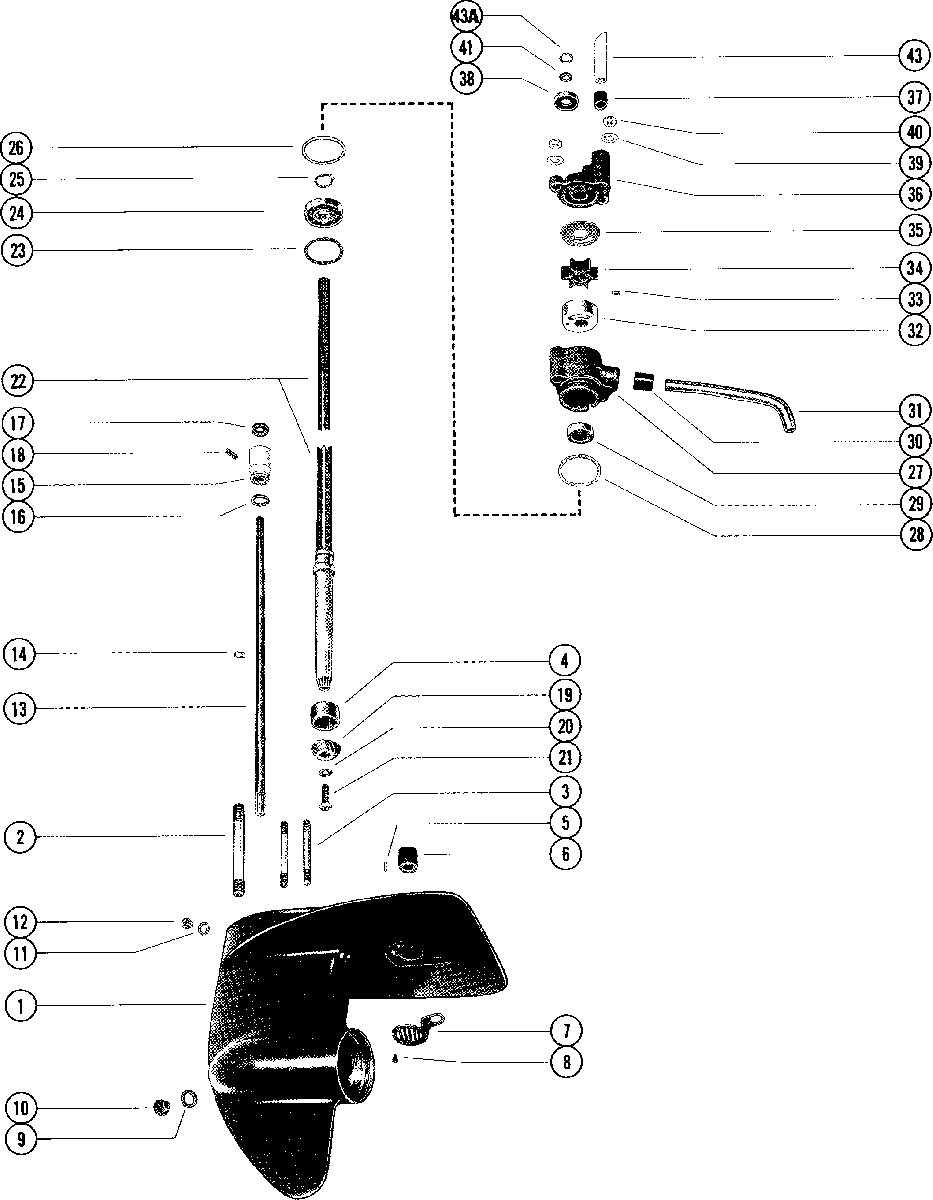

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 45, 4.5 (1 CYL.) 8026540 THRU 8068064

  • №
    Артикул
    Название
  • -
    1630-7360A12 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 4377556 AND BELOW
    AUSTRALIA 8037074 AND BELOW
    BELGIUM 9110488 AND BELOW
    CANADA 7072372 AND BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 4377556 AND BELOW
    AUSTRALIA 8037074 AND BELOW
    BELGIUM 9110488 AND BELOW
    CANADA 7072372 AND BELOW
  • -
    1630-7360A13 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 4377556 AND BELOW
    AUSTRALIA 8037074 AND BELOW
    BELGIUM 9110488 AND BELOW
    CANADA 7072372 AND BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 4377556 AND BELOW
    AUSTRALIA 8037074 AND BELOW
    BELGIUM 9110488 AND BELOW
    CANADA 7072372 AND BELOW
  • -
    1630-7360A12 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 4377557 THRU 5270783
    AUSTRALIA 8037075 THRU 8059344
    BELGIUM 9110489 THRU 9221755
    CANADA 7072373 THRU 7128837
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 4377557 THRU 5270783
    AUSTRALIA 8037075 THRU 8059344
    BELGIUM 9110489 THRU 9221755
    CANADA 7072373 THRU 7128837
  • -
    1630-7360A13 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 4377557 THRU 5270783
    AUSTRALIA 8037075 THRU 8059344
    BELGIUM 9110489 THRU 9221755
    CANADA 7072373 THRU 7128837
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 4377557 THRU 5270783
    AUSTRALIA 8037075 THRU 8059344
    BELGIUM 9110489 THRU 9221755
    CANADA 7072373 THRU 7128837
  • -
    1630-7360A12 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 5270784 THRU 5397701
    AUSTRALIA 8059345 THRU 8059594
    BELGIUM 9221756 THRU 9244405
    CANADA 7128838 THRU 7137937
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 5270784 THRU 5397701
    AUSTRALIA 8059345 THRU 8059594
    BELGIUM 9221756 THRU 9244405
    CANADA 7128838 THRU 7137937
  • -
    1630-7360A13 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) 1
    SEE NOTE BELOW UNITED STATES 5270784 THRU 5397701
    AUSTRALIA 8059345 THRU 8059594
    BELGIUM 9221756 THRU 9244405
    CANADA 7128838 THRU 7137937
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) 1
    SEE NOTE BELOW UNITED STATES 5270784 THRU 5397701
    AUSTRALIA 8059345 THRU 8059594
    BELGIUM 9221756 THRU 9244405
    CANADA 7128838 THRU 7137937
  • -
    1630-7360A29 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 5397702 AND UP
    BELGIUM 9244406 AND UP
    CANADA 7137937 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 5397702 AND UP
    BELGIUM 9244406 AND UP
    CANADA 7137937 AND UP
  • -
    1630-7360A30 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 5397702 AND UP
    BELGIUM 9244406 AND UP
    CANADA 7137937 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 5397702 AND UP
    BELGIUM 9244406 AND UP
    CANADA 7137937 AND UP
  • 1
    1630-4921A1 GEAR HOUSING ASSEMBLY
    UNITED STATES 4377556 AND BELOW
    AUSTRALIA 8037074 AND BELOW
    BELGIUM 9110488 AND BELOW
    CANADA 7072372 AND BELOW
    GEAR HOUSING ASSEMBLY
    UNITED STATES 4377556 AND BELOW
    AUSTRALIA 8037074 AND BELOW
    BELGIUM 9110488 AND BELOW
    CANADA 7072372 AND BELOW
  • 1
    1630-7360A11 GEAR HOUSING ASSEMBLY
    UNITED STATES 4377557 THRU 5270783
    AUSTRALIA 8037075 THRU 8059344
    BELGIUM 9110489 THRU 9221755
    CANADA 7072373 THRU 7128837
    GEAR HOUSING ASSEMBLY
    UNITED STATES 4377557 THRU 5270783
    AUSTRALIA 8037075 THRU 8059344
    BELGIUM 9110489 THRU 9221755
    CANADA 7072373 THRU 7128837
  • 1
    1630-7360A11 GEAR HOUSING ASSEMBLY
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
    GEAR HOUSING ASSEMBLY
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
  • 2
    16-58138 STUD
    GEAR HOUSING TO DRIVE SHAFT HOUSING (3 1/2")
    STUD
    GEAR HOUSING TO DRIVE SHAFT HOUSING (3 1/2")
  • 3
    16-58136 STUD
    WATER PUMP HOUSING TO GEAR HOUSING (2 3/4")
    STUD
    WATER PUMP HOUSING TO GEAR HOUSING (2 3/4")
  • 4
    31-22756 BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 5
    17-20032 PIN, DOWEL - LOCATING
    PIN, DOWEL - LOCATING
  • 6
    26-33613 SEAL, RUBBER - WATER INTAKE TUBE
    SEAL, RUBBER - WATER INTAKE TUBE
  • -
    23-86215 BEARING, NYLON - INTAKE TUBE SEAL
    BEARING, NYLON - INTAKE TUBE SEAL
  • 7
    35-33425 SCREEN, WATER INTAKE
    SCREEN, WATER INTAKE
  • 8
    10-28642 SCREW
    WATER INTAKE SCREEN TO GEAR HOUSING
    SCREW
    WATER INTAKE SCREEN TO GEAR HOUSING
  • 9
    12-191833 WASHER, GREASE FILLER HOLE SCREW
    WASHER, GREASE FILLER HOLE SCREW
  • 10
    10-79953Q04 SCREW, GREASE FILLER HOLE
    SCREW, GREASE FILLER HOLE
  • 11
    19643 WASHER, GREASE VENT HOLE SCREW
    WASHER, GREASE VENT HOLE SCREW
  • 12
    10-28653 SCREW, GREASE VENT HOLE
    SCREW, GREASE VENT HOLE
  • 13
    71659A1 SHAFT ASSEMBLY, SHIFT(SHORT SHAFT)
    SHAFT ASSEMBLY, SHIFT(SHORT SHAFT)
  • 13
    71658A1 SHAFT ASSEMBLY, SHIFT(LONG SHAFT)
    SHAFT ASSEMBLY, SHIFT(LONG SHAFT)
  • 14
    53-22899 RING, RETAINING - SHIFT SHAFT
    RING, RETAINING - SHIFT SHAFT
  • 15
    23-30676A1 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 16
    25-26802 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 17
    26-30696 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 18
    10-39149 SCREW, SHIFT SHAFT BUSHING RETAINER (1/2")
    SCREW, SHIFT SHAFT BUSHING RETAINER (1/2")
  • 19
    43-98696 GEAR, PINION
    GEAR, PINION
  • 20
    14-30377 TAB WASHER, PINION GEAR SCREW
    TAB WASHER, PINION GEAR SCREW
  • 21
    10-30376 SCREW, PINION GEAR TO DRIVE SHAFT (3/4")
    SCREW, PINION GEAR TO DRIVE SHAFT (3/4")
  • 22
    45-75034 DRIVE SHAFT(SHORT SHAFT)
    UNITED STATES 5397701 AND BELOW
    AUSTRALIA 8059594 AND BELOW
    BELGIUM 9244405 AND BELOW
    CANADA 7137937 AND BELOW
    DRIVE SHAFT(SHORT SHAFT)
    UNITED STATES 5397701 AND BELOW
    AUSTRALIA 8059594 AND BELOW
    BELGIUM 9244405 AND BELOW
    CANADA 7137937 AND BELOW
  • 22
    45-75033 DRIVE SHAFT(LONG SHAFT)
    UNITED STATES 5397701 AND BELOW
    AUSTRALIA 8059594 AND BELOW
    BELGIUM 9244405 AND BELOW
    CANADA 7137937 AND BELOW
    DRIVE SHAFT(LONG SHAFT)
    UNITED STATES 5397701 AND BELOW
    AUSTRALIA 8059594 AND BELOW
    BELGIUM 9244405 AND BELOW
    CANADA 7137937 AND BELOW
  • 22
    45-95873A1 DRIVE SHAFT(SHORT SHAFT)
    UNITED STATES 5397702 AND UP
    BELGIUM 9244406 AND UP
    CANADA 7137937 AND UP
    DRIVE SHAFT(SHORT SHAFT)
    UNITED STATES 5397702 AND UP
    BELGIUM 9244406 AND UP
    CANADA 7137937 AND UP
  • 22
    45-95874A1 DRIVE SHAFT(LONG SHAFT)
    UNITED STATES 5397702 AND UP
    BELGIUM 9244406 AND UP
    CANADA 7137937 AND UP
    DRIVE SHAFT(LONG SHAFT)
    UNITED STATES 5397702 AND UP
    BELGIUM 9244406 AND UP
    CANADA 7137937 AND UP
  • 23
    15-30527A1 SHIM ASSEMBLY
    BALL BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM ASSEMBLY
    BALL BEARING TO GEAR HOUSING (.002-3-5-10)
  • 24
    30-70944 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 25
    53-30523 RING, RETAINING - BALL BEARING
    RING, RETAINING - BALL BEARING
  • 26
    15-30527A1 SHIM ASSEMBLY
    BALL BEARING TO PUMP HOUSING (.002-3-5-10)
    SHIM ASSEMBLY
    BALL BEARING TO PUMP HOUSING (.002-3-5-10)
  • 27
    46-70941T01 WATER PUMP HOUSING ASSEMBLY
    WATER PUMP HOUSING ASSEMBLY
  • 28
    25-29439 "O" RING, WATER PUMP HOUSING
    "O" RING, WATER PUMP HOUSING
  • 29
    26-30900T OIL SEAL, WATER PUMP HOUSING
    OIL SEAL, WATER PUMP HOUSING
  • 30
    26-33613 SEAL, WATER INTAKE TUBE
    SEAL, WATER INTAKE TUBE
  • 31
    32-34293 TUBE, WATER INTAKE
    TUBE, WATER INTAKE
  • 32
    70977T INSERT, WATER PUMP HOUSING
    INSERT, WATER PUMP HOUSING
  • 33
    28-8M0032835 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 34
    47-89981 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 35
    46895 PLATE, FACE - WATER PUMP HOUSING TO COVER
    PLATE, FACE - WATER PUMP HOUSING TO COVER
  • 36
    93224A1 WATER PUMP COVER ASSEMBLY
    WATER PUMP COVER ASSEMBLY
  • 37
    26-36558 SEAL, WATER PUMP COVER
    SEAL, WATER PUMP COVER
  • --
    23-13127 BEARING, NYLON - WATER PUMP COVER
    BEARING, NYLON - WATER PUMP COVER
  • 38
    26-30913 OIL SEAL, WATER PUMP COVER
    OIL SEAL, WATER PUMP COVER
  • 39
    12-20533 WASHER
    WATER PUMP HOUSING AND COVER STUD
    WASHER
    WATER PUMP HOUSING AND COVER STUD
  • 40
    11-35888 NUT, WATER PUMP HOUSING STUD
    NUT, WATER PUMP HOUSING STUD
  • 41
    25-30526 RING, RUBBER - CENTRIFUGAL SLINGER
    RING, RUBBER - CENTRIFUGAL SLINGER
  • 43
    23-31792T SLEEVE, GUIDE - INLET TUBE
    SLEEVE, GUIDE - INLET TUBE
  • 43A
    25-62704 "O" RING, DRIVE SHAFT
    UNITED STATES 5397702 AND UP
    BELGIUM 9244406 AND UP
    CANADA 7137937 AND UP
    "O" RING, DRIVE SHAFT
    UNITED STATES 5397702 AND UP
    BELGIUM 9244406 AND UP
    CANADA 7137937 AND UP
  • -
    46-70941A3 WATER PUMP KIT
    WATER PUMP KIT
  • -
    26-77066A1 SEAL KIT
    SEAL KIT
  • -
    27-78139A80 GASKET SET
    GASKET SET
  • -
    27-78139A80 GASKET SET
    GASKET SET
