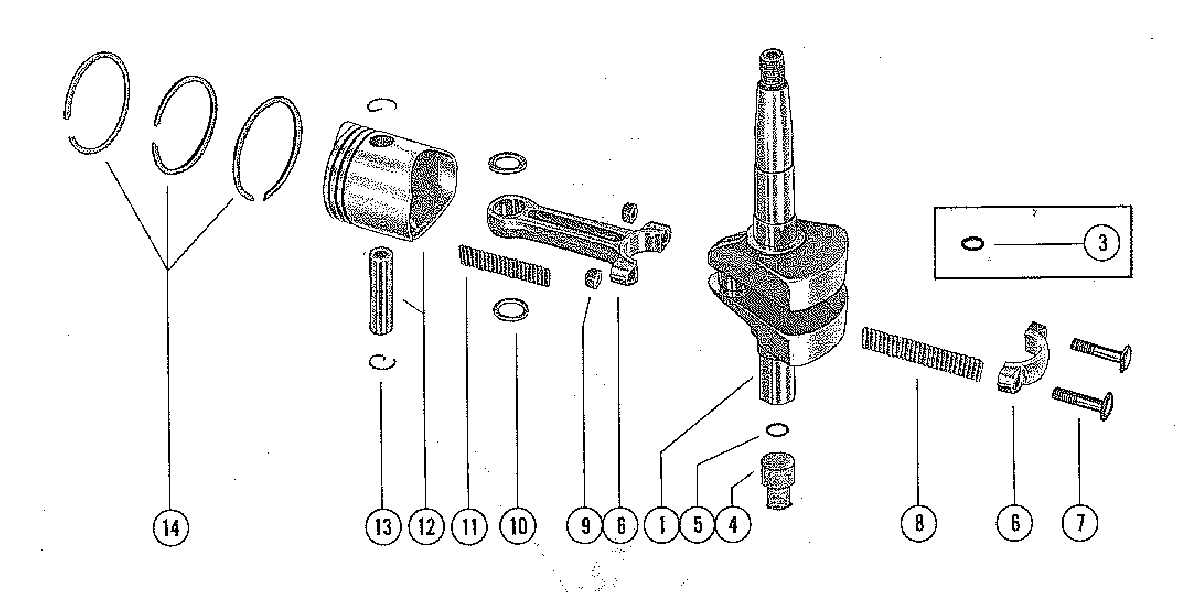

CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 45, 4.5 (1 CYL.) 8026540 THRU 8068064
-
№АртикулНазвание
-
1427-3513 CRANKSHAFT
UNITED STATES 5397701 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9244405 AND BELOW
CANADA 7137937 AND BELOWCRANKSHAFT
UNITED STATES 5397701 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9244405 AND BELOW
CANADA 7137937 AND BELOW -
326-72793 SEAL, CARRIER
UNITED STATES 5397701 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9244405 AND BELOW
CANADA 7137937 AND BELOWSEAL, CARRIER
UNITED STATES 5397701 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9244405 AND BELOW
CANADA 7137937 AND BELOW -
1427-7334A2 CRANKSHAFT ASSEMBLY
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UPCRANKSHAFT ASSEMBLY
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UP -
479952A1 CARRIER ASSEMBLY
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UPCARRIER ASSEMBLY
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UP -
512-79960 SEAL, BELT
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UPSEAL, BELT
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UP -
6608-7395A2 CONNECTING ROD ASSEMBLY
UNITED STATES 5270783 AND BELOW
AUSTRALIA 8059344 AND BELOW
BELGIUM 9221755 AND BELOW
CANADA 7128837 AND BELOWCONNECTING ROD ASSEMBLY
UNITED STATES 5270783 AND BELOW
AUSTRALIA 8059344 AND BELOW
BELGIUM 9221755 AND BELOW
CANADA 7128837 AND BELOW -
6608-7395A2 CONNECTING ROD ASSEMBLY
UNITED STATES 5270784 AND UP
AUSTRALIA 8059345 AND UP
BELGIUM 9221756 AND UP
CANADA 7128838 AND UPCONNECTING ROD ASSEMBLY
UNITED STATES 5270784 AND UP
AUSTRALIA 8059345 AND UP
BELGIUM 9221756 AND UP
CANADA 7128838 AND UP -
710-87374 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
831-8M0045032 BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
911-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
1012-65967 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
1129-31505 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
12719-7391T3 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
1340-21666 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
1439-21665A12 RING, PISTONRING, PISTON
-
-27-78139A80 GASKET SETGASKET SET
-
-27-78139A80 GASKET SETGASKET SET
