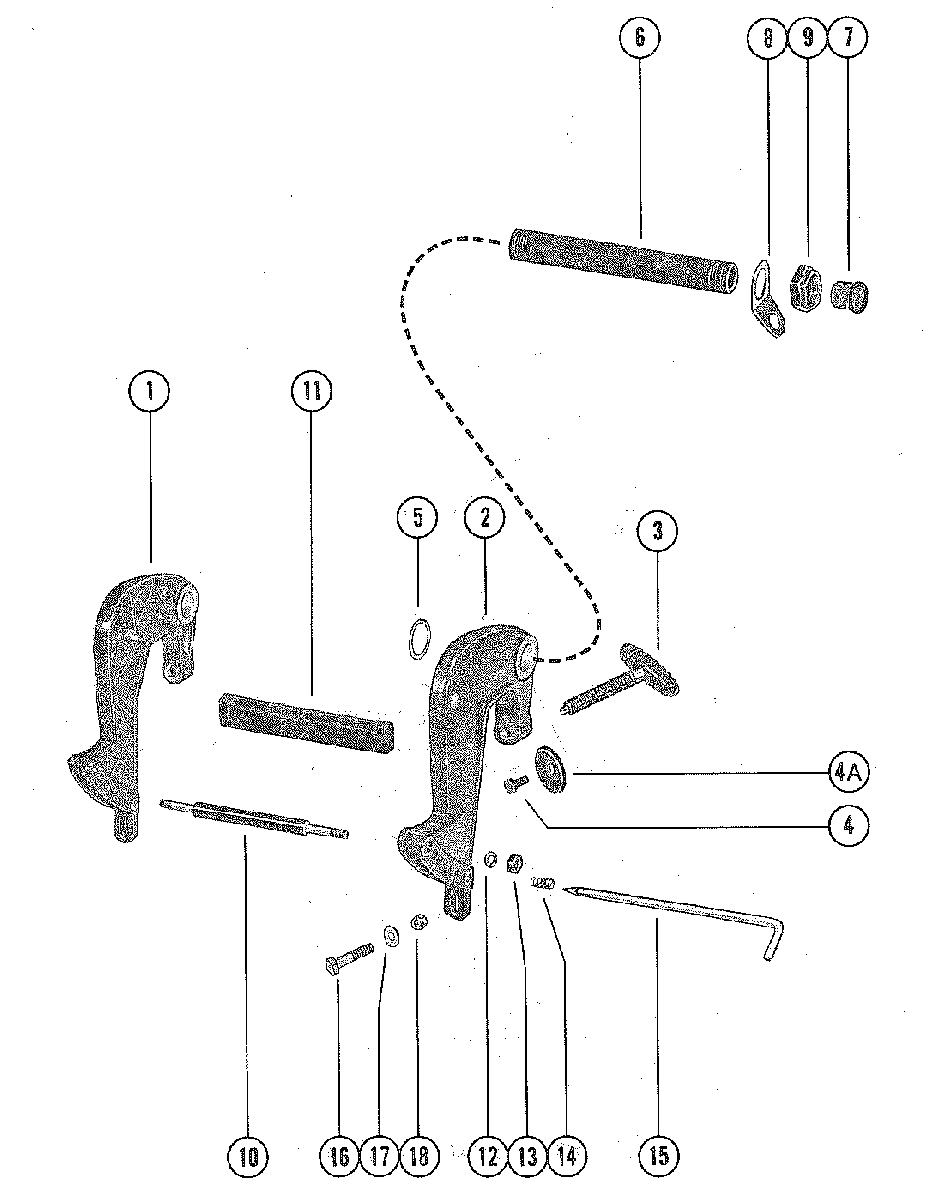

CLAMP BRACKET ASSEMBLY для Mercury - 45, 4.5 (1 CYL.) 8026540 THRU 8068064
-
№АртикулНазвание
-
11468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)
UNITED STATES 4377556 AND BELOW
AUSTRALIA 8037074 AND BELOW
BELGIUM 9110488 AND BELOW
CANADA 7072372 AND BELOWCLAMP BRACKET ASSEMBLY (PORT)
UNITED STATES 4377556 AND BELOW
AUSTRALIA 8037074 AND BELOW
BELGIUM 9110488 AND BELOW
CANADA 7072372 AND BELOW -
21467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)
UNITED STATES 4377556 AND BELOW
AUSTRALIA 8037074 AND BELOW
BELGIUM 9110488 AND BELOW
CANADA 7072372 AND BELOWCLAMP BRACKET ASSEMBLY (STARBOARD)
UNITED STATES 4377556 AND BELOW
AUSTRALIA 8037074 AND BELOW
BELGIUM 9110488 AND BELOW
CANADA 7072372 AND BELOW -
310-77190A3 THUMB SCREW ASSEMBLY
UNITED STATES 4377556 AND BELOW
AUSTRALIA 8037074 AND BELOW
BELGIUM 9110488 AND BELOW
CANADA 7072372 AND BELOWTHUMB SCREW ASSEMBLY
UNITED STATES 4377556 AND BELOW
AUSTRALIA 8037074 AND BELOW
BELGIUM 9110488 AND BELOW
CANADA 7072372 AND BELOW -
412-26227 WASHER, THUMB SCREW
UNITED STATES 4377556 AND BELOW
AUSTRALIA 8037074 AND BELOW
BELGIUM 9110488 AND BELOW
CANADA 7072372 AND BELOWWASHER, THUMB SCREW
UNITED STATES 4377556 AND BELOW
AUSTRALIA 8037074 AND BELOW
BELGIUM 9110488 AND BELOW
CANADA 7072372 AND BELOW -
11468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)
WASHER ATTACHED WITH A RETAINING RINGCLAMP BRACKET ASSEMBLY (PORT)
WASHER ATTACHED WITH A RETAINING RING -
21467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)
WASHER ATTACHED WITH A RETAINING RINGCLAMP BRACKET ASSEMBLY (STARBOARD)
WASHER ATTACHED WITH A RETAINING RING -
310-77190A3 THUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A RETAINING RINGTHUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A RETAINING RING -
11468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)
WASHER ATTACHED WITH A SCREW.CLAMP BRACKET ASSEMBLY (PORT)
WASHER ATTACHED WITH A SCREW. -
21467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)
WASHER ATTACHED WITH A SCREW.CLAMP BRACKET ASSEMBLY (STARBOARD)
WASHER ATTACHED WITH A SCREW. -
310-77190A3 THUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A SCREW.THUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A SCREW. -
412-818884 WASHER, THUMB SCREW
WASHER ATTACHED WITH A SCREW.WASHER, THUMB SCREW
WASHER ATTACHED WITH A SCREW. -
4A10-768042 SCREW, THUMB SCREW
WASHER ATTACHED WITH A SCREW.SCREW, THUMB SCREW
WASHER ATTACHED WITH A SCREW. -
512-52864 WASHER, TILT TUBE
UNITED STATES 4419186 AND BELOW
AUSTRALIA 8039674 AND BELOW
BELGIUM 9125664 AND BELOW
CANADA 7080422 AND BELOWWASHER, TILT TUBE
UNITED STATES 4419186 AND BELOW
AUSTRALIA 8039674 AND BELOW
BELGIUM 9125664 AND BELOW
CANADA 7080422 AND BELOW -
645757 TILT TUBE
UNITED STATES 4419186 AND BELOW
AUSTRALIA 8039674 AND BELOW
BELGIUM 9125664 AND BELOW
CANADA 7080422 AND BELOWTILT TUBE
UNITED STATES 4419186 AND BELOW
AUSTRALIA 8039674 AND BELOW
BELGIUM 9125664 AND BELOW
CANADA 7080422 AND BELOW -
512-71421 WASHER, TILT TUBE
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UPWASHER, TILT TUBE
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UP -
696962 TILT TUBE
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UPTILT TUBE
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UP -
719-39333 PLUG, TILT TUBE
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UPPLUG, TILT TUBE
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UP -
854-8M0085928 CLIP, SAFETY CHAIN - TILT TUBE (OPTIONAL)CLIP, SAFETY CHAIN - TILT TUBE (OPTIONAL)
-
911-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
1016-59622 STUD, CLAMP BRACKET
UNITED STATES 4419186 AND BELOW
AUSTRALIA 8039674 AND BELOW
BELGIUM 9125664 AND BELOW
CANADA 7080422 AND BELOWSTUD, CLAMP BRACKET
UNITED STATES 4419186 AND BELOW
AUSTRALIA 8039674 AND BELOW
BELGIUM 9125664 AND BELOW
CANADA 7080422 AND BELOW -
1016-71417 STUD, CLAMP BRACKET
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UPSTUD, CLAMP BRACKET
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UP -
1171420 HANDLE, CARRYING
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UPHANDLE, CARRYING
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UP -
1213-26992 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1311-29598 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1424-62143 SPRING, TILT LOCK PINSPRING, TILT LOCK PIN
-
1517-55952A1 TILT LOCK PIN ASSEMBLY
UNITED STATES 4419186 AND BELOW
AUSTRALIA 8039674 AND BELOW
BELGIUM 9125664 AND BELOW
CANADA 7080422 AND BELOWTILT LOCK PIN ASSEMBLY
UNITED STATES 4419186 AND BELOW
AUSTRALIA 8039674 AND BELOW
BELGIUM 9125664 AND BELOW
CANADA 7080422 AND BELOW -
1517-71418A2 TILT LOCK PIN ASSEMBLY
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UPTILT LOCK PIN ASSEMBLY
UNITED STATES 4419187 AND UP
AUSTRALIA 8039675 AND UP
BELGIUM 9125665 AND UP
CANADA 7080423 AND UP -
1610-67982 BOLT, CLAMP BRACKET TO BOATBOLT, CLAMP BRACKET TO BOAT
-
1712-67983 WASHER, CLAMP BRACKET SCREWWASHER, CLAMP BRACKET SCREW
-
1811-8267098 NUT, CLAMP BRACKET SCREWNUT, CLAMP BRACKET SCREW
