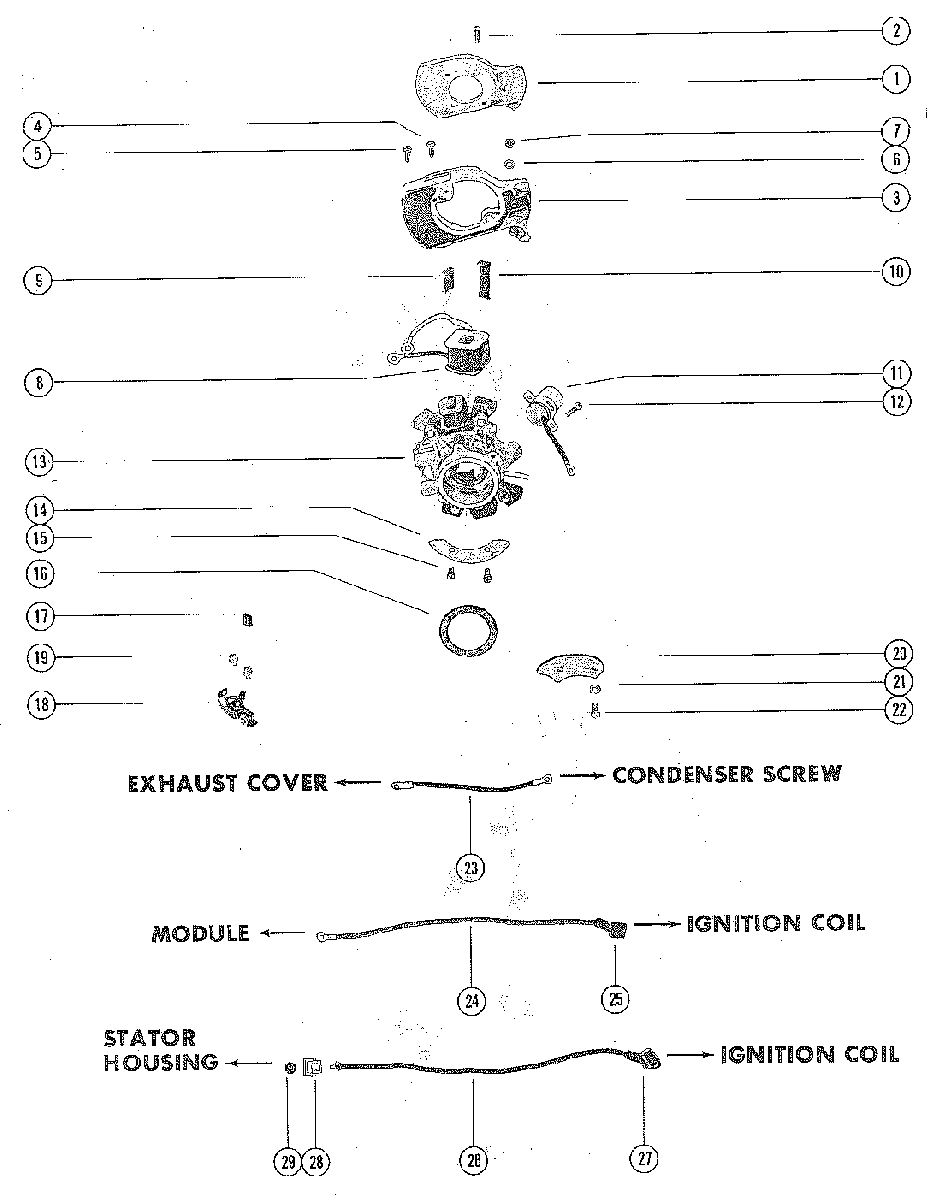

STATOR AND IGNITION COMPONENTS для Mercury - 45, 4.5 (1 CYL.) 8026540 THRU 8068064
-
№АртикулНазвание
-
1336-4524A1 COVER ASSEMBLYCOVER ASSEMBLY
-
210-60491 SCREW, COVER TO MODULE (5/8")SCREW, COVER TO MODULE (5/8")
-
3336-4516A2 IGNITION MODULE ASSEMBLYIGNITION MODULE ASSEMBLY
-
410-59800 SCREW, MODULE TO STATOR (9/16")SCREW, MODULE TO STATOR (9/16")
-
510-36046 SCREW, MODULE- COIL LEAD (1/4")SCREW, MODULE- COIL LEAD (1/4")
-
613-26996 LOCKWASHER, MODULE
IGNITION COIL LEAD TERMINALSLOCKWASHER, MODULE
IGNITION COIL LEAD TERMINALS -
711-45076 NUT, MODULE - IGNITION COIL LEAD TERMINALSNUT, MODULE - IGNITION COIL LEAD TERMINALS
-
8336-4470A1 COIL, HIGH SPEEDCOIL, HIGH SPEED
-
954-59538T CLIP, COIL RETAININGCLIP, COIL RETAINING
-
1054-59539 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
11336-4463 CONDENSER ASSEMBLYCONDENSER ASSEMBLY
-
1210-62269 SCREW, CONDENSER ATTACHING (7/16")SCREW, CONDENSER ATTACHING (7/16")
-
13336-4476A6 STATOR ASSEMBLYSTATOR ASSEMBLY
-
14336-4458 PLATE, STATOR HOLD DOWNPLATE, STATOR HOLD DOWN
-
1510-35400 SCREW, HOLD DOWN PLATE TO STATOR (7/16")SCREW, HOLD DOWN PLATE TO STATOR (7/16")
-
1615-33910015 SHIM, STATOR PLATE TO UPPER END CAPSHIM, STATOR PLATE TO UPPER END CAP
-
17336-3989 WICK, CAM WIPER -STATOR ASSEMBLYWICK, CAM WIPER -STATOR ASSEMBLY
-
18336-4318A2 MAKER ASSEMBLY, STATOR HOUSINGMAKER ASSEMBLY, STATOR HOUSING
-
1910-56266 SCREW, MAKER TO STATOR HOUSING (3/8")SCREW, MAKER TO STATOR HOUSING (3/8")
-
2056520 CAM, THROTTLECAM, THROTTLE
-
2110-69054 SCREW, THROTTLE CAM TO CONTACT HOUSINGSCREW, THROTTLE CAM TO CONTACT HOUSING
-
2212-37998 WASHER, THROTTLE CAM ATTACHING SCREWWASHER, THROTTLE CAM ATTACHING SCREW
-
2356757A5 JUMPER WIRE ASS'Y
CONDENSER TO COVER (BLACK-4 1/4")JUMPER WIRE ASS'Y
CONDENSER TO COVER (BLACK-4 1/4") -
2456318A11 LEAD ASSEMBLY
MODULE TO IGNITION COIL (GREEN - 12 1/4")LEAD ASSEMBLY
MODULE TO IGNITION COIL (GREEN - 12 1/4") -
2538938 BOOT, LEAD ASSEMBLYBOOT, LEAD ASSEMBLY
-
2656316A4 CABLE ASSEMBLY
STATOR HOUSING (WHITE - 10 3/4")CABLE ASSEMBLY
STATOR HOUSING (WHITE - 10 3/4") -
2738938 BOOT, CABLEBOOT, CABLE
-
28336-4460 INSULATOR, CABLE TO CONTACT HOUSINGINSULATOR, CABLE TO CONTACT HOUSING
-
2911-56325 NUT, CABLE INSULATORNUT, CABLE INSULATOR
