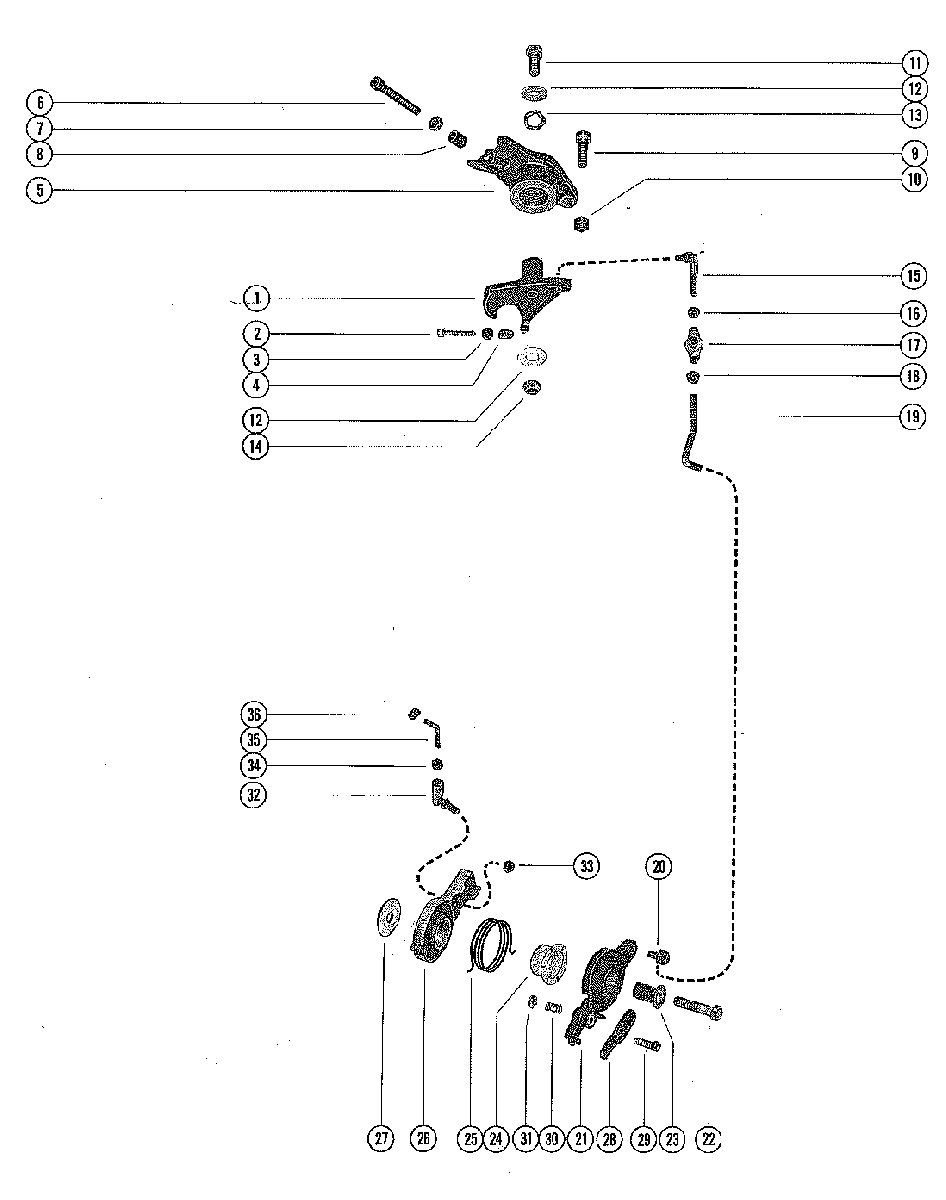

THROTTLE CONTROL LINKAGE AND SPARK ADVANCE для Mercury - 402 8002335 THRU 8027439
-
№АртикулНазвание
-
195044A1 THROTTLE CAM ACTUATORTHROTTLE CAM ACTUATOR
-
210-63102 SCREW, ADJUSTING - THROTTLE CAMSCREW, ADJUSTING - THROTTLE CAM
-
311-33122 NUR, JAM - ADJUSTING SCREWNUR, JAM - ADJUSTING SCREW
-
426852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
539522T BRACKET, THROTTLE CONTROL SHAFT (NOT AS SHOWN)BRACKET, THROTTLE CONTROL SHAFT (NOT AS SHOWN)
-
610-24228 SCREW, ADJUSTING - THROTTLE CONTROL BRACKET (1 7/8")SCREW, ADJUSTING - THROTTLE CONTROL BRACKET (1 7/8")
-
711-20890 NUT, JAM - ADJUSTING SCREWNUT, JAM - ADJUSTING SCREW
-
826852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
910-20639 SCREW, THROTTLE CONTROL BRACKET (11/8")SCREW, THROTTLE CONTROL BRACKET (11/8")
-
1011-29250 NUT, THROTTLE CONTROL BRACKET SCREWNUT, THROTTLE CONTROL BRACKET SCREW
-
1110-34438 SCREW, THROTTLE CONTROL BRACKET TO THROTTLE CAM (2 3/8")SCREW, THROTTLE CONTROL BRACKET TO THROTTLE CAM (2 3/8")
-
1212-25893 WASHER, THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREWWASHER, THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREW
-
1313-62172 WAVE WASHER, THROTTLE CONTROL BRACKET/THROTTLE CAM SCREWWAVE WASHER, THROTTLE CONTROL BRACKET/THROTTLE CAM SCREW
-
1411-29250 NUT, THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREWNUT, THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREW
-
1595044A1 BALL JOINT, THROTTLE CAMBALL JOINT, THROTTLE CAM
-
1611-20013 NUT, JAM - BALL JOINT TO TURNBUCKLENUT, JAM - BALL JOINT TO TURNBUCKLE
-
1795044A1 TURNBUCKLE, SPARK ADVANCE LINKAGETURNBUCKLE, SPARK ADVANCE LINKAGE
-
1811-20754 NUT, JAM -UPPER LINK ROD TO TURNBUCKLENUT, JAM -UPPER LINK ROD TO TURNBUCKLE
-
1995044A1 ROD, LINK - UPPERROD, LINK - UPPER
-
2057440 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
2195044A1 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
2210-818165 SCREW, THROTTLE COSNTROL LEVEL TO CYLINDER BLOCK (1 3/4")SCREW, THROTTLE COSNTROL LEVEL TO CYLINDER BLOCK (1 3/4")
-
2323-55164 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
2423-55171 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
2524-55162 SPRING, RETURN - SPARK ADVANCE LEVERSPRING, RETURN - SPARK ADVANCE LEVER
-
2695044A1 LEVER, SPARK ADVANCELEVER, SPARK ADVANCE
-
2712-46765 WASHER, THROTTLE CONTROL LEVEL SCREWWASHER, THROTTLE CONTROL LEVEL SCREW
-
2839483 LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
-
2910-69026 SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
-
3024-20099 SPRING, COMPRESSION - LATCH SCREWSPRING, COMPRESSION - LATCH SCREW
-
3111-826709109 NUT, LATCH SCREWNUT, LATCH SCREW
-
3262459T BALL JOINT, SPARK ADVANCE LEVERBALL JOINT, SPARK ADVANCE LEVER
-
3311-46438 NUT, BALL JOINT TO SPARK ADVANCE LEVERNUT, BALL JOINT TO SPARK ADVANCE LEVER
-
3411-45076 NUT, JAM - LINK ROD ADJUSTINGNUT, JAM - LINK ROD ADJUSTING
-
3561940 LINK RODLINK ROD
-
3661939 PIVOT, THREADED, - TRIGGER PLATE TO LINK RODPIVOT, THREADED, - TRIGGER PLATE TO LINK ROD
Все узлы модели:
- BOTTOM COWL AND EXHAUST PLATE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY
- CYLINDER BLOCK AND COIL MOUNTING BRACKET (SERIAL GROUP #3)
- CYLINDER BLOCK AND COIL MOUNTING BRACKET (SERIAL GROUP #5)
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL, IGNITION COIL AND SWITCH BOX
- FUEL PUMP ASSEMBLY AND FUEL LINES
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS PARTS/ACCESSORIES
- SHIFT CONTROL LINKAGE
- STARTER HOUSING
- STARTER MOTOR, RECTIFIER AND WIRING HARNESS
- • THROTTLE CONTROL LINKAGE AND SPARK ADVANCE
- TOP COWL ASSEMBLY
