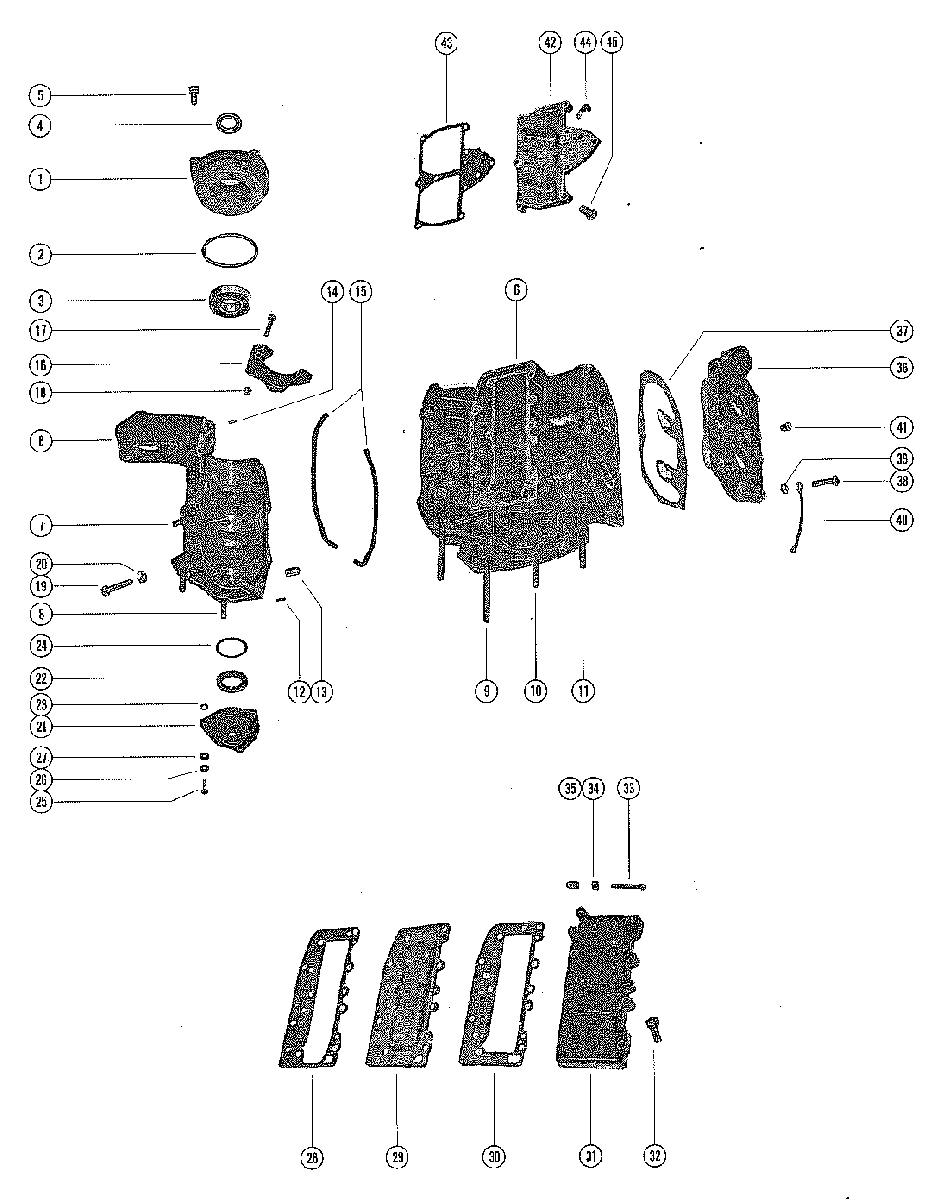

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 402 8002335 THRU 8027439

  • №
    Артикул
    Название
  • 1
    1151-4732A1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 2
    25-47254 "O" RING, UPPER END CAP
    "O" RING, UPPER END CAP
  • 3
    31-62066T BALL BEARING, UPPER END CAP
    BALL BEARING, UPPER END CAP
  • 4
    26-41953 OIL SEAL, UPPER END CAP
    OIL SEAL, UPPER END CAP
  • 5
    10-30225 SCREW, UPPER END CAP MOUNTING (1")
    SCREW, UPPER END CAP MOUNTING (1")
  • 6
    851-5925A2 CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 3476510 AND BELOW
    CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 3476510 AND BELOW
  • 6
    851-5350A7 CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 3476511 THRU 3477009
    CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 3476511 THRU 3477009
  • 6
    851-7940A6 CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
    CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
  • 7
    16-64936 STUD, CARBURETOR MOUNTING (1 3/16")
    STUD, CARBURETOR MOUNTING (1 3/16")
  • 8
    16-33111 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (9/16")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (9/16")
  • 9
    16-8M0034463 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
  • 9
    16-68168 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 11/16")
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 11/16")
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
  • 10
    16-29989 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")
    STARBOARD
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")
    STARBOARD
  • 11
    16-34378 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")
    PORT
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")
    PORT
  • 12
    17-57211 DOWEL PIN, RETAINER TO CYLINDER BLOCK
    DOWEL PIN, RETAINER TO CYLINDER BLOCK
  • 13
    17-23784 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
  • 14
    17-20323 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
    DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
  • 15
    27-55158 GASKET, SEALING - CYLINDER BLOCK
    GASKET, SEALING - CYLINDER BLOCK
  • 16
    62064 BRACKET, STARTER MOTOR
    BRACKET, STARTER MOTOR
  • 17
    10-35213 SCREW, BLOCK BRACKET TO STARTER MOTOR (1 5/8")-ELECTRIC
    SCREW, BLOCK BRACKET TO STARTER MOTOR (1 5/8")-ELECTRIC
  • 17
    10-21339 SCREW, STARTER MOTOR BRACKET TO BLOCK (1 3/8") MANUAL
    SCREW, STARTER MOTOR BRACKET TO BLOCK (1 3/8") MANUAL
  • 18
    11-29250 NUT, STARTER MOTOR BRACKET SCREW - MANUAL
    NUT, STARTER MOTOR BRACKET SCREW - MANUAL
  • 19
    10-78841 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
  • 19
    10-33008 SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/2")
  • 19
    10-69090 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")
  • 20
    11-29250 NUT, CRANKCASE FASTENING SCREW
    NUT, CRANKCASE FASTENING SCREW
  • 21
    1152-4810A1 END CAP ASSEMBLY, LOWER
    UNITED STATES 3476510 AND BELOW
    END CAP ASSEMBLY, LOWER
    UNITED STATES 3476510 AND BELOW
  • 22
    26-41953 OIL SEAL, LOWR END CAP
    UNITED STATES 3476510 AND BELOW
    OIL SEAL, LOWR END CAP
    UNITED STATES 3476510 AND BELOW
  • 23
    25-627021 "O" RING, LOWER END CAP SCREWS
    UNITED STATES 3476510 AND BELOW
    "O" RING, LOWER END CAP SCREWS
    UNITED STATES 3476510 AND BELOW
  • 24
    25-62457 "O" RING, LOWER END CAP
    UNITED STATES 3476510 AND BELOW
    "O" RING, LOWER END CAP
    UNITED STATES 3476510 AND BELOW
  • 25
    10-56500 SCREW, LOWER END CAP TO CYLINDER BLOCK ANC CRANKCASE (1 1/4")
    UNITED STATES 3476510 AND BELOW
    SCREW, LOWER END CAP TO CYLINDER BLOCK ANC CRANKCASE (1 1/4")
    UNITED STATES 3476510 AND BELOW
  • 26
    12-58166 WASHER, RETAINER SCREW
    UNITED STATES 3476510 AND BELOW
    WASHER, RETAINER SCREW
    UNITED STATES 3476510 AND BELOW
  • 27
    26-57847 STAT-O-SEAL, RETAINER SCREW
    UNITED STATES 3476510 AND BELOW
    STAT-O-SEAL, RETAINER SCREW
    UNITED STATES 3476510 AND BELOW
  • 21
    1152-7267A1 END CAP ASSEMBLY, LOWER
    UNITED STATES 3476511 THRU 3477009
    END CAP ASSEMBLY, LOWER
    UNITED STATES 3476511 THRU 3477009
  • 22
    26-41953 OIL SEAL, LOWER END CAP
    UNITED STATES 3476511 THRU 3477009
    OIL SEAL, LOWER END CAP
    UNITED STATES 3476511 THRU 3477009
  • 23
    25-64068 "O" RING, LOWER END CAP SCREW
    UNITED STATES 3476511 THRU 3477009
    "O" RING, LOWER END CAP SCREW
    UNITED STATES 3476511 THRU 3477009
  • 24
    25-823683 "O" RING, LOWER END CAP
    UNITED STATES 3476511 THRU 3477009
    "O" RING, LOWER END CAP
    UNITED STATES 3476511 THRU 3477009
  • 25
    10-63365 SCREW, LOWER END CAP TO CYLINDER BLOCK AND CRANKCASE (1 1/2")
    UNITED STATES 3476511 THRU 3477009
    SCREW, LOWER END CAP TO CYLINDER BLOCK AND CRANKCASE (1 1/2")
    UNITED STATES 3476511 THRU 3477009
  • 28
    27-854891 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 29
    55190 PLATE, DIVIDER - EXHAUST MANIFOLD
    PLATE, DIVIDER - EXHAUST MANIFOLD
  • 30
    27-854882 GASKET, BAFFLE PLATE TO EXHAUST COVER
    GASKET, BAFFLE PLATE TO EXHAUST COVER
  • 31
    551572 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 32
    10-74824 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1 1/4")
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1 1/4")
  • 32
    10-31984 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1 3/8")
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1 3/8")
  • 33
    10-24228 SCREW, ADJUSTIN - EXHAUST COVER (1 7/8")
    SCREW, ADJUSTIN - EXHAUST COVER (1 7/8")
  • 34
    11-20890 NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 35
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 36
    1024-91101 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 37
    27-85490 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 38
    10-56500 SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/4")
    SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/4")
  • 39
    11-20184 NUT, COVER MOUNTING SCREW
    NUT, COVER MOUNTING SCREW
  • 40
    46933A3 GROUND STRAP, POWRHEAD TO BOTTOM COWL
    GROUND STRAP, POWRHEAD TO BOTTOM COWL
  • 41
    22-328022 PLUG, PIPE - CYLINDER BLOCK COVER
    PLUG, PIPE - CYLINDER BLOCK COVER
  • 42
    62303 COVER, TRANSFER PORT
    UNITED STATES 3474577 AND BELOW
    AUSTRALIA 8004329 AND BELOW
    BELGIUM 9005203 AND BELOW
    CANADA 7006600 AND BELOW
    COVER, TRANSFER PORT
    UNITED STATES 3474577 AND BELOW
    AUSTRALIA 8004329 AND BELOW
    BELGIUM 9005203 AND BELOW
    CANADA 7006600 AND BELOW
  • 42
    63970 COVER, TRANSFER PORT
    UNITED STATES 3474578 AND UP
    AUSTRALIA 8004360 AND UP
    BELGIUM 9005204 AND UP
    CANADA 7006601 AND UP
    COVER, TRANSFER PORT
    UNITED STATES 3474578 AND UP
    AUSTRALIA 8004360 AND UP
    BELGIUM 9005204 AND UP
    CANADA 7006601 AND UP
  • 43
    27-552791 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 44
    54-54457 "J" CLIP, COIL HARNESS
    "J" CLIP, COIL HARNESS
  • 45
    10-76630 SCREWS, TANSFER PORT COVER MOUNTING (1")
    SCREWS, TANSFER PORT COVER MOUNTING (1")
