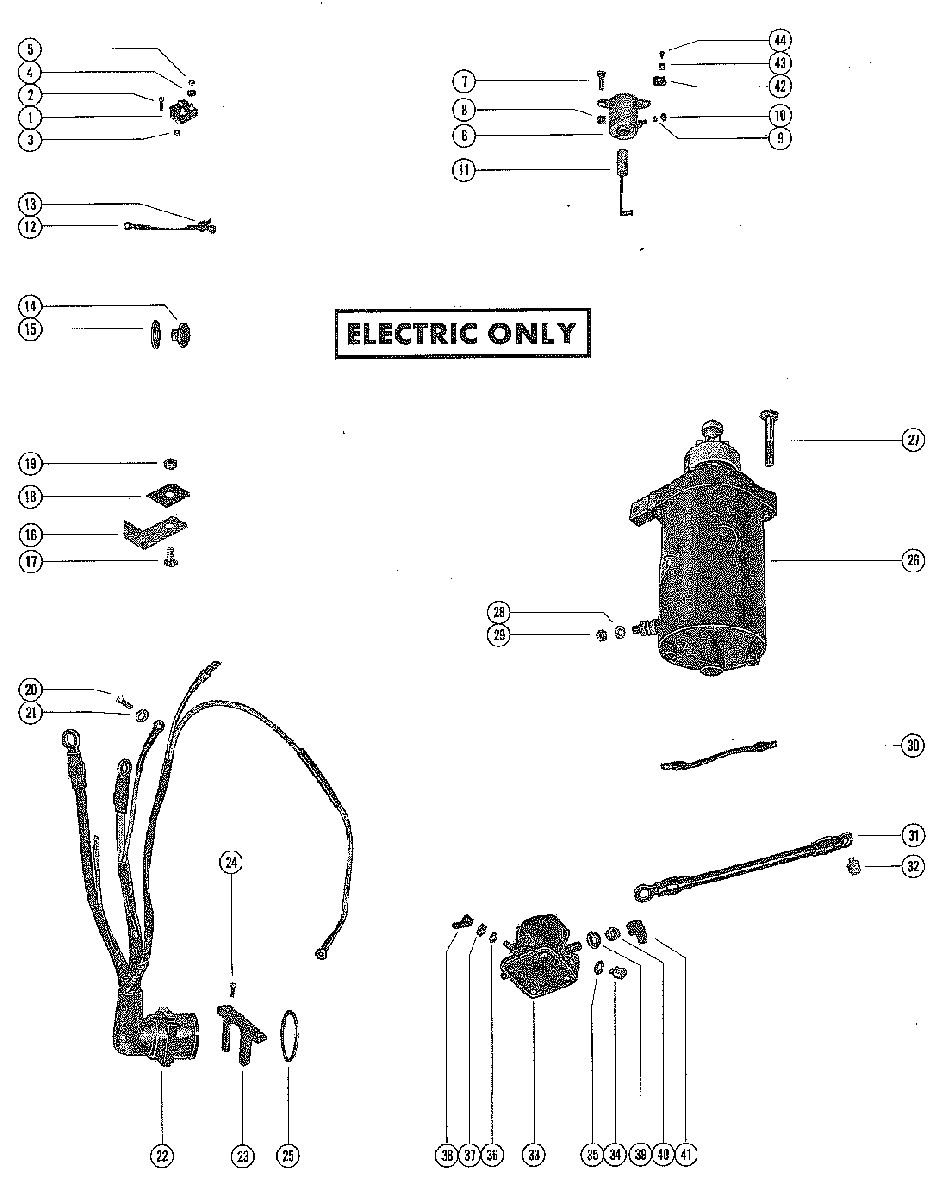

STARTER MOTOR, RECTIFIER AND WIRING HARNESS для Mercury - 402 8002335 THRU 8027439
-
№АртикулНазвание
-
18M0058226 RECTIFIER ASSEMBLY
UNITED STATES 3474577 AND BELOW
AUSTRALIA 8004329 AND BELOW
BELGIUM 9005203 AND BELOW
CANADA 7006600 AND BELOWRECTIFIER ASSEMBLY
UNITED STATES 3474577 AND BELOW
AUSTRALIA 8004329 AND BELOW
BELGIUM 9005203 AND BELOW
CANADA 7006600 AND BELOW -
18M0058226 RECTIFIER ASSEMBLY
UNITED STATES 3474578 AND UP
AUSTRALIA 8004360 AND UP
BELGIUM 9005204 AND UP
CANADA 7006601 AND UPRECTIFIER ASSEMBLY
UNITED STATES 3474578 AND UP
AUSTRALIA 8004360 AND UP
BELGIUM 9005204 AND UP
CANADA 7006601 AND UP -
210-25764 SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (1/2")SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (1/2")
-
311-27164 NUT, RECTIFIER FASTENING SCREWNUT, RECTIFIER FASTENING SCREW
-
423-62769 SPACER, RECTIFIER TERMINAL - BATTERY LEADSPACER, RECTIFIER TERMINAL - BATTERY LEAD
-
511-45076 NUT, RECTIFIER TERMINAL (10-32)NUT, RECTIFIER TERMINAL (10-32)
-
689-889274 CHOKE SOLENIOD ASSEMBLYCHOKE SOLENIOD ASSEMBLY
-
710-26065 SCREW, CHOKE SOLENOID TO FRONT SUPPORT BRACKET (1")SCREW, CHOKE SOLENOID TO FRONT SUPPORT BRACKET (1")
-
811-29250 NUT, SOLENOID SCREWNUT, SOLENOID SCREW
-
913-26993 LOCKWASHER, CHOKE SOLENOID TERMINALLOCKWASHER, CHOKE SOLENOID TERMINAL
-
1011-45076 NUT, CHOKE SOLENOID TERMINALNUT, CHOKE SOLENOID TERMINAL
-
1189008A2 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
1284-61393A1 LEAD ASSEMBLY, RECTIFIER TO STARTER SOLENOID (4 7/8")LEAD ASSEMBLY, RECTIFIER TO STARTER SOLENOID (4 7/8")
-
1385-62453 BOOT, LEAD WIREBOOT, LEAD WIRE
-
1419-35827 PLUG, BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLYPLUG, BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLY -
1511-30428 FASTENER, PLUG TO BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLYFASTENER, PLUG TO BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLY -
1634228 SUPPORT, EXTERNAL WIRING HARNESSSUPPORT, EXTERNAL WIRING HARNESS
-
1724-67197 SCREW, SUPPORT TO BOTTOM COWL (5/8")SCREW, SUPPORT TO BOTTOM COWL (5/8")
-
1852907 INSULATOR, SUPPORT TO BOTTOM COWLINSULATOR, SUPPORT TO BOTTOM COWL
-
1911-20184 NUT, SUPPORT FASTENING SCREWNUT, SUPPORT FASTENING SCREW
-
2010-98256 SCREW, WIRING HARNESS GROUND TO BOTTOM COWL (1/2")SCREW, WIRING HARNESS GROUND TO BOTTOM COWL (1/2")
-
2113-24669 LOCKWASHER, WIRING HARNESS GROUND SCREWLOCKWASHER, WIRING HARNESS GROUND SCREW
-
2284-62534 WIRING HARNESS (INTERNAL)
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWWIRING HARNESS (INTERNAL)
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
2284-66297A1 WIRING HARNESS (INTERNAL)
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPWIRING HARNESS (INTERNAL)
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
2354-76368 CLAMP, WIRING HARNESS ATTACHINGCLAMP, WIRING HARNESS ATTACHING
-
2410-61802 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
-
2524-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
2650-55601A2 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2710-35213 SCREW, STARTER MOTOR TO CRANKCASE (1 5/8")SCREW, STARTER MOTOR TO CRANKCASE (1 5/8")
-
2813-26992 LOCKWASHER, CABLE TO STARTER MOTOR NUTLOCKWASHER, CABLE TO STARTER MOTOR NUT
-
2911-20890 NUT, CABLE TO STARTER MOTORNUT, CABLE TO STARTER MOTOR
-
3084-93389A3 CABLE, STARTER MOTOR TO STARTER SOLENOIDCABLE, STARTER MOTOR TO STARTER SOLENOID
-
3184-93388A14 GROUND WIRE, STARTER MOTOR TO FRONT SUPPORT BRACKETGROUND WIRE, STARTER MOTOR TO FRONT SUPPORT BRACKET
-
3210-69035 SCREW, GROUND WIRE TO STARTER MOTOR (5/8")SCREW, GROUND WIRE TO STARTER MOTOR (5/8")
-
3325661T1 SOLENOID, STARTERSOLENOID, STARTER
-
3410-69028 SCREW, STARTER SOLENOID TO FRONT SUPPORT BRACKET (3/8")SCREW, STARTER SOLENOID TO FRONT SUPPORT BRACKET (3/8")
-
3513-26992 WASHER, STARTER SOLENOID SCREWWASHER, STARTER SOLENOID SCREW
-
3613-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
3711-68219 NUT, STARTER SOLENOID TERMINAL (#10)NUT, STARTER SOLENOID TERMINAL (#10)
-
3838938 BOOT, RUBBER - STARTER SOLENOID TERMINAL (SMALL)BOOT, RUBBER - STARTER SOLENOID TERMINAL (SMALL)
-
3913-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16)LOCKWASHER, STARTER SOLENOID TERMINAL (5/16)
-
4011-22053 NUT, STARTER SOLENOID TERMINAL (5/16)NUT, STARTER SOLENOID TERMINAL (5/16)
-
4146265 BOOT, RUBBER- STARTER SOLENOID TERMINAL (LARGE)BOOT, RUBBER- STARTER SOLENOID TERMINAL (LARGE)
-
4254-24871 CLAMP, CHOKE SOLENOID LEAD WIRECLAMP, CHOKE SOLENOID LEAD WIRE
-
438M0084613 "C" WASHER, LEAD WIRE CLAMP"C" WASHER, LEAD WIRE CLAMP
-
4410-62568 SCREW, CLAMP ATTCHING (3/8")SCREW, CLAMP ATTCHING (3/8")
