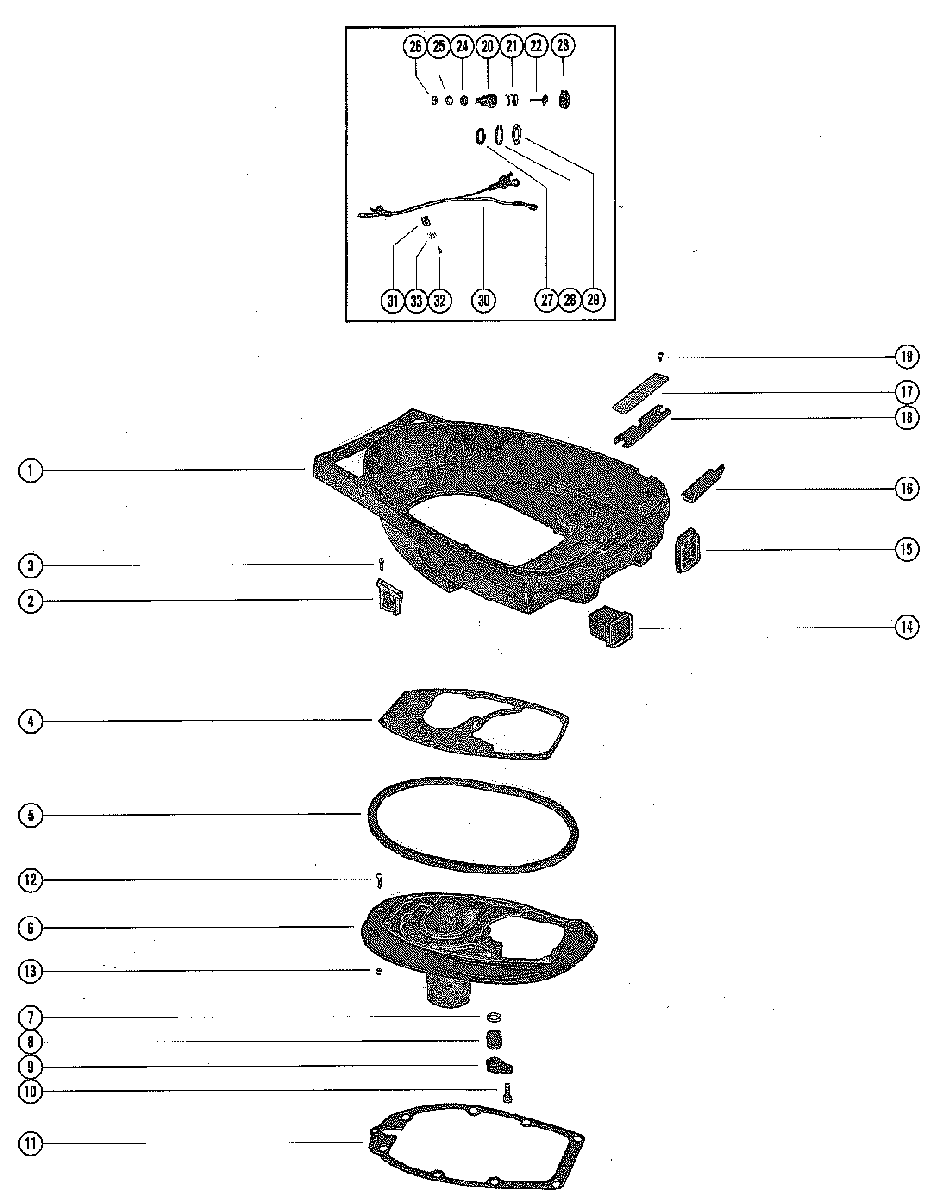

BOTTOM COWL AND EXHAUST PLATE ASSEMBLY для Mercury - 402 8002335 THRU 8027439
-
№АртикулНазвание
-
12139-3882 BOTTOM COWL
UNITED STATES 3344829 AND BELOWBOTTOM COWL
UNITED STATES 3344829 AND BELOW -
12139-5351A2 BOTOTM COWL
UNITED STATES 3344830 THRU 3859434
AUSTRALIA 8002335 THRU 8016689
BELGIUM 3339688 THRU 9051458
CANADA 3340783 THRU 7032137BOTOTM COWL
UNITED STATES 3344830 THRU 3859434
AUSTRALIA 8002335 THRU 8016689
BELGIUM 3339688 THRU 9051458
CANADA 3340783 THRU 7032137 -
12139-5351A2 BOTTOM COWL
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPBOTTOM COWL
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
248472 COVER, PLUG - BOTTOM COWL HARNESS HOLE - MANUALCOVER, PLUG - BOTTOM COWL HARNESS HOLE - MANUAL
-
310-61802 SCREW, PLUG COVER TO BOTTOM COWL (7/8") - MANUALSCREW, PLUG COVER TO BOTTOM COWL (7/8") - MANUAL
-
427-628601 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
539622 SEAL, RUBBER - EXHAUST PLATE TO BOTTOM COWLSEAL, RUBBER - EXHAUST PLATE TO BOTTOM COWL
-
642818A1 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
712-38453 WASHER, NYLON - WATER OUTLET TUBEWASHER, NYLON - WATER OUTLET TUBE
-
826-38452 SEAL, RUBBER - WATER OUTLET TUBESEAL, RUBBER - WATER OUTLET TUBE
-
938500 RETAINER, WATER OUTLET TUBE SEALRETAINER, WATER OUTLET TUBE SEAL
-
1010-69069 SCREW, RETAINER TO EXHAUST PLATE (3/4")SCREW, RETAINER TO EXHAUST PLATE (3/4")
-
1127-385011 GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
-
1210-56500 SCREW, EXHAUST PLATE TO BOTTOM COWL (1 1/4")
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWSCREW, EXHAUST PLATE TO BOTTOM COWL (1 1/4")
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
1311-20184 NUT, EXHAUST PLATE SCREW
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWNUT, EXHAUST PLATE SCREW
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
1437637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
1539616 BOOT, CONTROL CABLE - BOTTOM COWLBOOT, CONTROL CABLE - BOTTOM COWL
-
1639630 CUSHION, RUBBER - BOTTOM COWLCUSHION, RUBBER - BOTTOM COWL
-
1739555 COVER PLATE ASSEMBLYCOVER PLATE ASSEMBLY
-
1839556 PAD, SOUND - COVER PLATEPAD, SOUND - COVER PLATE
-
1910-8M0113176 SCREW, COVER PLATE TO BOTTOM COWLSCREW, COVER PLATE TO BOTTOM COWL
-
2059065A4 STOP SWITCH ASSEMBLY
MANUAL ONLYSTOP SWITCH ASSEMBLY
MANUAL ONLY -
2124-60239 SPRING, STOP SWITCH
MANUAL ONLYSPRING, STOP SWITCH
MANUAL ONLY -
2287-61577A1 CONTACT ASSEBMLY, STOP SWITCH
MANUAL ONLYCONTACT ASSEBMLY, STOP SWITCH
MANUAL ONLY -
2338950A1 COVER ASSEMBLY, STOP SWITCH
MANUAL ONLYCOVER ASSEMBLY, STOP SWITCH
MANUAL ONLY -
2412-59061 WASHER, STOP SWITCH
MANUAL ONLYWASHER, STOP SWITCH
MANUAL ONLY -
2513-26996 LOCKWASHER, STOP SWITCH
MANUAL ONLYLOCKWASHER, STOP SWITCH
MANUAL ONLY -
2611-68219 NUT, GROUND LEAD TO STOP SWITCH
MANUAL ONLYNUT, GROUND LEAD TO STOP SWITCH
MANUAL ONLY -
2712-64275 WASHER, CONNERCTOR BASE
MANUAL ONLY UNITED STATES 3474577 AND BELOW
AUSTRALIA 8004329 AND BELOW
BELGIUM 9005203 AND BELOW
CANADA 7006600 AND BELOWWASHER, CONNERCTOR BASE
MANUAL ONLY UNITED STATES 3474577 AND BELOW
AUSTRALIA 8004329 AND BELOW
BELGIUM 9005203 AND BELOW
CANADA 7006600 AND BELOW -
2712-64275 WASHER, CONNECTOR BASE
MANUAL ONLY UNITED STATES 3474578 AND UP
AUSTRALIA 8004360 AND UP
BELGIUM 9005204 AND UP
CANADA 7006601 AND UPWASHER, CONNECTOR BASE
MANUAL ONLY UNITED STATES 3474578 AND UP
AUSTRALIA 8004360 AND UP
BELGIUM 9005204 AND UP
CANADA 7006601 AND UP -
2813-21972 LOCKWASHER, CONNECTOR BASE
MANUAL ONLYLOCKWASHER, CONNECTOR BASE
MANUAL ONLY -
2911-21971 NUT, CONNECTOR BASE TO BOTTOM COWL
MANUAL ONLYNUT, CONNECTOR BASE TO BOTTOM COWL
MANUAL ONLY -
3084-63086A1 WIRE ASSEMBLY, STOP SWITCH
MANUAL ONLY UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWWIRE ASSEMBLY, STOP SWITCH
MANUAL ONLY UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
3084-63086A2 WIRE ASSEMBLY, STOP SWITCH
MANUAL ONLY UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPWIRE ASSEMBLY, STOP SWITCH
MANUAL ONLY UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
3154-26550 CLAMP, STOP SWITCH LEAD
MANUAL ONLYCLAMP, STOP SWITCH LEAD
MANUAL ONLY -
3210-62568 SCREW, STOP SWITCH LEAD CLAMP
MANUAL ONLYSCREW, STOP SWITCH LEAD CLAMP
MANUAL ONLY -
338M0084613 "C" WASHER, STOP SWITCH LEAD SCREW
MANUAL ONLY"C" WASHER, STOP SWITCH LEAD SCREW
MANUAL ONLY
