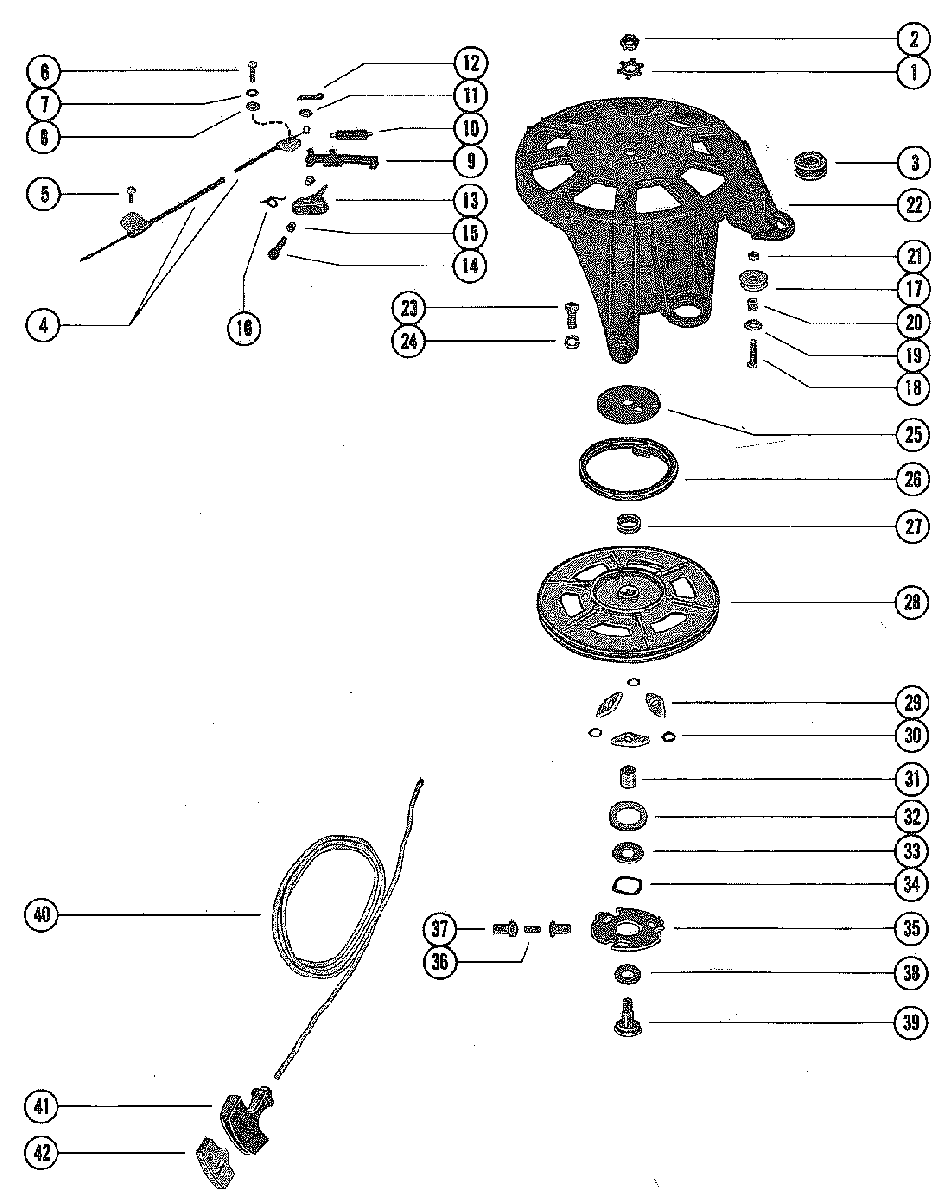

STARTER HOUSING для Mercury - 402 8002335 THRU 8027439
-
№АртикулНазвание
-
114-61004 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
211-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
325-39597 GROMMET, STARTER HOUSINGGROMMET, STARTER HOUSING
-
470970 CABLE ASSEMBLY, INTERLOCK
MANUALCABLE ASSEMBLY, INTERLOCK
MANUAL -
510-32228 SCREW, INTERLOCK CABLE TO EXHAUST PLATE (5/8")
MANUALSCREW, INTERLOCK CABLE TO EXHAUST PLATE (5/8")
MANUAL -
610-69022 SCREW, INTERLOCK CABLE TO STARTER HOUSING (1/2")
MANUALSCREW, INTERLOCK CABLE TO STARTER HOUSING (1/2")
MANUAL -
713-27660 LOCKWASHER, INTERLOCK CABLE SCREW
MANUALLOCKWASHER, INTERLOCK CABLE SCREW
MANUAL -
812-26013 WASHER, INTERLOCK CABLE SCREW
MANUALWASHER, INTERLOCK CABLE SCREW
MANUAL -
957236 CAM, SLIDING - STARTER HOUSING
MANUALCAM, SLIDING - STARTER HOUSING
MANUAL -
1024-70086 SPRING, SLIDING CAM
MANUALSPRING, SLIDING CAM
MANUAL -
1112-37998 WASHER, INTERLOCK CABLE
MANUALWASHER, INTERLOCK CABLE
MANUAL -
1218-26953 COTTER PIN, INTERLOCK CABLE TO SLIDING CAM
MANUALCOTTER PIN, INTERLOCK CABLE TO SLIDING CAM
MANUAL -
1365757A1 TOGGLE, STARTER INTERLOCK
MANUAL UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWTOGGLE, STARTER INTERLOCK
MANUAL UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
1365757A1 TOGGLE ASSEMBLY, STARTER INTERLOCK
MANUAL UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPTOGGLE ASSEMBLY, STARTER INTERLOCK
MANUAL UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
1410-57249 SCREW, TOGGLE TO STARTER HOUSING
MANUALSCREW, TOGGLE TO STARTER HOUSING
MANUAL -
1523-26856 BUSHING, TOGGLE SCREW
MANUALBUSHING, TOGGLE SCREW
MANUAL -
1624-57279 SPRING, TOGGLE SCREW
MANUALSPRING, TOGGLE SCREW
MANUAL -
1755860 PULLEY, STARTER SCREWPULLEY, STARTER SCREW
-
1810-45210 SCREW, PULLEY TO STARTER HOUSING (1 1/4")SCREW, PULLEY TO STARTER HOUSING (1 1/4")
-
1912-22887 WASHER, PULLEY SCREWWASHER, PULLEY SCREW
-
2023-309772 SPACER, PULLEY SCREWSPACER, PULLEY SCREW
-
2111-24656 NUT, PULLEY SCREWNUT, PULLEY SCREW
-
2276079A8 HOUSING, STARTERHOUSING, STARTER
-
2310-37562 SCREW, STARTER HOUSING TO CRANKCASE (1")SCREW, STARTER HOUSING TO CRANKCASE (1")
-
2413-26993 LOCKWASHER, STARTER HOUSING SCREWLOCKWASHER, STARTER HOUSING SCREW
-
2561002 RETAINER, STARTER REWINDRETAINER, STARTER REWIND
-
2624-39502T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
2723-63100 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2876053A1 STARTER SHEAVE ASSEMBLY
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWSTARTER SHEAVE ASSEMBLY
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
2876053A1 STARTER SHEAVE ASSEMBLY
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPSTARTER SHEAVE ASSEMBLY
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
2930596 PAWL, STARTERPAWL, STARTER
-
3013-36206 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
3123-63061 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
3239840 RETAINER, WAVE WASHERRETAINER, WAVE WASHER
-
3312-57837 WASHER, WAVE WASHER RETAINERWASHER, WAVE WASHER RETAINER
-
3413-20160 WASHER, WAVE - RETAINER TENSIONWASHER, WAVE - RETAINER TENSION
-
3566845 PLATE, RETAINER - STARTER PAWL
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWPLATE, RETAINER - STARTER PAWL
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
3624-26068 SPRING, RETAINER PLATE TO STARTER SHEAVE
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWSPRING, RETAINER PLATE TO STARTER SHEAVE
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
3566845 PLATE, RETAINER - STARTER PAWL
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPPLATE, RETAINER - STARTER PAWL
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
3624-66853 SPRING, RETAINER PLATE TO STARTER SHEAVE
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPSPRING, RETAINER PLATE TO STARTER SHEAVE
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
3766848 RETAINER, SPRINGRETAINER, SPRING
-
3812-57860 WASHER, SHEAVE SHAFTWASHER, SHEAVE SHAFT
-
3961003 SHAFT, SHEAVESHAFT, SHEAVE
-
4050-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
4130782 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
4279470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
