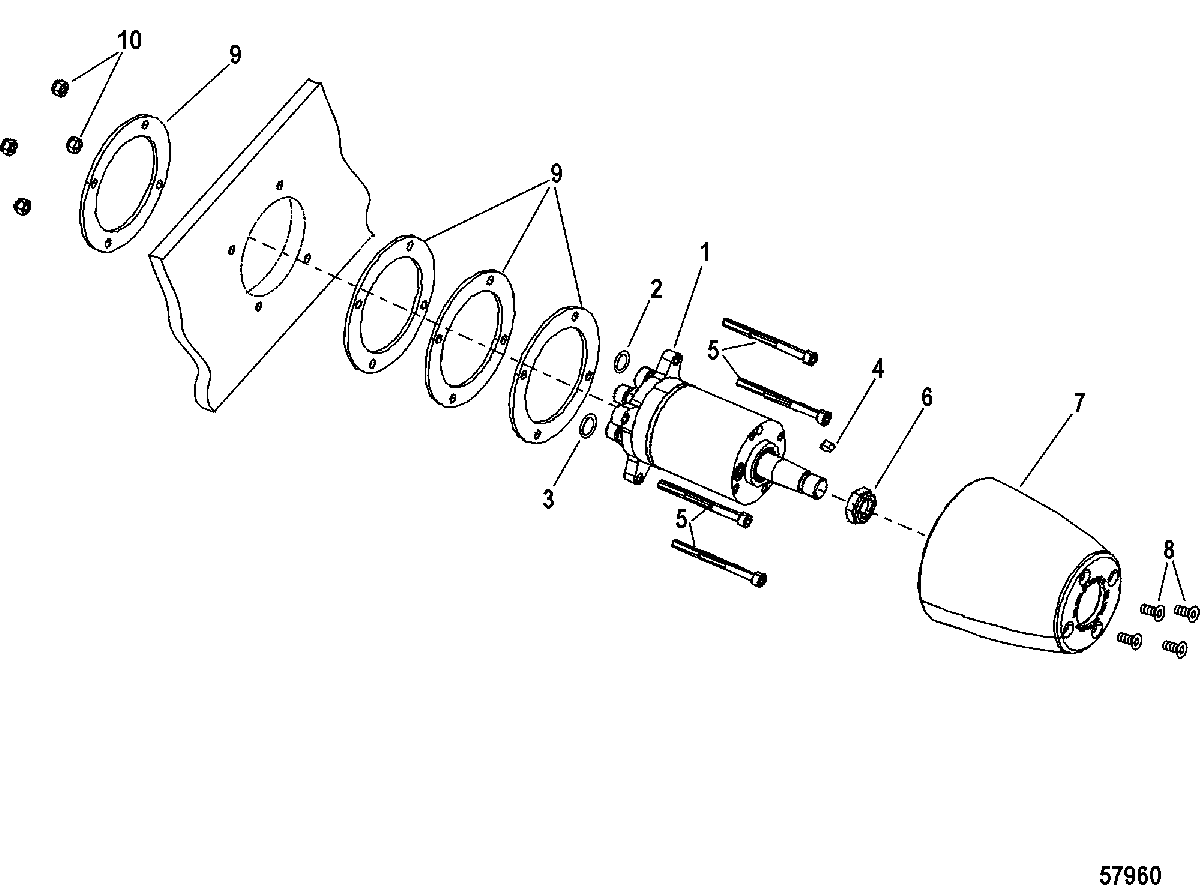

Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02) для Mercury - 400 VERADO (4-Stroke)(6 CYL.) 2B141124 & Up
-
№АртикулНазвание
-
-892557A02 STEERING HELM KIT, Standard (32 cc)STEERING HELM KIT, Standard (32 cc)
-
-8M0137445 STEERING HELM KIT, Standard (40 cc)STEERING HELM KIT, Standard (40 cc)
-
-8M0137449 STEERING HELM KIT, Standard (50 cc)STEERING HELM KIT, Standard (50 cc)
-
18M0137438 HELM, Standard (32 cc)HELM, Standard (32 cc)
-
18M0137444 HELM, Standard (40 cc)HELM, Standard (40 cc)
-
18M0137448 HELM, Standard (50 cc)HELM, Standard (50 cc)
-
225-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
325-48171 O-RING, (.364. x .070)O-RING, (.364. x .070)
-
428-893394 KEY, With Lock Tab (6.35 mm)KEY, With Lock Tab (6.35 mm)
-
510-4008875 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
510-4008850 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
611-826709121 NUT, (.625-18) Stainless SteelNUT, (.625-18) Stainless Steel
-
7892328T COVER, HelmCOVER, Helm
-
810-896842 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
9892327 PLATE, Helm Backing
(892557A02)PLATE, Helm Backing
(892557A02) -
9892327 PLATE, Helm Backing
(892380A02)PLATE, Helm Backing
(892380A02) -
9892327 PLATE, Helm Backing
(892558A02)PLATE, Helm Backing
(892558A02) -
1011-401196 NUT, (M6)NUT, (M6)
