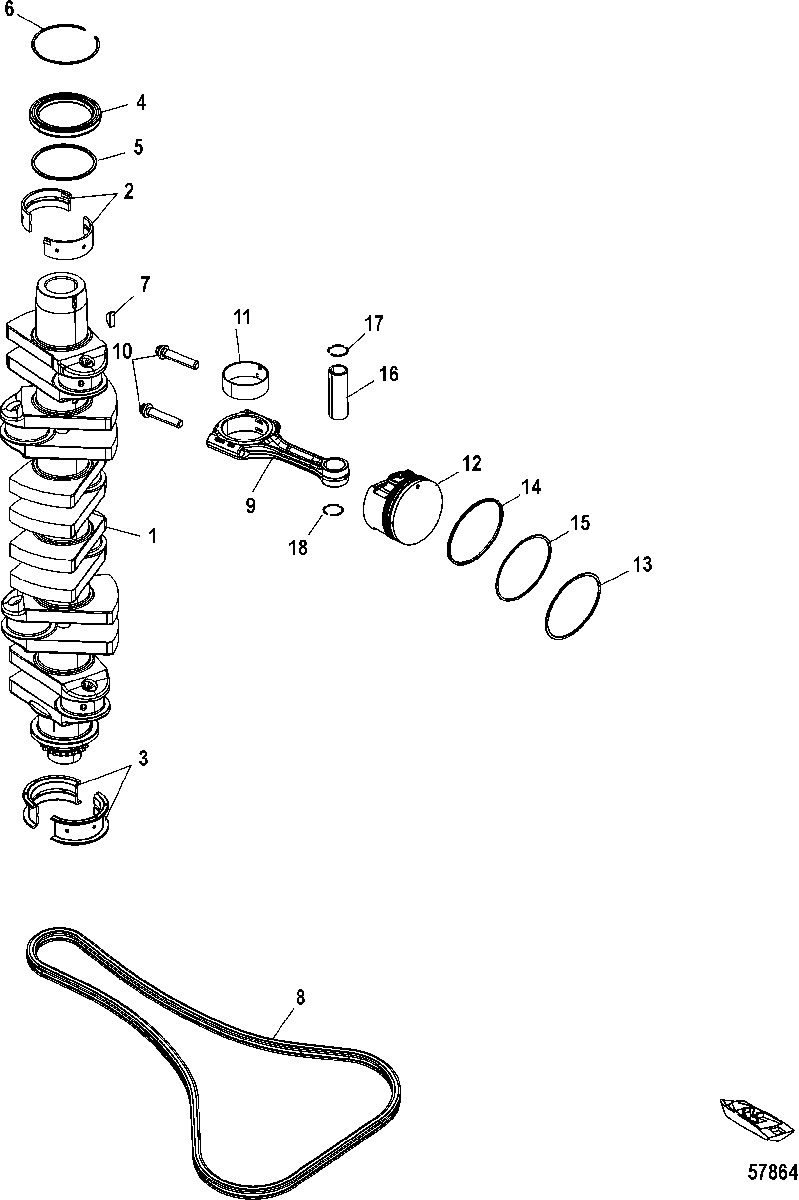

Crankshaft, Pistons and Connecting Rods для Mercury - 400 VERADO (4-Stroke)(6 CYL.) 2B141124 & Up

  • №
    Артикул
    Название
  • 1
    400-891644A04 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    23-897498T05 BEARING, Main (Green)
    BEARING, Main (Green)
  • 2
    23-897498T06 BEARING, Main (Navy Blue)
    BEARING, Main (Navy Blue)
  • 2
    23-897498T07 BEARING, Main (White)
    BEARING, Main (White)
  • 2
    23-897498T08 BEARING, Main (Orange)
    BEARING, Main (Orange)
  • 3
    23-8M0117003 BEARING, Thrust - Green, Crankshaft-Lower
    BEARING, Thrust - Green, Crankshaft-Lower
  • 3
    23-8M0117001 BEARING, Thrust - Navy Blue, Crankshaft-Lower
    BEARING, Thrust - Navy Blue, Crankshaft-Lower
  • 3
    23-8M0117002 BEARING, Thrust - White, Crankshaft-Lower
    BEARING, Thrust - White, Crankshaft-Lower
  • 3
    23-8M0117004 BEARING, Thrust - Orange, Crankshaft-Lower
    BEARING, Thrust - Orange, Crankshaft-Lower
  • 4
    26-8M0032912 SEAL, Top Main Bearing
    SEAL, Top Main Bearing
  • 5
    23-896883 SPACER
    SPACER
  • 6
    53-896882 RING, Retaining
    RING, Retaining
  • 7
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 8
    8M0103398 CHAIN, Roller Cam Drive
    CHAIN, Roller Cam Drive
  • 9
    662-8M0103285 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 10
    10-884441 BOLT
    BOLT
  • 11
    23-892005A01 BEARING, Connecting Rod - Blue
    BEARING, Connecting Rod - Blue
  • 11
    23-892005A02 BEARING, Connecting Rod - White
    BEARING, Connecting Rod - White
  • 11
    23-892005A03 BEARING, Connecting Rod - Orange
    BEARING, Connecting Rod - Orange
  • 12
    700-8M0104286 PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 13
    39-881180A02 RING SET, Piston
    RING SET, Piston
  • 14
    NSS NOT SOLD SEPARATE, Piston Ring-Oil
    NOT SOLD SEPARATE, Piston Ring-Oil
  • 15
    NSS NOT SOLD SEPARATE, Piston Ring-2nd
    NOT SOLD SEPARATE, Piston Ring-2nd
  • 16
    NSS NOT SOLD SEPARATE, Piston Pin
    NOT SOLD SEPARATE, Piston Pin
  • 17
    40-896594 CIRCLIP
    CIRCLIP
  • -
    61-896966A06 LONG BLOCK ASSEMBLY
    LONG BLOCK ASSEMBLY
