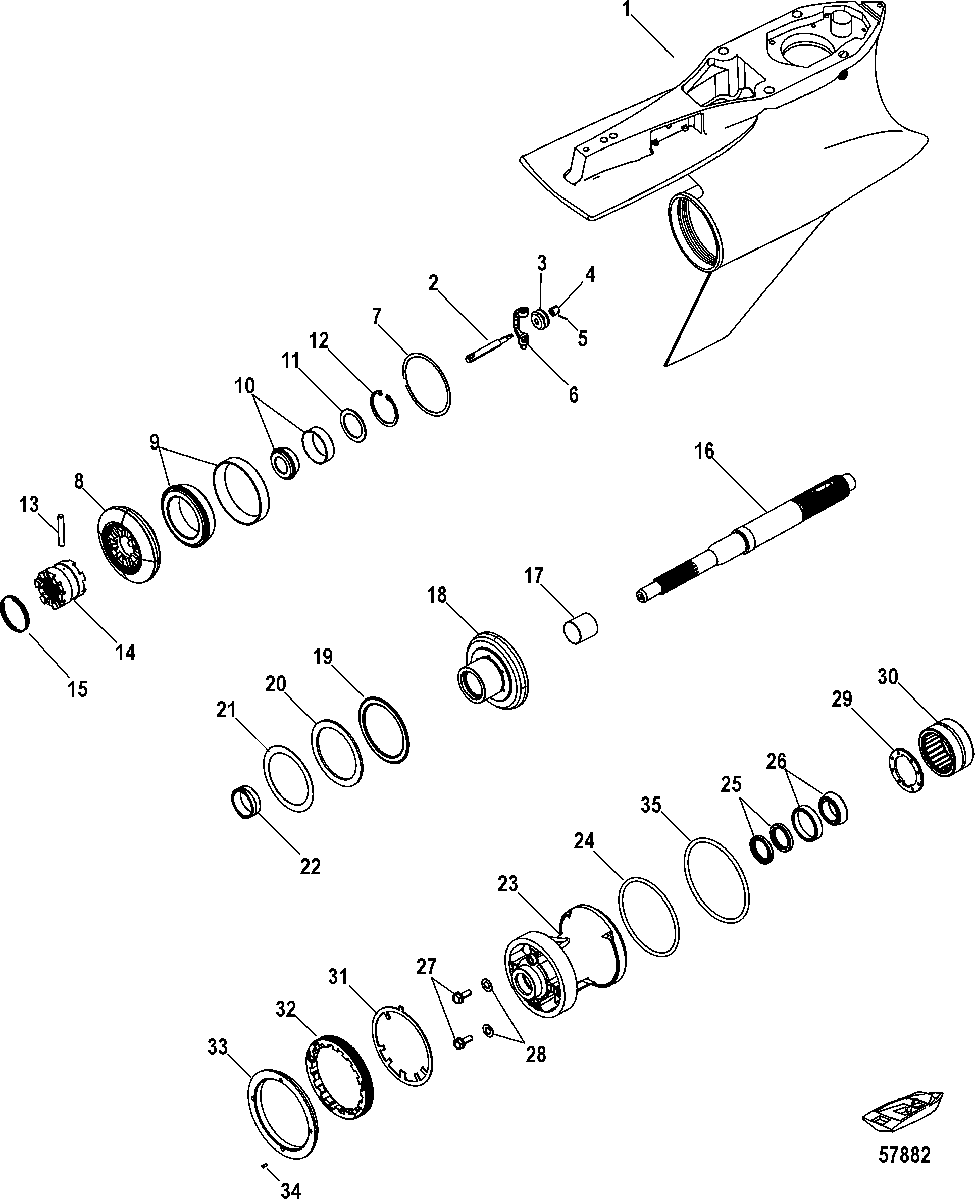

Gear Housing,, Prop Shaft-Standard Rot, 5.44 HD Sportmaster для Mercury - 400 VERADO (4-Stroke)(6 CYL.) 2B141124 & Up

  • №
    Артикул
    Название
  • -
    1600-8M0102783 GEAR HOUSING ASSEMBLY, Complete (Long)(1.75:1) Straight Skeg
    GEAR HOUSING ASSEMBLY, Complete (Long)(1.75:1) Straight Skeg
  • -
    1600-8M0102784 GEAR HOUSING ASSEMBLY, Complete (X-Long) (1.75:1) Straight Skeg
    GEAR HOUSING ASSEMBLY, Complete (X-Long) (1.75:1) Straight Skeg
  • -
    1600-8M0102785 GEAR HOUSING ASSEMBLY, Complete (XX-Long) (1.75:1) Straight Skeg
    GEAR HOUSING ASSEMBLY, Complete (XX-Long) (1.75:1) Straight Skeg
  • -
    1600-8M0137078 GEAR HOUSING ASSEMBLY, Complete (Long) (1.75:1) Cambered Skeg
    GEAR HOUSING ASSEMBLY, Complete (Long) (1.75:1) Cambered Skeg
  • -
    1600-8M0137079 GEAR HOUSING ASSEMBLY, Complete (X-Long) (1.75:1) Cambered Skeg
    GEAR HOUSING ASSEMBLY, Complete (X-Long) (1.75:1) Cambered Skeg
  • -
    1600-8M0137080 GEAR HOUSING ASSEMBLY, Complete (XX-Long) (1.75:1) Cambered Skeg
    GEAR HOUSING ASSEMBLY, Complete (XX-Long) (1.75:1) Cambered Skeg
  • 1
    1600-8M0102795 GEAR HOUSING ASSEMBLY, Basic, Standard Straight Skeg
    GEAR HOUSING ASSEMBLY, Basic, Standard Straight Skeg
  • 1
    1600-8M0137073 GEAR HOUSING ASSEMBLY, Basic, Standard Cambered Skeg
    GEAR HOUSING ASSEMBLY, Basic, Standard Cambered Skeg
  • 2
    8M0053114 SPOOL ASSEMBLY
    SPOOL ASSEMBLY
  • 3
    NSS NOT SOLD SEPARATE, SPOOL
    NOT SOLD SEPARATE, SPOOL
  • 4
    NSS NOT SOLD SEPARATE, SLEEVE
    NOT SOLD SEPARATE, SLEEVE
  • 5
    18-469501 COTTER PIN
    COTTER PIN
  • 6
    8M0046215 CRANK, Shifter, 1/4 Pivot Pin
    CRANK, Shifter, 1/4 Pivot Pin
  • 7
    15-8M0063270 SHIM SET
    SHIM SET
  • 8
    43-8M0078258 GEAR SET, 12/21(1.75:1), Forward
    GEAR SET, 12/21(1.75:1), Forward
  • 9
    31-884323T01 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 10
    31-884325T01 BEARING ASSEMBLY, Roller-Tappered
    BEARING ASSEMBLY, Roller-Tappered
  • 11
    12-8M0053823 THRUST WASHER
    THRUST WASHER
  • 12
    53-8M0051043 RETAINING RING
    RETAINING RING
  • 13
    17-8M0045493 PIN
    PIN
  • 14
    52-8M0142871 CLUTCH
    CLUTCH
  • 15
    24-8M0050575 SPRING
    SPRING
  • 16
    44-8M0142764 PROPELLER SHAFT, 1.25 Inch
    1.75:1 Ratio
    PROPELLER SHAFT, 1.25 Inch
    1.75:1 Ratio
  • 17
    23-8M0064306 SPACER
    SPACER
  • 18
    43-8M0053124 GEAR KIT, Reverse
    1.75:1 Ratio
    GEAR KIT, Reverse
    1.75:1 Ratio
  • 19
    31-8M0050692 BEARING
    BEARING
  • 20
    12-8M0050688 WASHER
    WASHER
  • 21
    15-8M0053116 SHIM SET
    SHIM SET
  • 22
    8M0053183 ADAPTOR
    ADAPTOR
  • 23
    8M0117238 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 24
    25-8M0000190 O-RING, (4.475 x .210)
    O-RING, (4.475 x .210)
  • 25
    26-888483 SEAL, Oil
    SEAL, Oil
  • 26
    31-884330T01 BEARING ASSEMBLY, Tapered
    BEARING ASSEMBLY, Tapered
  • 27
    10-8M0071653 SCREW, Special
    SCREW, Special
  • 28
    26-830749 SEAL
    SEAL
  • 29
    53-8M0056639 RING, Retainer
    RING, Retainer
  • 30
    31-8M0050704 BEARING, Needle
    BEARING, Needle
  • 31
    14-8M0108527 TAB WASHER
    TAB WASHER
  • 32
    11-8M0111653 NUT, Retainer
    NUT, Retainer
  • 33
    8M0050726 COVER KIT
    COVER KIT
  • 34
    10-8M0036819 SET SCREW, (10-32)
    SET SCREW, (10-32)
  • 35
    12-8M0046569 RING, Thrust
    RING, Thrust
