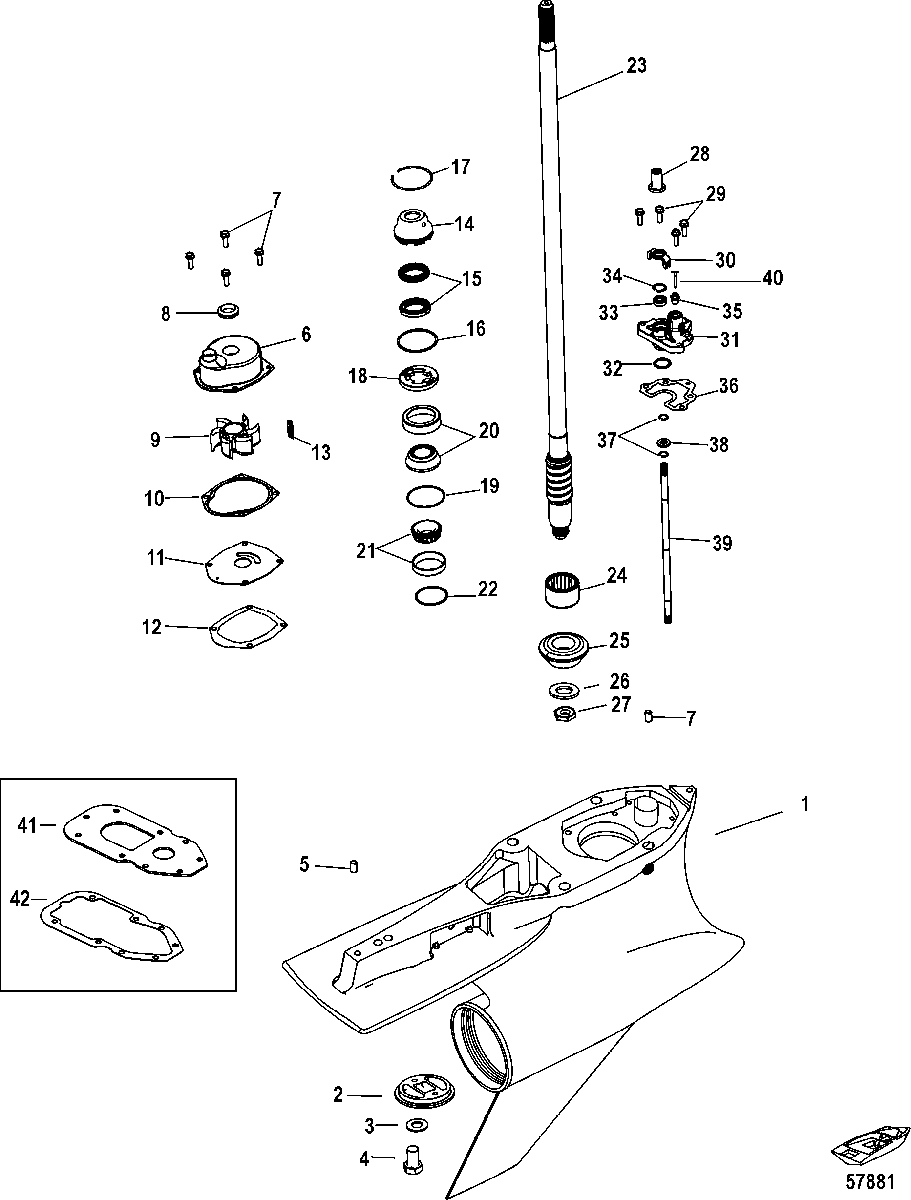

Gear Housing,, Driveshaft, 5.44 HD Sportmaster для Mercury - 400 VERADO (4-Stroke)(6 CYL.) 2B141124 & Up

  • №
    Артикул
    Название
  • -
    1600-8M0102783 GEAR HOUSING ASSEMBLY, Complete (Standard Long) (1.75:1)
    GEAR HOUSING ASSEMBLY, Complete (Standard Long) (1.75:1)
  • -
    1600-8M0102784 GEAR HOUSING ASSEMBLY, Complete (Standard X-Long) (1.75:1)
    GEAR HOUSING ASSEMBLY, Complete (Standard X-Long) (1.75:1)
  • -
    1600-8M0102785 GEAR HOUSING ASSEMBLY, Complete (Standard XX-Long) (1.75:1)
    GEAR HOUSING ASSEMBLY, Complete (Standard XX-Long) (1.75:1)
  • -
    1600-8M0102786 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation Long)(1.75:1)
    GEAR HOUSING ASSEMBLY, Complete (Counter Rotation Long)(1.75:1)
  • -
    1600-8M0102787 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation X-Long) (1.75:1)
    GEAR HOUSING ASSEMBLY, Complete (Counter Rotation X-Long) (1.75:1)
  • -
    1600-8M0102788 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation XX-Long) (1.75:1)
    GEAR HOUSING ASSEMBLY, Complete (Counter Rotation XX-Long) (1.75:1)
  • -
    1600-8M0137078 GEAR HOUSING ASSEMBLY, Complete (Standard Long) (1.75:1) Cambered Skeg
    GEAR HOUSING ASSEMBLY, Complete (Standard Long) (1.75:1) Cambered Skeg
  • -
    1600-8M0137079 GEAR HOUSING ASSEMBLY, Complete (Standard X-Long) (1.75:1) Cambered Skeg
    GEAR HOUSING ASSEMBLY, Complete (Standard X-Long) (1.75:1) Cambered Skeg
  • -
    1600-8M0137080 GEAR HOUSING ASSEMBLY, Complete (Standard XX-Long) (1.75:1) Cambered Skeg
    GEAR HOUSING ASSEMBLY, Complete (Standard XX-Long) (1.75:1) Cambered Skeg
  • -
    1600-8M0137081 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation Long) (1.75:1) Cambered Skeg
    GEAR HOUSING ASSEMBLY, Complete (Counter Rotation Long) (1.75:1) Cambered Skeg
  • -
    1600-8M0137082 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation X-Long) (1.75:1) Cambered Skeg
    GEAR HOUSING ASSEMBLY, Complete (Counter Rotation X-Long) (1.75:1) Cambered Skeg
  • -
    1600-8M0137083 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation XX-Long) (1.75:1) Cambered Skeg
    GEAR HOUSING ASSEMBLY, Complete (Counter Rotation XX-Long) (1.75:1) Cambered Skeg
  • 1
    1600-8M0102795 GEAR HOUSING ASSEMBLY, Basic
    Standard Straight Skeg
    GEAR HOUSING ASSEMBLY, Basic
    Standard Straight Skeg
  • 1
    1600-8M0137073 GEAR HOUSING ASSEMBLY, Basic
    Standard Cambered Skeg
    GEAR HOUSING ASSEMBLY, Basic
    Standard Cambered Skeg
  • 1
    1600-8M0137075 GEAR HOUSING ASSEMBLY, Basic
    Counter Cambered Skeg
    GEAR HOUSING ASSEMBLY, Basic
    Counter Cambered Skeg
  • 2
    847635001 ANODE
    ANODE
  • 3
    12-841388 WASHER, (.410 x .810 x .050) Stainless Steel
    WASHER, (.410 x .810 x .050) Stainless Steel
  • 4
    10-8M0036047 SCREW, (.375 x .62)
    SCREW, (.375 x .62)
  • 5
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 6
    817275A1 HOUSING KIT, Water Pump
    HOUSING KIT, Water Pump
  • 7
    10-1993720 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • -
    47-8M0100526 IMPELLER REPAIR KIT
    IMPELLER REPAIR KIT
  • 8
    26-8M2014338 SEAL, Face
    SEAL, Face
  • 9
    47-43026Q02 IMPELLER
    IMPELLER
  • 10
    27-8172771 GASKET
    GASKET
  • 11
    8172761 FACEPLATE
    FACEPLATE
  • 12
    27-8M0112903 GASKET
    GASKET
  • 13
    28-8M0032833 KEY
    KEY
  • 14
    8M0046297 OIL SEAL ASSEMBLY
    OIL SEAL ASSEMBLY
  • 15
    NSS NOT SOLD SEPARATE, SEAL
    NOT SOLD SEPARATE, SEAL
  • 16
    25-896523 O-RING, (2.175 x .103)
    O-RING, (2.175 x .103)
  • 17
    53-880719 RING, Retaining
    RING, Retaining
  • 18
    8245191 RETAINER
    RETAINER
  • 19
    15-8M0063267 SHIM SET
    SHIM SET
  • 20
    31-36387A1 BEARING ASSEMBLY, Roller/Cup
    BEARING ASSEMBLY, Roller/Cup
  • 21
    31-48939A2 BEARING, Tapered Roller
    BEARING, Tapered Roller
  • 22
    15-8M0063268 SHIM SET
    SHIM SET
  • 23
    45-8M0103301 SHAFT, Drive, XX-Long
    SHAFT, Drive, XX-Long
  • 23
    48-8M0141337 SHAFT, Drive, X-Long
    SHAFT, Drive, X-Long
  • 23
    45-8M0141338 SHAFT, Drive, Long
    SHAFT, Drive, Long
  • 24
    31-8M0045676 BEARING, Roller
    BEARING, Roller
  • 25
    43-8M0078258 GEAR SET, 12/21(1.75:1), Forward and Pinion
    Standard Rotation
    GEAR SET, 12/21(1.75:1), Forward and Pinion
    Standard Rotation
  • 25
    43-8M0053120 GEAR SET, 12/21 (1.75:1), Forward and Pinion
    Counter Rotation
    GEAR SET, 12/21 (1.75:1), Forward and Pinion
    Counter Rotation
  • 26
    12-8M0062703 WASHER, Pinon nut
    WASHER, Pinon nut
  • 27
    11-8M0046636 NUT, Pinion
    NUT, Pinion
  • 28
    43585 COUPLING
    COUPLING
  • 29
    10-1993720 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 30
    8M0050809 GROMMET ASSEMBLY
    GROMMET ASSEMBLY
  • 31
    8M0047129 COVER ASSEMBLY
    COVER ASSEMBLY
  • 32
    25-896522 O-RING, (799 x .103)
    O-RING, (799 x .103)
  • 33
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 34
    53-8M0046563 RETAINING RING
    RETAINING RING
  • 35
    22-881866 FITTING
    FITTING
  • 36
    27-880729 GASKET
    GASKET
  • 37
    53-29641 E RING
    E RING
  • 38
    8M0050602 MAGNET
    MAGNET
  • 39
    8M0046104 SHIFT SHAFT
    SHIFT SHAFT
  • 40
    22-859732 PLUG
    1.75:1 Ratio
    PLUG
    1.75:1 Ratio
  • 41
    8M0094053 PLATE, Water Passage
    PLATE, Water Passage
  • 42
    27-8M0094054 GASKET, Water Passage
    GASKET, Water Passage
  • -
    8M0065064 SEAL KIT, Gearcase
    SEAL KIT, Gearcase
  • -
    8M0078858 WATER PUMP REPAIR KIT, Complete
    WATER PUMP REPAIR KIT, Complete
  • -
    25-8M0065072 WATER PUMP REPAIR KIT, Upper
    WATER PUMP REPAIR KIT, Upper
