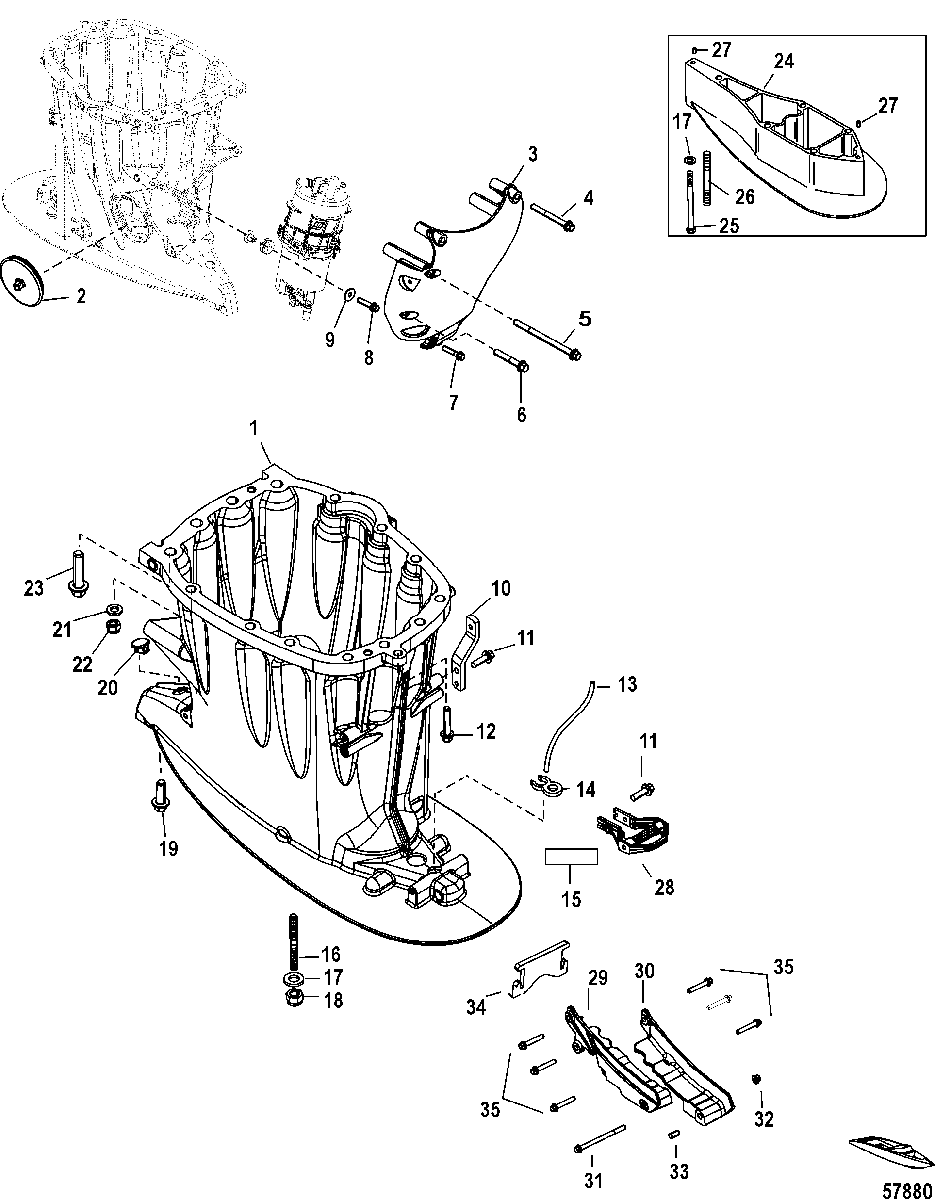

Driveshaft Housing для Mercury - 400 VERADO (4-Stroke)(6 CYL.) 2B141124 & Up

  • №
    Артикул
    Название
  • 1
    1500-8M0113286 HOUSING, Driveshaft Long, Black
    HOUSING, Driveshaft Long, Black
  • 1
    1500-8M0113287 HOUSING, Driveshaft X-Long, Black
    HOUSING, Driveshaft X-Long, Black
  • 2
    25-889568001 GROMMET
    GROMMET
  • 3
    889656T01 SHROUD
    SHROUD
  • 4
    10-8M0103818 SCREW, (M8 x 75)
    SCREW, (M8 x 75)
  • 5
    10-8M0103812 SCREW, (M8 x 120)
    SCREW, (M8 x 120)
  • 6
    10-8M0103816 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 7
    10-8M0103815 SCREW, (M8 x 40)
    SCREW, (M8 x 40)
  • 8
    10-8M0103814 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 9
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 10
    897784A01 BRACKET KIT, Upper Chap
    BRACKET KIT, Upper Chap
  • 11
    10-8M0103806 SCREW, (M6 x 20 MM) Stainless Steel
    SCREW, (M6 x 20 MM) Stainless Steel
  • 12
    10-8M0103813 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 13
    32-85944975 TUBING, (72.00 Inches Bulk), Cut to 44 Inches)
    TUBING, (72.00 Inches Bulk), Cut to 44 Inches)
  • 14
    889831001 RETAINER
    RETAINER
  • 15
    NSS NOT SOLD SEPARATE, Decal-Oil Drain
    NOT SOLD SEPARATE, Decal-Oil Drain
  • 16
    16-8M0070951 STUD, (M12 x 1.75 x 52)
    (Long/X-Long)
    STUD, (M12 x 1.75 x 52)
    (Long/X-Long)
  • 17
    12-856982 WASHER, (.500 x .810 x .090) Stainless Steel
    WASHER, (.500 x .810 x .090) Stainless Steel
  • 18
    11-896895 NUT, (M12)
    NUT, (M12)
  • 19
    10-8M0102995 SCREW, (M12)
    (Long/X-Long)
    SCREW, (M12)
    (Long/X-Long)
  • 20
    19-824928001 PLUG, Rubber
    PLUG, Rubber
  • 21
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 22
    11-884412 NUT
    NUT
  • 23
    10-8M0103825 SCREW, (M12 x 45)
    SCREW, (M12 x 45)
  • 24
    8M0105088 SPACER, Driveshaft Housing X-Long, Black
    (XX-Long)
    SPACER, Driveshaft Housing X-Long, Black
    (XX-Long)
  • 24
    8M0146468 SPACER, Driveshaft Housing X-Long, Silver
    (XX-Long)
    SPACER, Driveshaft Housing X-Long, Silver
    (XX-Long)
  • 25
    10-857137 SCREW, (M12 x 160)
    (XX-Long)
    SCREW, (M12 x 160)
    (XX-Long)
  • 26
    16-8M0008047 STUD, (M12 x 179)
    (XX-Long)
    STUD, (M12 x 179)
    (XX-Long)
  • 27
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    (XX-Long)
    PIN, Dowel - Without Hole (.375 x .625)
    (XX-Long)
  • 28
    891966006 BRACKET, Cowl
    (X-Long/XX-Long)
    BRACKET, Cowl
    (X-Long/XX-Long)
  • 29
    8M0103332 PLATES ASSEMBLY, Thrust, Long
    PLATES ASSEMBLY, Thrust, Long
  • 29
    8M0103333 PLATES ASSEMBLY, Thrust, X-Long
    PLATES ASSEMBLY, Thrust, X-Long
  • 30
    NSS NOT SOLD SEPARATE, Thrust Plate- Long
    NOT SOLD SEPARATE, Thrust Plate- Long
  • 30
    NSS NOT SOLD SEPARATE, Thrust Plate - X-Long
    NOT SOLD SEPARATE, Thrust Plate - X-Long
  • 31
    10-8M0090182 SCREW, (M8 X 120)
    SCREW, (M8 X 120)
  • 32
    11-8M0088686 NUT, (M8 X 1.25)
    NUT, (M8 X 1.25)
  • 33
    17-8M0095755 PIN, Dowel
    PIN, Dowel
  • 34
    8M0080471 BUMPER, Trim
    BUMPER, Trim
  • 35
    10-8M0103816 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
