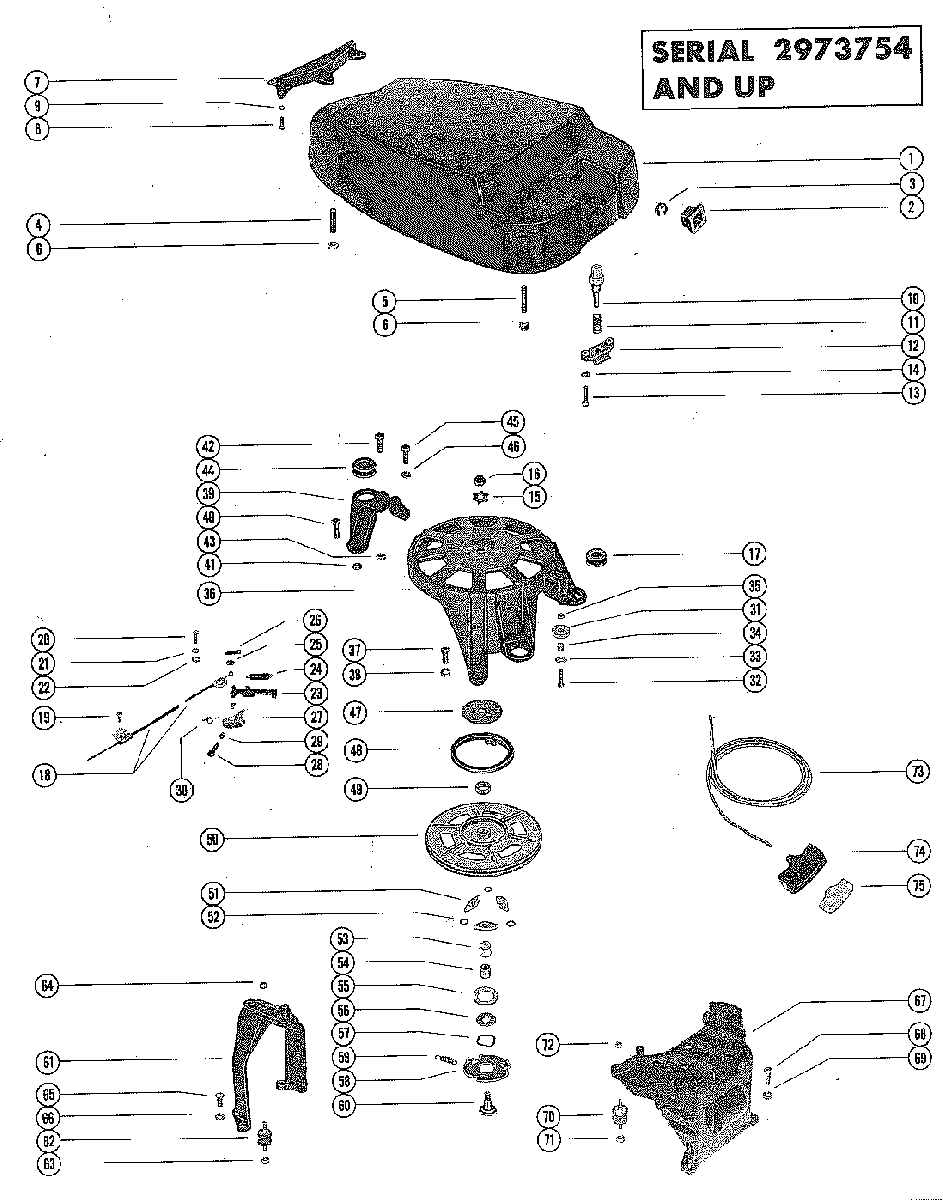

TOP COWL, SUPPORT BRACKETS AND STARTER ASSEMBLY для Mercury - 400 (2 CYL.) 2874704 THRU 3336257

  • №
    Артикул
    Название
  • 1
    2138-4413A2 TOP COWL ASSEMBLY
    SERIAL 00000000-02979678
    TOP COWL ASSEMBLY
    SERIAL 00000000-02979678
  • 2
    57821 INSERT, ROPE GUIDE - TOP COWL
    SERIAL 00000000-02979678
    INSERT, ROPE GUIDE - TOP COWL
    SERIAL 00000000-02979678
  • 4
    16-21391 STUD, TOP COWL TO SUPPORT BRACKET - REAR (1 1/2")
    SERIAL 00000000-02979678
    STUD, TOP COWL TO SUPPORT BRACKET - REAR (1 1/2")
    SERIAL 00000000-02979678
  • 5
    16-21553 STUD, TOP COWL TO SUPPORT BRACKET - FRONT (1 1/2")
    SERIAL 00000000-02979678
    STUD, TOP COWL TO SUPPORT BRACKET - FRONT (1 1/2")
    SERIAL 00000000-02979678
  • 1
    2138-4413A2 TOP COWL ASSEMBLY
    SERIAL 03043031-09999999
    TOP COWL ASSEMBLY
    SERIAL 03043031-09999999
  • 2
    58657 INSERT, ROPE GUIDE - TOP COWL
    SERIAL 03043031-09999999
    INSERT, ROPE GUIDE - TOP COWL
    SERIAL 03043031-09999999
  • 3
    53-72168 RING, RETAINING - ROPE GUIDE INSERT
    SERIAL 03043031-09999999
    RING, RETAINING - ROPE GUIDE INSERT
    SERIAL 03043031-09999999
  • 4
    16-21391 STUD, TOP COWL TO SUPPORT BRACKET - REAR (1 1/2")
    SERIAL 03043031-09999999
    STUD, TOP COWL TO SUPPORT BRACKET - REAR (1 1/2")
    SERIAL 03043031-09999999
  • 5
    16-21553 STUD, TOP COWL TO SUPPORT BRACKET - FRONT (1 1/2")
    SERIAL 03043031-09999999
    STUD, TOP COWL TO SUPPORT BRACKET - FRONT (1 1/2")
    SERIAL 03043031-09999999
  • 6
    11-82670911 NUT, TOP COWL STUD
    NUT, TOP COWL STUD
  • 7
    39609 SHIELD, REAR - TOP COWL
    SHIELD, REAR - TOP COWL
  • 8
    10-38055 SCREW, REAR SHIELD TO TOP COWL (5/8")
    SCREW, REAR SHIELD TO TOP COWL (5/8")
  • 9
    12-26014 WASHER, REAR SHIELD SCREW
    WASHER, REAR SHIELD SCREW
  • 10
    39619 BUTTON, FRONT COVER RELEASE - TOP COWL
    BUTTON, FRONT COVER RELEASE - TOP COWL
  • 11
    24-37911 SPRING, COMPRESSION - FRONT COVER RELEASE BUTTON
    SPRING, COMPRESSION - FRONT COVER RELEASE BUTTON
  • 12
    60865 CATCH, FRONT COVER - TOP COWL
    CATCH, FRONT COVER - TOP COWL
  • 13
    10-69011 SCREW, FRONT COVER CATCH TO TOP COWL (7/8")
    SCREW, FRONT COVER CATCH TO TOP COWL (7/8")
  • 14
    13-26996 LOCKWASHER, FRONT COVER CATCH SCREW
    LOCKWASHER, FRONT COVER CATCH SCREW
  • 15
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 16
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 17
    25-39597 GROMMET, STARTER HOUSING
    GROMMET, STARTER HOUSING
  • 18
    70970 CABLE ASSEMBLY, INTERLOCK
    CABLE ASSEMBLY, INTERLOCK
  • 19
    10-32228 SCREW, INTERLOCK CABLE TO EXHAUST PLATE (5/8")
    SCREW, INTERLOCK CABLE TO EXHAUST PLATE (5/8")
  • 20
    10-69022 SCREW, INTERLOCK CABLE TO STARTER HOUSING (1/2")
    SCREW, INTERLOCK CABLE TO STARTER HOUSING (1/2")
  • 21
    13-27660 LOCKWASHER, INTERLOCK CABLE SCREW
    LOCKWASHER, INTERLOCK CABLE SCREW
  • 22
    12-26013 WASHER, INTERLOCK CABLE SCREW
    WASHER, INTERLOCK CABLE SCREW
  • 23
    57236 CAM, SLIDING - STARTER HOUSING
    CAM, SLIDING - STARTER HOUSING
  • 24
    24-70086 SPRING, SLIDING CAM
    SPRING, SLIDING CAM
  • 25
    12-37998 WASHER, INTERLOCK CABLE
    WASHER, INTERLOCK CABLE
  • 26
    18-26953 COTTER PIN, INTERLOCK CABLE TO SLIDING CAM
    COTTER PIN, INTERLOCK CABLE TO SLIDING CAM
  • 27
    65757A1 TOGGLE, STARTER INTERLOCK
    TOGGLE, STARTER INTERLOCK
  • 28
    10-57249 SCREW, TOGGLE TO STARTER HOUSING
    SCREW, TOGGLE TO STARTER HOUSING
  • 29
    23-26856 BUSHING, TOGGLE SCREW
    BUSHING, TOGGLE SCREW
  • 30
    24-57279 SPRING, TOGGLE SCREW
    SPRING, TOGGLE SCREW
  • 31
    55860 PULLEY, STARTER CABLE
    PULLEY, STARTER CABLE
  • 32
    10-45210 SCREW, PULLEY TO STARTER HOUSING (1 1/4")
    SCREW, PULLEY TO STARTER HOUSING (1 1/4")
  • 33
    12-22887 WASHER, PULLEY SCREW
    WASHER, PULLEY SCREW
  • 34
    23-309772 SPACER, PULLEY SCREW
    SPACER, PULLEY SCREW
  • 35
    11-24656 NUT, PULLEY SCREW
    NUT, PULLEY SCREW
  • 36
    76079A8 HOUSING, STARTER
    HOUSING, STARTER
  • 37
    10-37562 SCREW, HOUSING TO CRANKCASE (1")
    SCREW, HOUSING TO CRANKCASE (1")
  • 38
    13-26993 LOCKWASHER, STARTER HOUSING SCREW
    LOCKWASHER, STARTER HOUSING SCREW
  • 39
    60825 BRACKET, LIMIT STOP - REAR
    SERIAL 00000000-03122533
    BRACKET, LIMIT STOP - REAR
    SERIAL 00000000-03122533
  • 39
    60825 BRACKET, LIMIT STOP - REAR
    SERIAL 03122534-09999999
    BRACKET, LIMIT STOP - REAR
    SERIAL 03122534-09999999
  • 40
    10-20639 SCREW, LIMIT STOP BRACKET TO CYLINDER BLOCK (1 1/8")
    SCREW, LIMIT STOP BRACKET TO CYLINDER BLOCK (1 1/8")
  • 41
    11-29250 NUT, LIMIT STOP BRACKET SCREW
    NUT, LIMIT STOP BRACKET SCREW
  • 42
    10-26065 SCREW, STARTER HOUSING TO LIMIT STOP BRACKET - REAR (1")
    SCREW, STARTER HOUSING TO LIMIT STOP BRACKET - REAR (1")
  • 43
    11-826709111 NUT, STARTER HOUSING SCREW
    NUT, STARTER HOUSING SCREW
  • 44
    25-39597 GROMMET, LIMIT STOP BRACKET
    GROMMET, LIMIT STOP BRACKET
  • 45
    10-37562 SCREW, LIMIT STOP BRACKET TO CYLINDER BLOCK (1")
    SCREW, LIMIT STOP BRACKET TO CYLINDER BLOCK (1")
  • 46
    13-26993 LOCKWASHER, LIMIT STOP BRACKET SCREW
    LOCKWASHER, LIMIT STOP BRACKET SCREW
  • 47
    39835 RETAINER, STARTER REWIND
    RETAINER, STARTER REWIND
  • 48
    24-39502T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 49
    23-28912 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 50
    76053A1 STARTER SHEAVE ASSEMBLY
    STARTER SHEAVE ASSEMBLY
  • 51
    30596 PAWL, STARTER
    PAWL, STARTER
  • 52
    13-36206 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
  • 53
    23-28919 BUSHING, NYLON - SHEAVE SHAFT SPACER
    BUSHING, NYLON - SHEAVE SHAFT SPACER
  • 54
    23-61005 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 55
    39840 RETAINER, WAVE WASHER
    RETAINER, WAVE WASHER
  • 56
    12-57837 WASHER, WAVE WASHER RETAINER
    WASHER, WAVE WASHER RETAINER
  • 57
    13-20160 WASHER, WAVE - RETAINER TENSION
    WASHER, WAVE - RETAINER TENSION
  • 58
    66845 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
  • 59
    24-26068 SPRING, RETAINER PLATE TO STARTER SHEAVE
    SPRING, RETAINER PLATE TO STARTER SHEAVE
  • 60
    45477A1 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 61
    39173 BRACKET, SUPPORT - TOP COWL (REAR)
    BRACKET, SUPPORT - TOP COWL (REAR)
  • 62
    90435 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 63
    11-8267089 NUT, RUBBER MOUNT OT CYLINDER BLOCK COVER (LOWER)
    NUT, RUBBER MOUNT OT CYLINDER BLOCK COVER (LOWER)
  • 64
    11-826709109 NUT, RUBBER MOUNT OT REAR SUPPORT BRACKET (UPPER)
    NUT, RUBBER MOUNT OT REAR SUPPORT BRACKET (UPPER)
  • 65
    10-37562 SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1")
    SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1")
  • 66
    13-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREW
    LOCKWASHER, REAR SUPPORT BRACKET SCREW
  • 67
    67323 BRACKET, SUPPORT - TOP COWL (FRONT)
    BRACKET, SUPPORT - TOP COWL (FRONT)
  • 68
    10-37562 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
    SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
  • 69
    13-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREW
    LOCKWASHER, FRONT SUPPORT BRACKET SCREW
  • 70
    90435 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 71
    11-8267089 NUT, RUBBER MOUNT TO CRANKCASE (LOWER)
    NUT, RUBBER MOUNT TO CRANKCASE (LOWER)
  • 72
    11-826709109 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET (UPPER)
    NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET (UPPER)
  • 73
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 74
    30782 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 75
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
