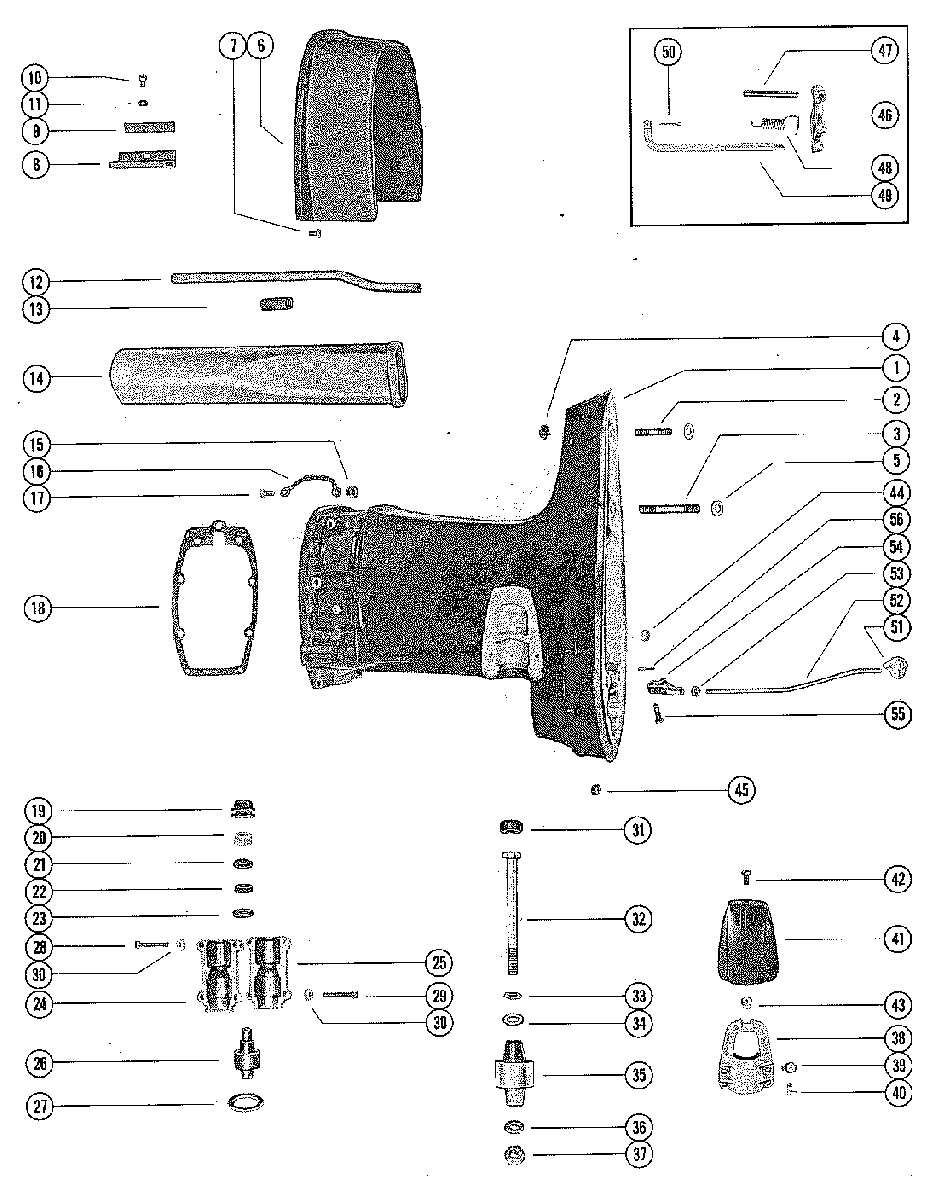

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 400 (2 CYL.) 2874704 THRU 3336257

  • №
    Артикул
    Название
  • 1
    1554-4947A1 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
  • 1
    1564-4948A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
  • 2
    16-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
  • 3
    16-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
  • 4
    19-824928001 PLUG, PLASTIC - WATER PICK-UP HOLE
    PLUG, PLASTIC - WATER PICK-UP HOLE
  • 5
    12-45176 WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDS
    WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDS
  • 6
    60769 COVER, TRIM - DRIVE SHAFT HOUSING
    COVER, TRIM - DRIVE SHAFT HOUSING
  • 7
    10-37571 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
  • 8
    39558 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
    SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
  • 9
    39557 STRIP, RETAINING - TRIM COVER SEAL
    STRIP, RETAINING - TRIM COVER SEAL
  • 10
    10-48408 SCREW, STRIP AND SEAL TO DRIVE SHAFT HOUSING (1/2")
    SCREW, STRIP AND SEAL TO DRIVE SHAFT HOUSING (1/2")
  • 11
    12-30164 WASHER, RETAINING STRIP SCREW
    WASHER, RETAINING STRIP SCREW
  • 12
    32-37727 TUBE, WATER OUTLET (SHORT SHAFT)
    TUBE, WATER OUTLET (SHORT SHAFT)
  • 12
    32-45679 TUBE, WATER OUTLET (LONG SHAFT)
    TUBE, WATER OUTLET (LONG SHAFT)
  • 13
    23-23651 SLEEVE, RUBBER - WATER OUTLET TUBE
    SLEEVE, RUBBER - WATER OUTLET TUBE
  • 14
    695431 TUBE, EXHAUST (SHORT SHAFT)
    TUBE, EXHAUST (SHORT SHAFT)
  • 14
    695441 TUBE, EXHAUST (LONG SHAFT)
    TUBE, EXHAUST (LONG SHAFT)
  • 15
    11-862902 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 16
    46933A2 GROUND STRAP, BOTTOM COWL TO DRIVE SHAFT HOUSING
    GROUND STRAP, BOTTOM COWL TO DRIVE SHAFT HOUSING
  • 17
    46933A2 SCREW, GROUND STRAP ATTACHING
    SCREW, GROUND STRAP ATTACHING
  • 18
    27-385011 GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
  • 19
    25305 CAP, RUBBER - UPPER MOUNT BOLT NUT
    CAP, RUBBER - UPPER MOUNT BOLT NUT
  • 20
    11-23161 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 21
    12-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)
    WASHER, UPPER MOUNT BOLT (3/8 ID)
  • 22
    12-30521 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 23
    12-30520 WASHER, UPPER MOUNT BOLT (37/64 ID)
    WASHER, UPPER MOUNT BOLT (37/64 ID)
  • 24
    79680A1 COVER, UPPER MOUNT - OUTSIDE HALF
    COVER, UPPER MOUNT - OUTSIDE HALF
  • 25
    79680A1 COVER, UPPER MOUNT - INSIDE HALF
    COVER, UPPER MOUNT - INSIDE HALF
  • 26
    75301 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 27
    24929 PACKING, "U" CUP - UPPER MOUNT COVERS
    PACKING, "U" CUP - UPPER MOUNT COVERS
  • 28
    10-37941 SCREW, UPPER MOUNT COVER - REAR (1 3/4")
    SCREW, UPPER MOUNT COVER - REAR (1 3/4")
  • 29
    10-49987 SCREW, UPPER MOUNT COVER - FRONT (1 1/2")
    SCREW, UPPER MOUNT COVER - FRONT (1 1/2")
  • 30
    11-35888 NUT, UPPER MOUNT COVER FASTENING SCREW
    NUT, UPPER MOUNT COVER FASTENING SCREW
  • 31
    25067 BUMPER, RUBBER - LOWER MOUNT SCREW
    BUMPER, RUBBER - LOWER MOUNT SCREW
  • 32
    10-75284 SCREW, LOWER MOUNT (5 1/2")
    SCREW, LOWER MOUNT (5 1/2")
  • 33
    12-28051 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 34
    12-28053 WASHER, RUBBER - LOWER MOUNT SCREW
    WASHER, RUBBER - LOWER MOUNT SCREW
  • 35
    75302T1 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 36
    12-30119 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 37
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 38
    69592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
    CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
  • 39
    10-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
    SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
  • 40
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 41
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 42
    10-29722 SCREW, COVER TO LOWER CLAMP (5/8")
    SCREW, COVER TO LOWER CLAMP (5/8")
  • 43
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 44
    11-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 45
    22-390721 PLUG, GREASE - REVERSE LOCK HOLE
    SERIAL 00000000-02979678
    PLUG, GREASE - REVERSE LOCK HOLE
    SERIAL 00000000-02979678
  • 46
    52920 LEVER, REVERSE LOCK
    SERIAL 00000000-02979678
    LEVER, REVERSE LOCK
    SERIAL 00000000-02979678
  • 47
    17-24887 PIN, REVERSE LOCK LEVER
    SERIAL 00000000-02979678
    PIN, REVERSE LOCK LEVER
    SERIAL 00000000-02979678
  • 48
    24-25122 SPRING, TENSION - PUSH ROD
    SERIAL 00000000-02979678
    SPRING, TENSION - PUSH ROD
    SERIAL 00000000-02979678
  • 49
    32102 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
    SERIAL 00000000-02979678
    ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
    SERIAL 00000000-02979678
  • 49
    45788 ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    SERIAL 00000000-02979678
    ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    SERIAL 00000000-02979678
  • 50
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    SERIAL 00000000-02979678
    COTTER PIN, PUSH ROD TO REVERSE LOCK
    SERIAL 00000000-02979678
  • 51
    52917 GUIDE, PUSH ROD SERIAL #3043031 AND UP
    SERIAL 03043031-09999999
    GUIDE, PUSH ROD SERIAL #3043031 AND UP
    SERIAL 03043031-09999999
  • 52
    59721 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
    SERIAL 03043031-09999999
    ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
    SERIAL 03043031-09999999
  • 52
    59720 ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    SERIAL 03043031-09999999
    ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    SERIAL 03043031-09999999
  • 53
    11-60049 NUT, JAM - PUSH ROD
    SERIAL 03043031-09999999
    NUT, JAM - PUSH ROD
    SERIAL 03043031-09999999
  • 54
    59722 ROD END, PUSH ROD
    SERIAL 03043031-09999999
    ROD END, PUSH ROD
    SERIAL 03043031-09999999
  • 55
    17-72524 PIN, REVERSE LOCK LEVER
    SERIAL 03043031-09999999
    PIN, REVERSE LOCK LEVER
    SERIAL 03043031-09999999
  • 56
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    SERIAL 03043031-09999999
    COTTER PIN, PUSH ROD TO REVERSE LOCK
    SERIAL 03043031-09999999
