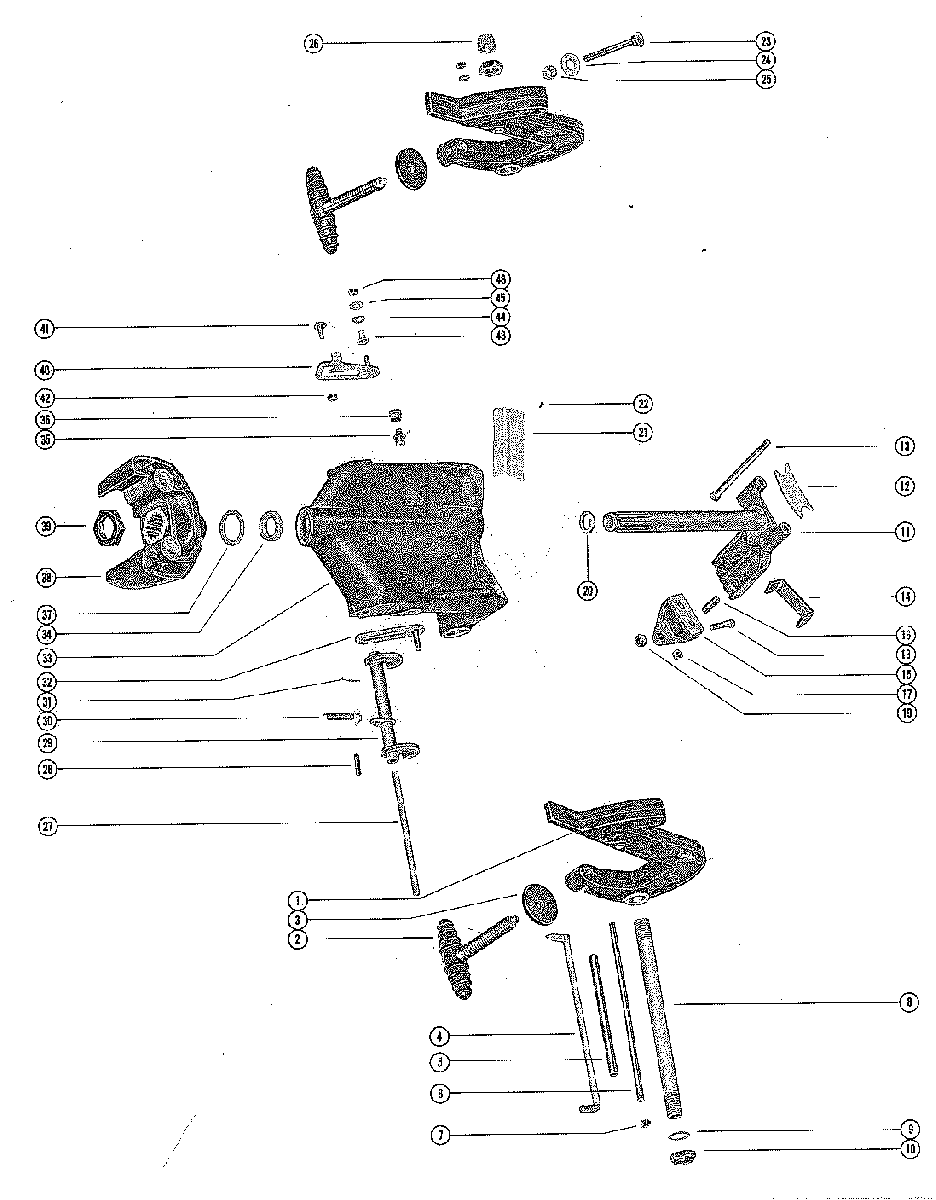

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 400 (2 CYL.) 2874704 THRU 3336257

  • №
    Артикул
    Название
  • 1
    1427-3263A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    22477A4 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 5
    23-59623 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 6
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 7
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 8
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 9
    12-52864 WASHER, CLAMP BRACKET TO SWIVEL BRACKET
    WASHER, CLAMP BRACKET TO SWIVEL BRACKET
  • 10
    11-858869 NUT, TILT TUBE
    NUT, TILT TUBE
  • 11
    74316A2 STEERING ARM AND SWIVEL PIN ASSEMBLY (SHORT SHAFT)
    STEERING ARM AND SWIVEL PIN ASSEMBLY (SHORT SHAFT)
  • 11
    74316A1 STEERING ARM AND SWIVEL PIN ASSEMBLY (LONG SHAFT)
    STEERING ARM AND SWIVEL PIN ASSEMBLY (LONG SHAFT)
  • 12
    30711 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 13
    10-33986 SCREW, UPPER MOUNT TO STEERING ARM
    SCREW, UPPER MOUNT TO STEERING ARM
  • 14
    62297 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 15
    76535T BRACKET, REMOTE STEERING
    BRACKET, REMOTE STEERING
  • 16
    16-39781 STUD, REMOTE STEERING BRACKET TO STEERING ARM
    STUD, REMOTE STEERING BRACKET TO STEERING ARM
  • 17
    11-8M0042636 NUT, REMOTE STEERING BRACKET STUD
    NUT, REMOTE STEERING BRACKET STUD
  • 18
    10-31830 SCREW, RIDE-GUIDE KIT TO STEERING ARM (1 3/4")
    SCREW, RIDE-GUIDE KIT TO STEERING ARM (1 3/4")
  • 19
    11-8M0042636 NUT, RIDE-GUIDE KIT SCREW
    NUT, RIDE-GUIDE KIT SCREW
  • 20
    12-52865 WASHER, SWIVEL PIN
    WASHER, SWIVEL PIN
  • 21
    38-56267 SERIAL PLATE
    SERIAL PLATE
  • 22
    10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 23
    10-26483 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
  • 24
    12-67981 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 25
    11-26484 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 26
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 27
    56349 SHAFT, REVERSE LOCK TO SWIVEL BRACKET
    SHAFT, REVERSE LOCK TO SWIVEL BRACKET
  • 28
    17-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHING
    ROLL PIN, REVERSE LOCK SPRING ATTACHING
  • 29
    26903A2 REVERSE LOCK ASSEMBLY
    SERIAL 00000000-02979678
    REVERSE LOCK ASSEMBLY
    SERIAL 00000000-02979678
  • 29
    87430 REVERSE LOCK ASSEMBLY
    SERIAL 03043031-09999999
    REVERSE LOCK ASSEMBLY
    SERIAL 03043031-09999999
  • 30
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 31
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 32
    47912A2 LEVER ASSEMBLY, TILT STOP - STARBOARD SIDE
    LEVER ASSEMBLY, TILT STOP - STARBOARD SIDE
  • 33
    1481-7656A1 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 33
    1480-7655A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 34
    26-32911 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 35
    22-69059 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 36
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 37
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
  • 37
    12-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
  • 38
    77416T1 YOKE, BOTTOM
    YOKE, BOTTOM
  • 39
    11-71956 NUT, RETAINING - SWIVEL PIN
    NUT, RETAINING - SWIVEL PIN
  • 40
    47913A2 LEVER ASSEMBLY, TILT LOCK - PORT SIDE
    LEVER ASSEMBLY, TILT LOCK - PORT SIDE
  • 41
    10-69087 SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
    SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
  • 42
    11-29250 NUT, TILT LOCK AND STOP LEVER SCREW
    NUT, TILT LOCK AND STOP LEVER SCREW
  • 43
    23-47911 BUSHING, TILT LOCK AND STOP LEVER
    BUSHING, TILT LOCK AND STOP LEVER
  • 44
    13-34632 WASHER, WAVE - TILT LOCK AND STOP LEVER
    WASHER, WAVE - TILT LOCK AND STOP LEVER
  • 45
    12-56720 WASHER, TILT LOCK AND STOP LEVER
    WASHER, TILT LOCK AND STOP LEVER
  • 46
    11-29250 NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
    NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
