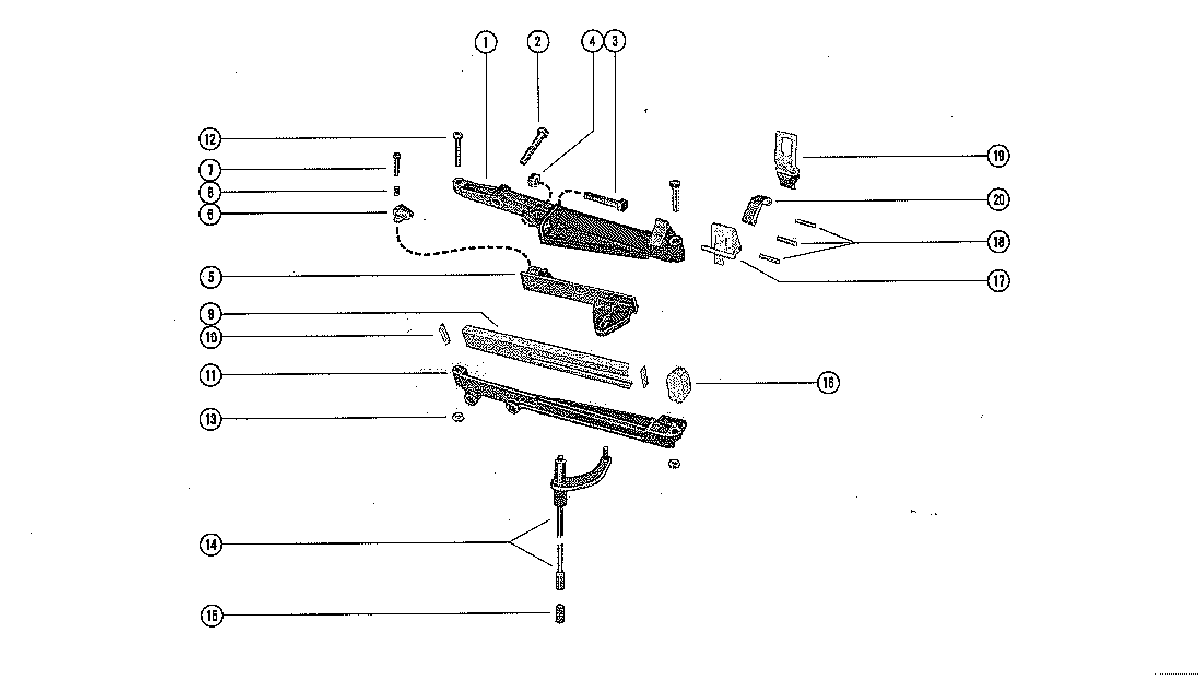

SHIFT CONTROL LINKAGE для Mercury - 400 (2 CYL.) 2874704 THRU 3336257

  • №
    Артикул
    Название
  • 1
    87876A1 BRACKET, SHIFT ANCHOR - UPPER
    BRACKET, SHIFT ANCHOR - UPPER
  • 2
    10-74824 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1 1/4")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1 1/4")
  • 2
    10-815549 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (2")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (2")
  • 3
    10-69096 SCREW, UPPER ANCHOR BRACKET TO CRANKCASE (1 3/4")
    SCREW, UPPER ANCHOR BRACKET TO CRANKCASE (1 3/4")
  • 4
    11-29250 NUT, UPPER ANCHOR BRACKET SCREW
    NUT, UPPER ANCHOR BRACKET SCREW
  • 5
    87874 SLIDE, SHIFT ACTUATING
    SLIDE, SHIFT ACTUATING
  • 6
    56193 LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)
    LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)
  • 7
    10-39620 SCREW, LATCH TO SHIFT ACTUATING SLIDE
    SCREW, LATCH TO SHIFT ACTUATING SLIDE
  • 8
    24-27087 SPRING, COMPRESSION - LATCH SCREW
    SPRING, COMPRESSION - LATCH SCREW
  • 9
    39516 SLIDE, NYLON - ANCHOR BRACKET (SHIFT ACTUATING SLIDE)
    SLIDE, NYLON - ANCHOR BRACKET (SHIFT ACTUATING SLIDE)
  • 10
    39515 END CAP, NYLON - ANCHOR BRACKET SLIDE
    END CAP, NYLON - ANCHOR BRACKET SLIDE
  • 11
    87876A1 BRACKET, SHIFT ANCHOR - LOWER
    BRACKET, SHIFT ANCHOR - LOWER
  • 12
    10-20012 SCREW, UPPER ANCHOR BRACKET TO LOWER ANCHOR BRACKET (1 5/8")
    SCREW, UPPER ANCHOR BRACKET TO LOWER ANCHOR BRACKET (1 5/8")
  • 13
    11-826709109 NUT, UPPER ANCHOR BRACKET SCREW
    NUT, UPPER ANCHOR BRACKET SCREW
  • 14
    59110A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SERIAL 00000000-02880153
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SERIAL 00000000-02880153
  • 14
    59110A1 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 00000000-02880153
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 00000000-02880153
  • 14
    59110A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SERIAL 02973754-09999999
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SERIAL 02973754-09999999
  • 14
    59110A1 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 02973754-09999999
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 02973754-09999999
  • 15
    93960A1 COUPLING, UPPER SHIFT SHAFT
    COUPLING, UPPER SHIFT SHAFT
  • 16
    39519 CUP, RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL)
    CUP, RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL)
  • 17
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING (UPPER ANCHOR BRACKET)
    LEVER, NYLON - SHIFT CABLE LOCKING (UPPER ANCHOR BRACKET)
  • 18
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    PIN, LOCKING LEVER AND COVER FASTENING
  • 19
    39667 COVER, NYLON - SHIFT CABLE
    COVER, NYLON - SHIFT CABLE
  • 20
    39536 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
