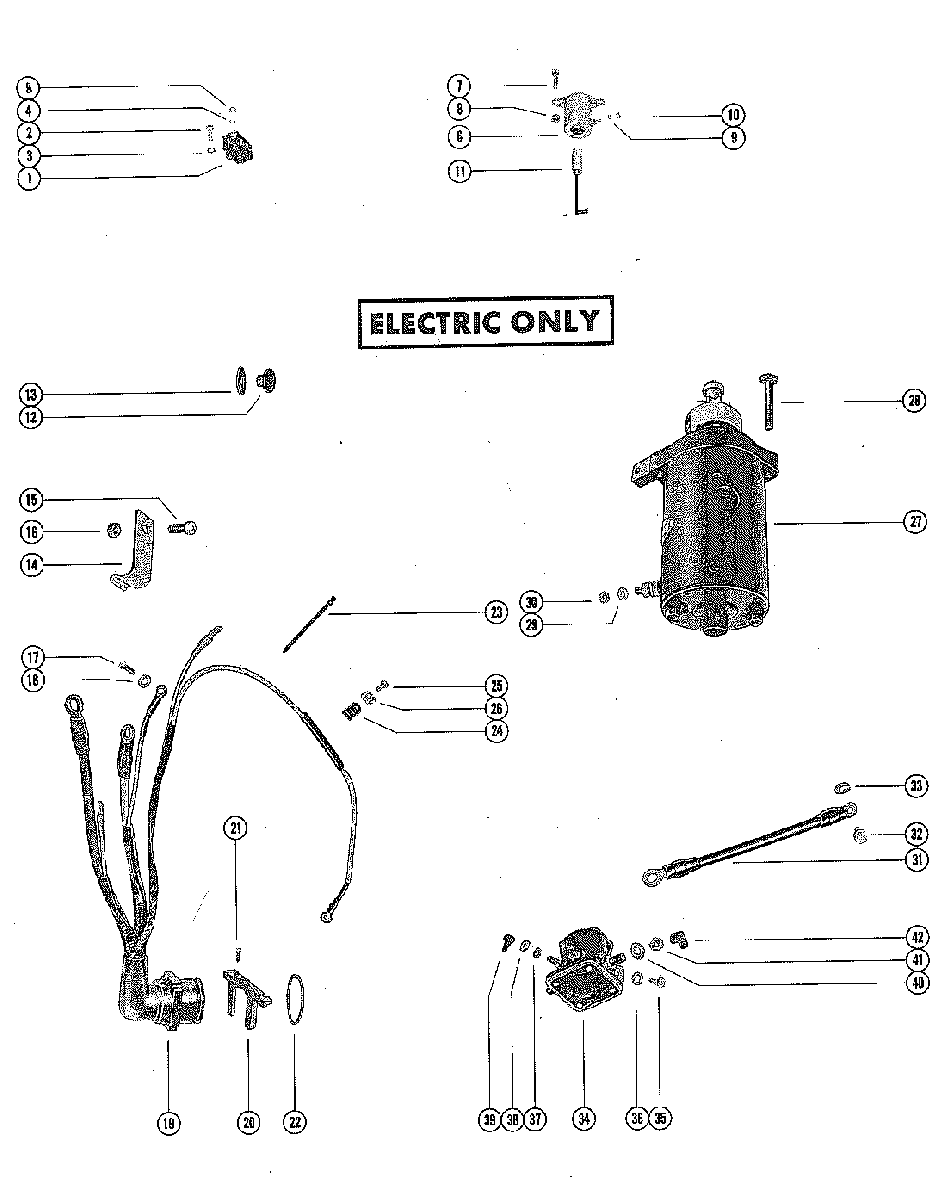

STARTER MOTOR, RECTIFIER AND WIRING HARNESS для Mercury - 400 (2 CYL.) 2874704 THRU 3336257
-
№АртикулНазвание
-
157580A1 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
210-76621 SCREW, RECTIFIER TO BOTTOM COWL (7/8")SCREW, RECTIFIER TO BOTTOM COWL (7/8")
-
313-22773 LOCKWASHER, RECTIFIER SCREWLOCKWASHER, RECTIFIER SCREW
-
413-26996 LOCKWASHER, RECTIFIER TERMINAL (#10)LOCKWASHER, RECTIFIER TERMINAL (#10)
-
511-45076 NUT, RECTIFIER TERMINAL (10-32)NUT, RECTIFIER TERMINAL (10-32)
-
689-889274 CHOKE SOLENOID ASSEMBLYCHOKE SOLENOID ASSEMBLY
-
710-26065 SCREW, CHOKE SOLENOID TO FRONT SUPPORT BRACKET (1")SCREW, CHOKE SOLENOID TO FRONT SUPPORT BRACKET (1")
-
811-29250 NUT, CHOKE SOLENOID SCREWNUT, CHOKE SOLENOID SCREW
-
913-26996 LOCKWASHER, CHOKE SOLENOID TERMINALLOCKWASHER, CHOKE SOLENOID TERMINAL
-
1011-45076 NUT, CHOKE SOLENOID TERMINALNUT, CHOKE SOLENOID TERMINAL
-
1189008A2 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
1219-35827 PLUG, BOTTOM COWLPLUG, BOTTOM COWL
-
1311-30428 FASTENER, PLUG TO BOTTOM COWLFASTENER, PLUG TO BOTTOM COWL
-
1434228 SUPPORT, EXTERNAL WIRING HARNESSSUPPORT, EXTERNAL WIRING HARNESS
-
--52907 INSULATOR, SUPPORT TO BOTTOM COWLINSULATOR, SUPPORT TO BOTTOM COWL
-
1510-31163 SCREW, SUPPORT TO BOTTOM COWLSCREW, SUPPORT TO BOTTOM COWL
-
1611-20184 NUT, SUPPORT FASTENING SCREWNUT, SUPPORT FASTENING SCREW
-
1710-98256 SCREW, WIRING HARNESS GROUND TO BOTTOM COWL (1/2")SCREW, WIRING HARNESS GROUND TO BOTTOM COWL (1/2")
-
1813-24669 LOCKWASHER, WIRING HARNESS GROUND SCREWLOCKWASHER, WIRING HARNESS GROUND SCREW
-
1956370 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
2054-76368 CLAMP, WIRING HARNESS ATTACHINGCLAMP, WIRING HARNESS ATTACHING
-
2110-20189 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (3/4")SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (3/4")
-
2224-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
2361990 STA-STRAP, WIRING HARNESSSTA-STRAP, WIRING HARNESS
-
2454-26550 CLAMP, WIRING HARNESS (5/16")CLAMP, WIRING HARNESS (5/16")
-
2454-22740 CLAMP, WIRING HARNESS (3/8")CLAMP, WIRING HARNESS (3/8")
-
2510-62568 SCREW. WIRING HARNESS CLAMP ATTACHINGSCREW. WIRING HARNESS CLAMP ATTACHING
-
268M0084613 "D" WASHER, WIRING HARNESS CLAMP SCREW"D" WASHER, WIRING HARNESS CLAMP SCREW
-
2750-55601A2 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2810-35213 SCREW, STARTER MOTOR TO CRANKCASE (1 5/8")SCREW, STARTER MOTOR TO CRANKCASE (1 5/8")
-
2913-26992 LOCKWASHER, CABLE TO STARTER MOTOR NUTLOCKWASHER, CABLE TO STARTER MOTOR NUT
-
3011-20890 NUT, CABLE TO STARTER MOTORNUT, CABLE TO STARTER MOTOR
-
3184-93389A3 CABLE, STARTER MOTOR TO STARTER SOLENOIDCABLE, STARTER MOTOR TO STARTER SOLENOID
-
3210-69035 SCREW, GROUND WIRE TO STARTER MOTOR (5/8")SCREW, GROUND WIRE TO STARTER MOTOR (5/8")
-
3313-26992 LOCKWASHER, GROUND WIRE FASTENING SCREWLOCKWASHER, GROUND WIRE FASTENING SCREW
-
3425661T1 SOLENOID, STARTERSOLENOID, STARTER
-
3510-69028 SCREW, STARTER SOLENOID TO FRONT SUPPORT BRACKET (3/8")SCREW, STARTER SOLENOID TO FRONT SUPPORT BRACKET (3/8")
-
3613-26992 WASHER, STARTER SOLENOID SCREWWASHER, STARTER SOLENOID SCREW
-
3713-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
3811-68219 NUT, STARTER SOLENOID TERMINAL (#10)NUT, STARTER SOLENOID TERMINAL (#10)
-
3938938 BOOT, RUBBER - STARTER SOLENOID TERMINAL (SMALL)BOOT, RUBBER - STARTER SOLENOID TERMINAL (SMALL)
-
4013-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16)LOCKWASHER, STARTER SOLENOID TERMINAL (5/16)
-
4111-22053 NUT, STARTER SOLENOID TERMINAL (5/16)NUT, STARTER SOLENOID TERMINAL (5/16)
-
4246265 BOOT, RUBBER - STARTER SOLENOID TERMINAL (LARGE)BOOT, RUBBER - STARTER SOLENOID TERMINAL (LARGE)
